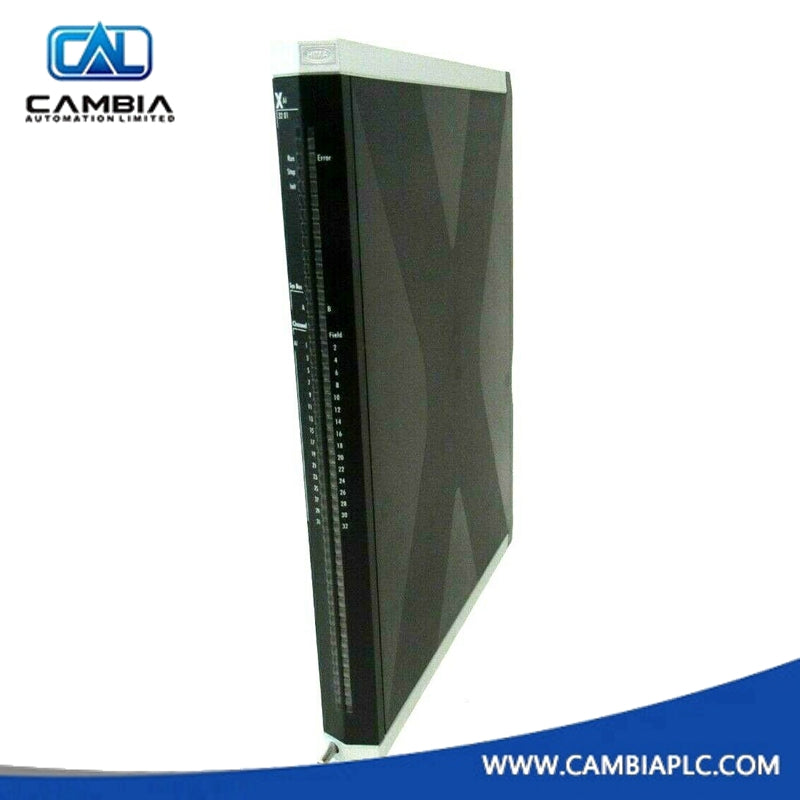

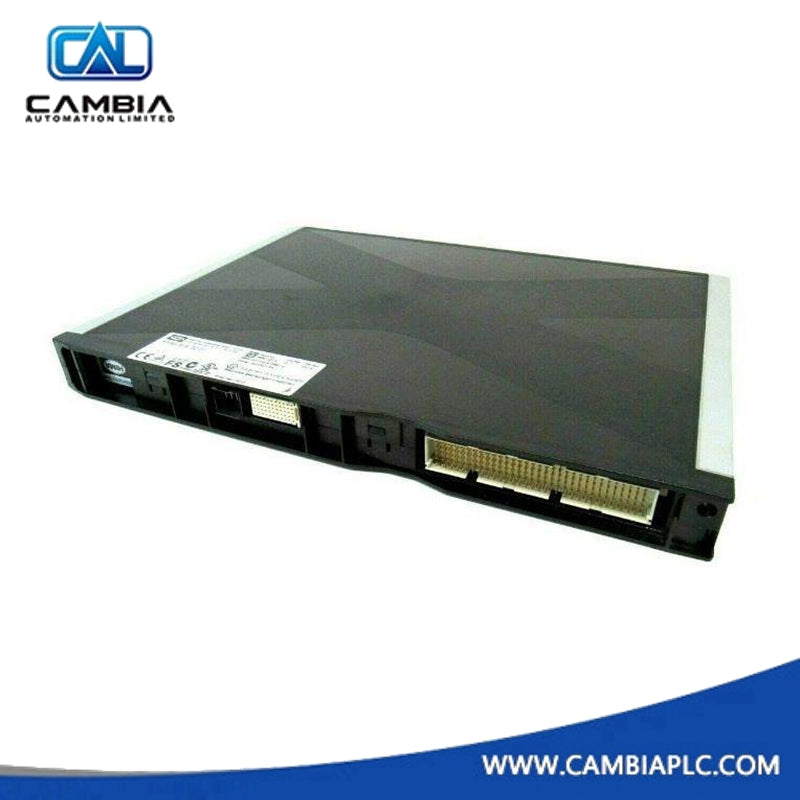

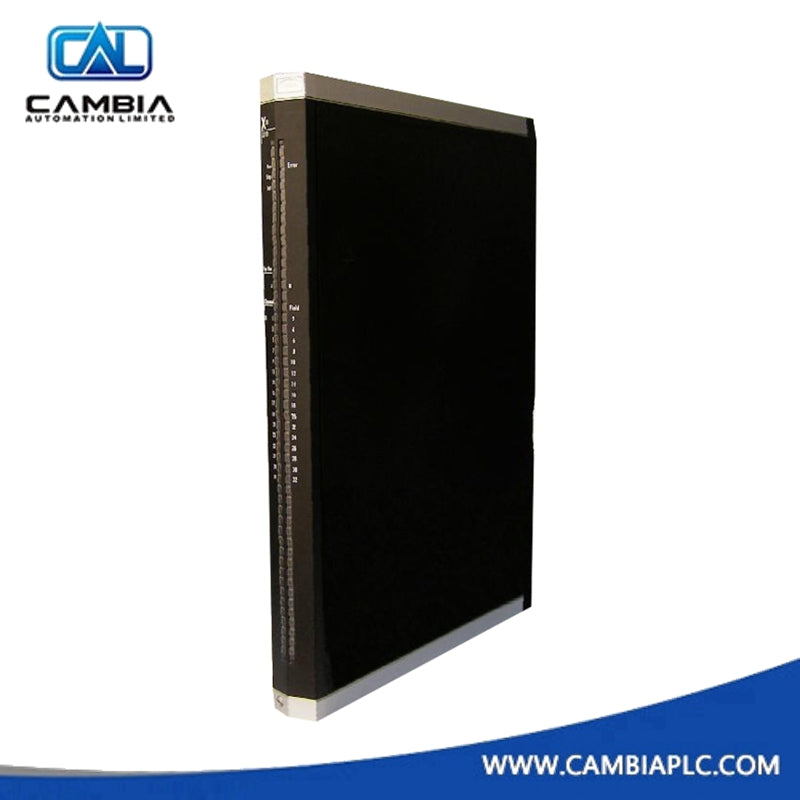

HIMA X-AI 32 01 Analog Input Module
In stock, ready to ship
Manufacturer: HIMA
Product No.: X-AI 32 01
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The X-AI 32 01 is an analog input module designed for use in the programmable electronic system (PES) HIMax. This module can be installed in any base plate slot, except those reserved for system bus modules. For detailed installation and configuration instructions, refer to the System Manual (HI 801 001 E).
It supports the evaluation of up to 32 analog input signals and is TÜV-certified for safety-related applications, meeting the highest standards such as SIL 3 (IEC 61508, IEC 61511, and IEC 62061), Cat. 4, and PL e (EN ISO 13849-1).
For more information on testing and certification standards, consult the HIMax Safety Manual (HI 801 003 E).
Product Data
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 VDC, -15 % ... +20 %, rP ≤ 5 %, SELV, PELV |
| Current Input (Module) | Minimum 500 mA (without channels/transmitter supplies); Maximum 1.5 A (if transmitter supplies are short-circuited) |
| Current Input per Channel | Minimum 0 mA (without transmitter supply); Minimum 30 mA (with transmitter supply) |
| Operating Temperature | 0 ... +60 °C |
| Storage Temperature | -40 ... +85 °C |
| Humidity | Max. 95 % relative humidity, non-condensing |
| Type of Protection | IP20 |
| Dimensions (H x W x D) | 310 x 29.2 x 230 mm |
| Weight | 1.4 kg |
Key Features & Benefits
-
Up to 32 Input Signals: Supports the evaluation of 32 analog input signals, ideal for a wide range of industrial applications.
-
Safety Certification: TÜV-certified up to SIL 3, Cat. 4, and PL e for use in safety-critical applications.
-
Wide Operating Range: The module operates within a temperature range of 0 ... +60 °C and is suitable for use in various environments.
-
Compact Design: The 310 x 29.2 x 230 mm dimensions make it easy to integrate into existing systems while maintaining efficient space usage.
