GE

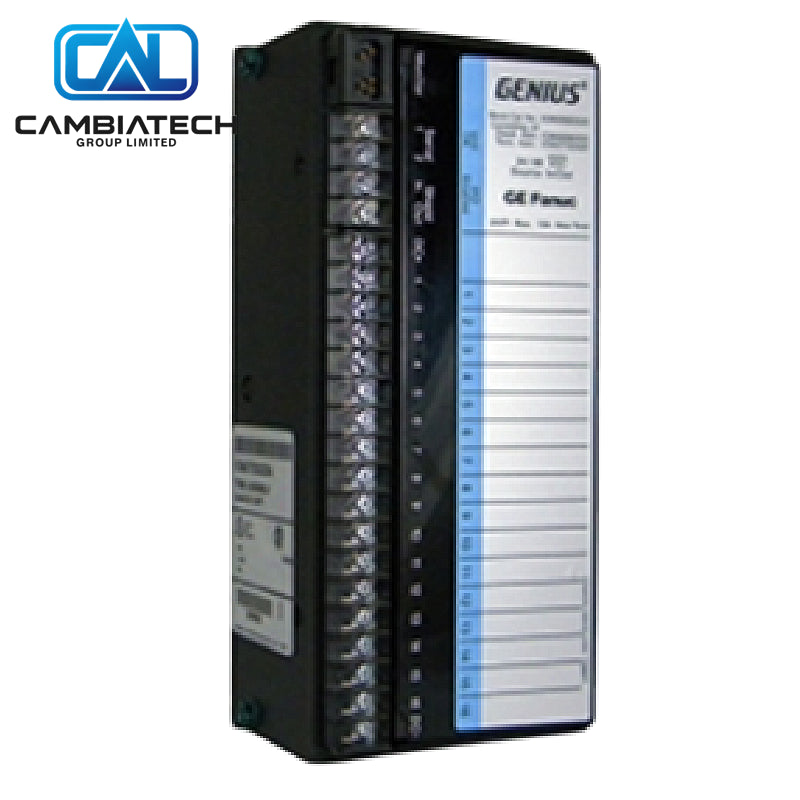

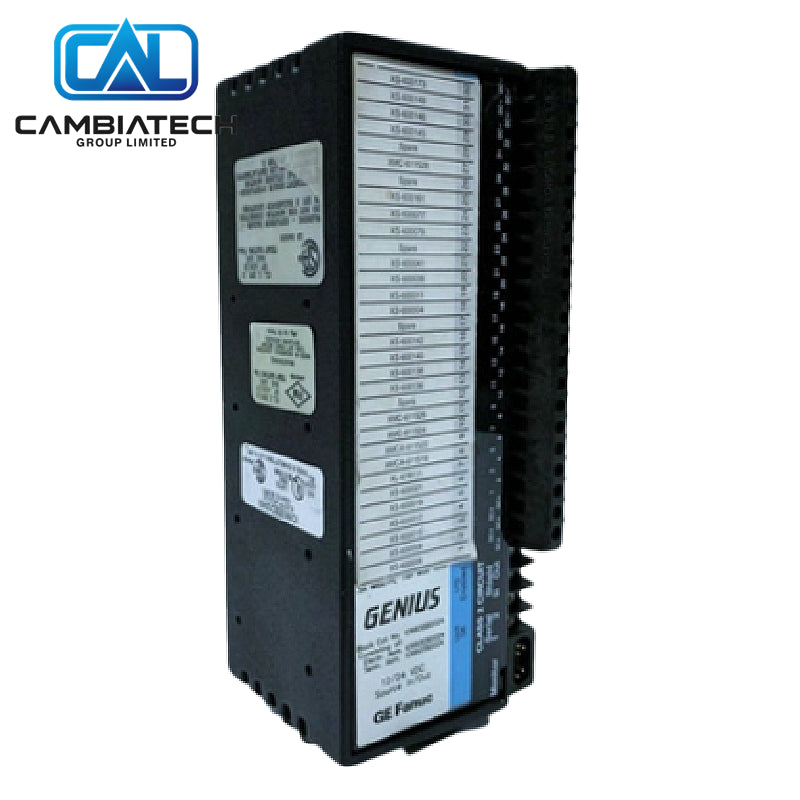

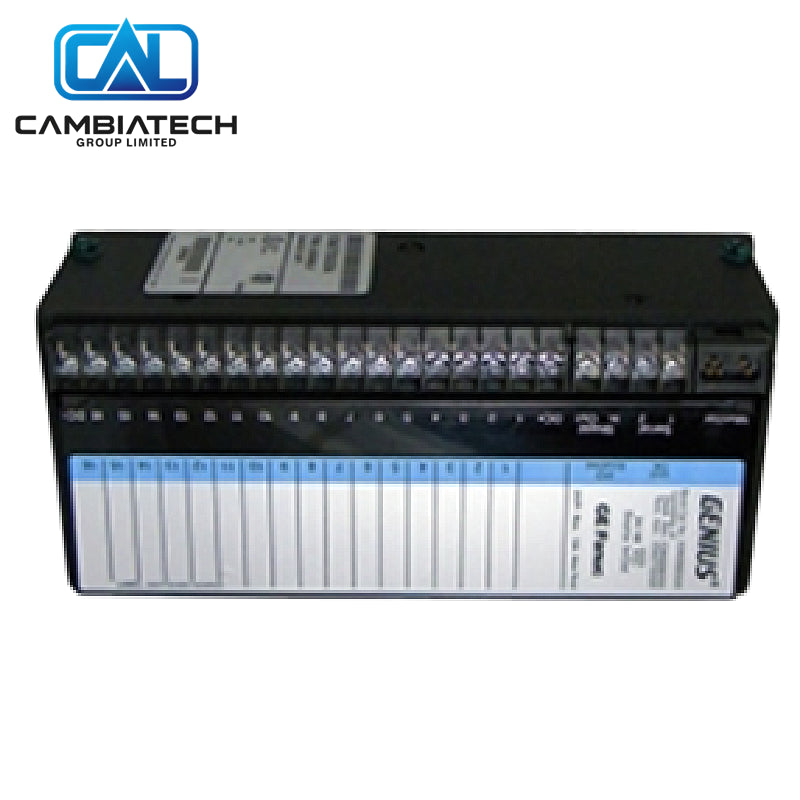

High-Speed Counter Block IC660BBD120 GE Genius
Manufacturer: GE
Product No.: IC660BBD120
Product Type: High-Speed Counter Block
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
GE IC660BBD120 is a Genius High-Speed Counter block designed for turbine flowmeters, meter proving, velocity measurement and motion control. It supports up to 4 counters with 12 inputs and 4 outputs.
Key Specs
- Counters: 1, 2 or 4 configurable
- Inputs: 12 × 5–30 V DC
- Outputs: 4 × 5 V DC class
- Count rate: Up to 200 kHz (high frequency)
- System: GE Genius I/O
- Compatible bases: IC660EBD120 / IC660TBD120
Why Choose This
- High-speed counting up to 200 kHz
- Flexible counter configurations
- Suitable for flow, speed and position applications
- Standalone Genius Bus connectivity
Common Questions
- Function? High-speed counter.
- Max rate? 200 kHz.
- Counters? 1–4 configurable.
Mounting Steps
- Mount the block with the matching electronics and terminal base.
- Connect the Genius Bus and field sensors.
- Configure counter modes with the Handheld Monitor.
- Power up and verify status.
- Test counting accuracy under operating speeds.
Buying Advice
- Select for high-frequency pulse counting applications.
- Confirm compatible electronics and terminal assemblies.
- Useful spare for Genius high-speed counter nodes.
