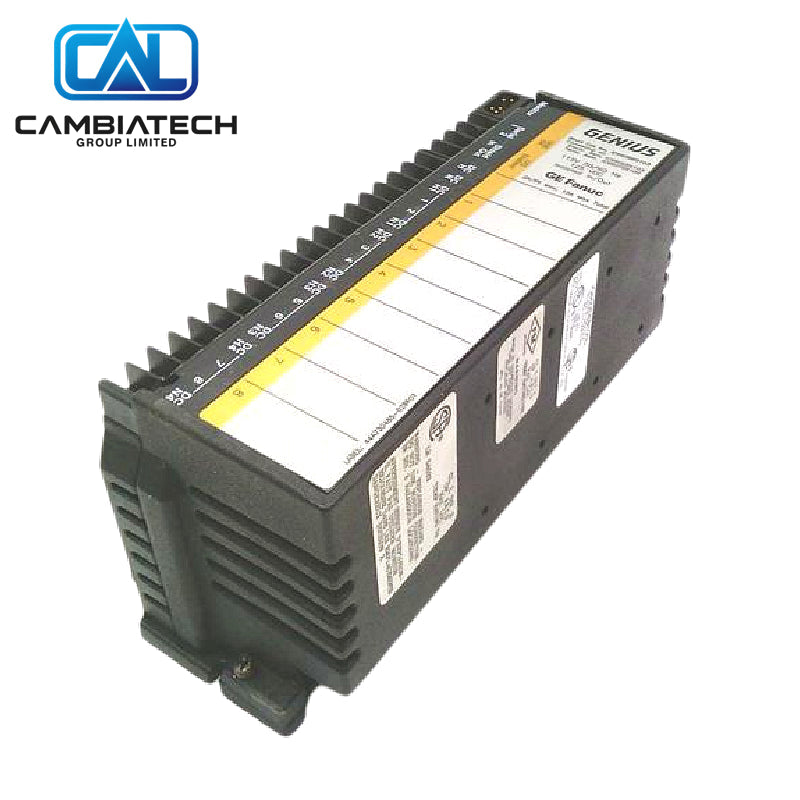

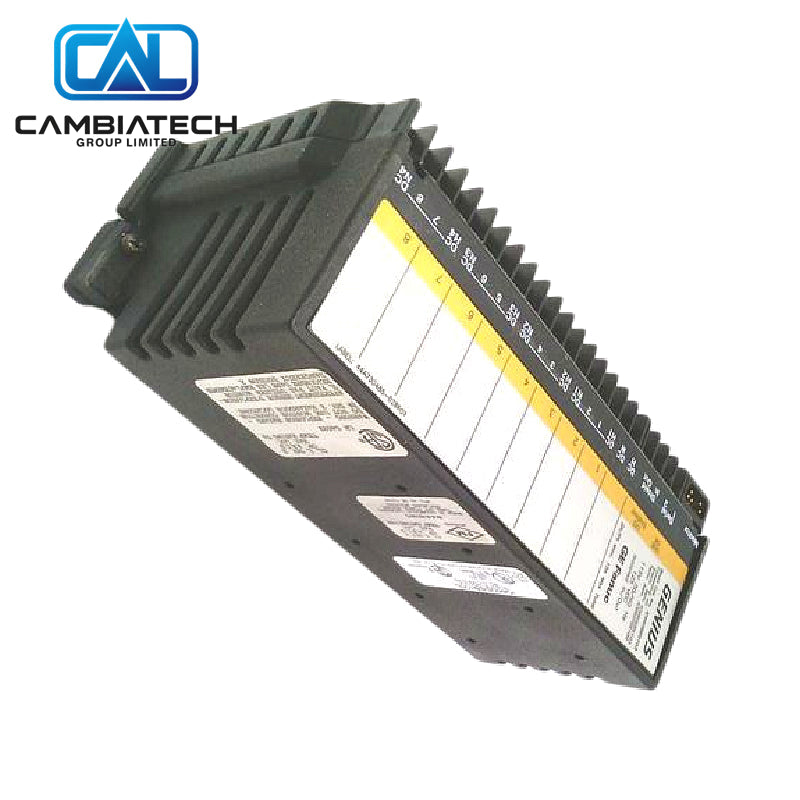

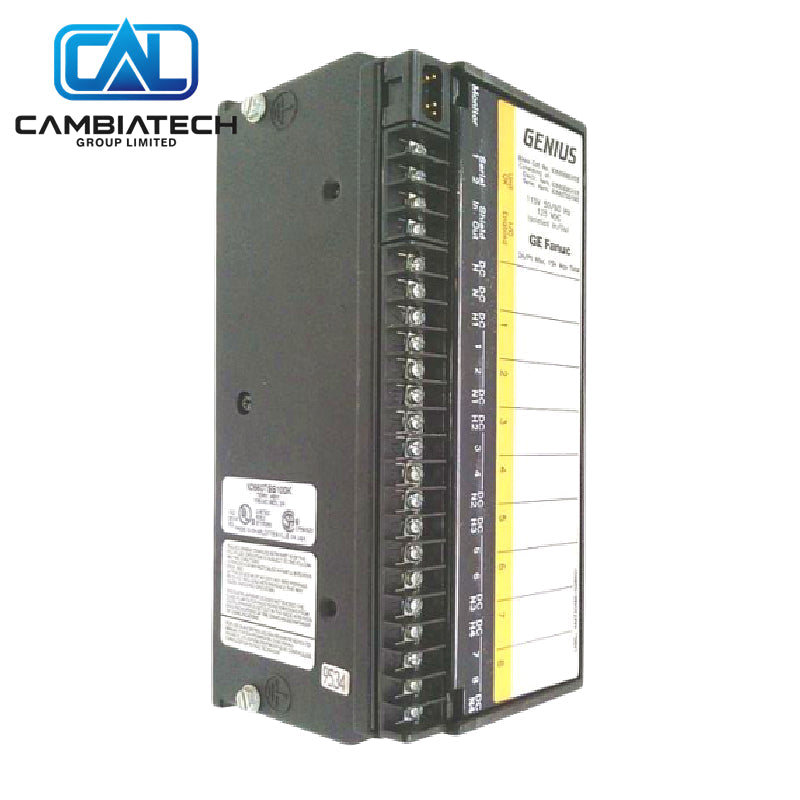

GE | IC660BBS103 | Genius 8pt Isolated Discrete I/O Block 115VAC
In stock, ready to ship
Manufacturer: GE
Product No.: IC660BBS103
Product Type: Discrete I/O Block
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The GE IC660BBS103 is a Genius 8-circuit isolated discrete I/O block rated for 115 VAC / 125 VDC. It provides four isolated groups of two circuits each and supports Genius Bus communication for distributed I/O architectures.
Key Specs
- Circuits: 8 (configurable as input or output)
- Rated voltage: 115 VAC / 125 VDC
- Input range: 93–132 VAC
- Output load: 2 A per point
- Groups: 4 isolated groups of 2
- Isolation: 250 VAC/VDC group-to-group / group-to-ground
- Electronic fusing on outputs
- System: GE Genius I/O
Why Choose This
- Isolated discrete I/O for mixed AC/DC applications
- Electronic short-circuit protection
- Configurable input filter and diagnostics
- Direct Genius Bus connectivity
Common Questions
- Points? 8 isolated circuits.
- Voltage? 115 VAC / 125 VDC.
- Bus? Genius Bus.
Mounting Steps
- Mount the block on the DIN rail or panel.
- Connect the Genius Bus cable.
- Wire field devices to the terminal assembly.
- Configure circuit types and filters with the Handheld Monitor.
- Power up and verify Unit OK and I/O Enabled LEDs.
Buying Advice
- Confirm terminal assembly compatibility.
- Useful spare for Genius discrete I/O networks.
- Match voltage and isolation requirements.
