GE

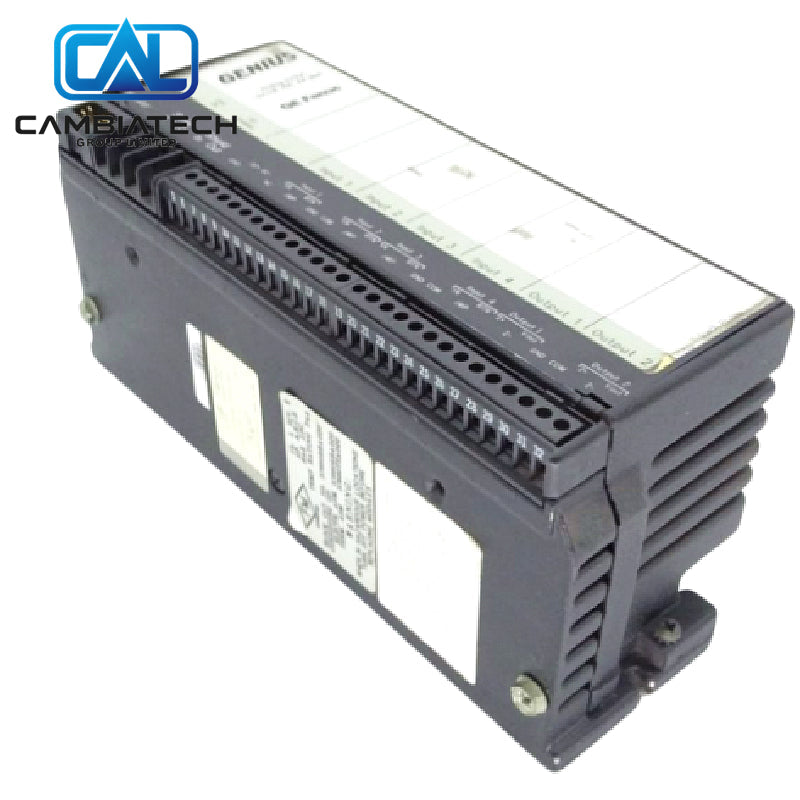

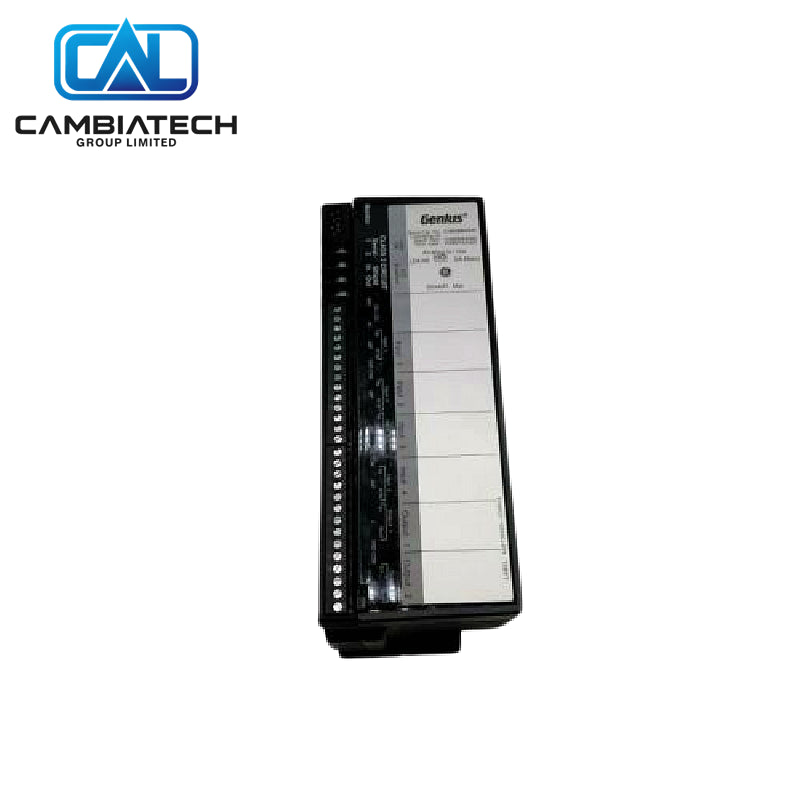

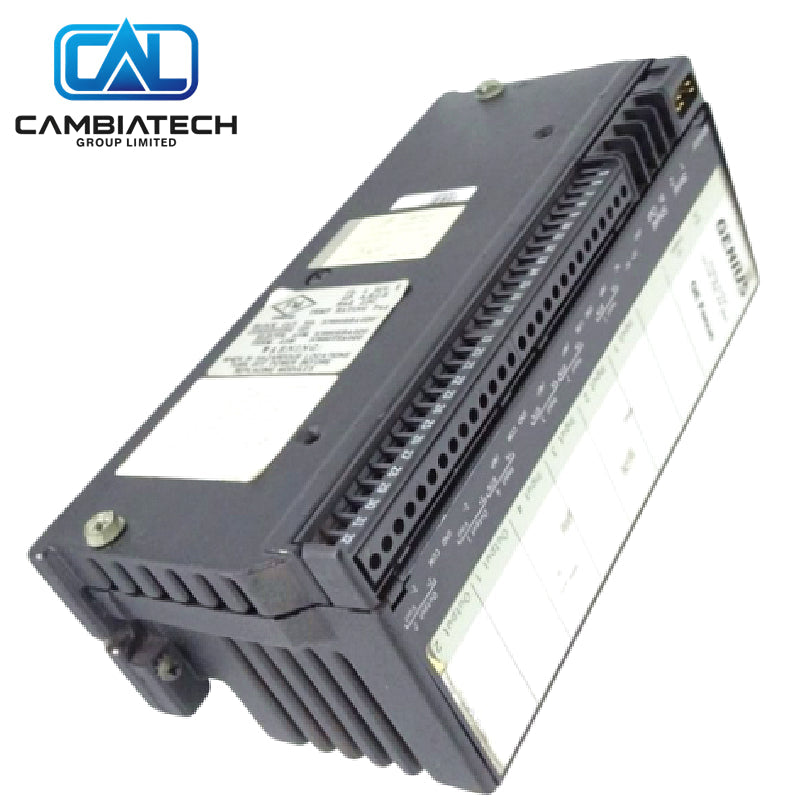

GE | IC660BBA020 | Genius Analog 4AI/2AO Combination Block 24/48VDC
Manufacturer: GE
Product No.: IC660BBA020
Product Type: Analog Combination I/O Block
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The GE IC660BBA020 is a Genius analog combination I/O block providing 4 analog inputs and 2 analog outputs. It supports multiple voltage and current ranges and is powered by 24/48 VDC for distributed analog control.
Key Specs
- Inputs: 4 analog (0–10 V, ±10 V, ±5 V, 0–5 V, 4–20 mA)
- Outputs: 2 analog (same ranges)
- Resolution: 12-bit + sign
- Power: 18–56 VDC (24/48 VDC nominal)
- Update rate: 4 ms
- System: GE Genius I/O
Why Choose This
- Flexible multi-range analog I/O in one block
- High resolution and fast update
- Standalone Genius Bus connectivity
- Suitable for mixed voltage/current applications
Common Questions
- Channels? 4 AI + 2 AO.
- Power? 24/48 VDC.
- Ranges? Voltage and 4–20 mA selectable.
Mounting Steps
- Mount the block and connect the Genius Bus.
- Wire field devices and 24/48 VDC power.
- Configure ranges and scaling with the Handheld Monitor.
- Power up and verify Unit OK / I/O Enabled LEDs.
- Test each channel under operating conditions.
Buying Advice
- Confirm signal ranges match the field devices.
- Useful spare for Genius analog combination nodes.
- Match terminal assembly if required.
