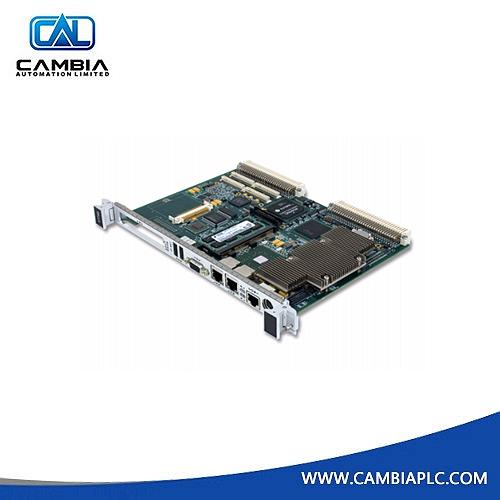

GE Fanuc V7768 VME Single Board Computer in Stock

The V7768 is a fully featured Single Board Computer (SBC) based on Intel® Core™ 2 Duo or Celeron® M processors. It leverages the advanced technology of Intel’s 945GM chipset and the ICH7-M I/O Controller Hub. The 945GM chipset operates with a 533 MHz front-side bus when used with the Celeron M processor, and a 667 MHz front-side bus when used with the Core 2 Duo processor. The V7768 complies with the VMEbus Specification VITA 1-1994 and includes a transparent PCI-to-VME bridge, enabling the board to serve as either a system controller or a peripheral CPU in multi-CPU systems.

Key Features

• Complete six-line Address Modifier (AM-Code) programmability

• VME data interface with separate hardware byte/word swapping for master and slave accesses

• Support for VME64 multiplexed MBLT 64-bit VME block transfers

• User-configured interrupter

• User-configured interrupt handler

• System Controller mode with programmable VME arbiter (PRI, SGL, and RRS modes are supported)

• VME BERR bus error timer (software programmable)

• Slave access from the VME to local RAM and mailbox registers

• Full-featured programmable VME requester (ROR, RWD, and BCAP modes are supported)

• System Controller auto detection

• Complete VME master access through five separate Protected-mode memory windows

Trixie

86-135-9950-7613

Trixie@cambia.cn

Can transport to the world.

Brand New.

1-Year-Warranty.

Fast Delivery.

24 hours to receive mail reply.
