GE Fanuc Series 90-70 IC697CPU780 CPU Processor Brand

In stock, ready to ship

  • Manufacturer: GE Fanuc

  • Product No.: IC697CPU780

  • Product Type: CPU Processor

  • Product Origin: USA

  • Payment: T/T

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

GE Fanuc Series 90-70 IC697CPU780 CPU Processor Brand

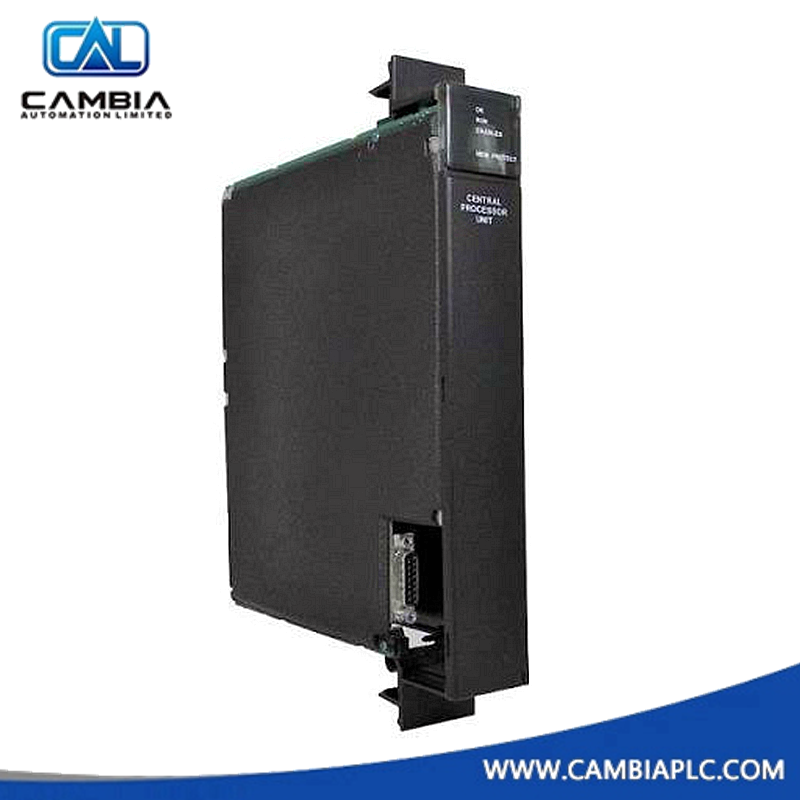

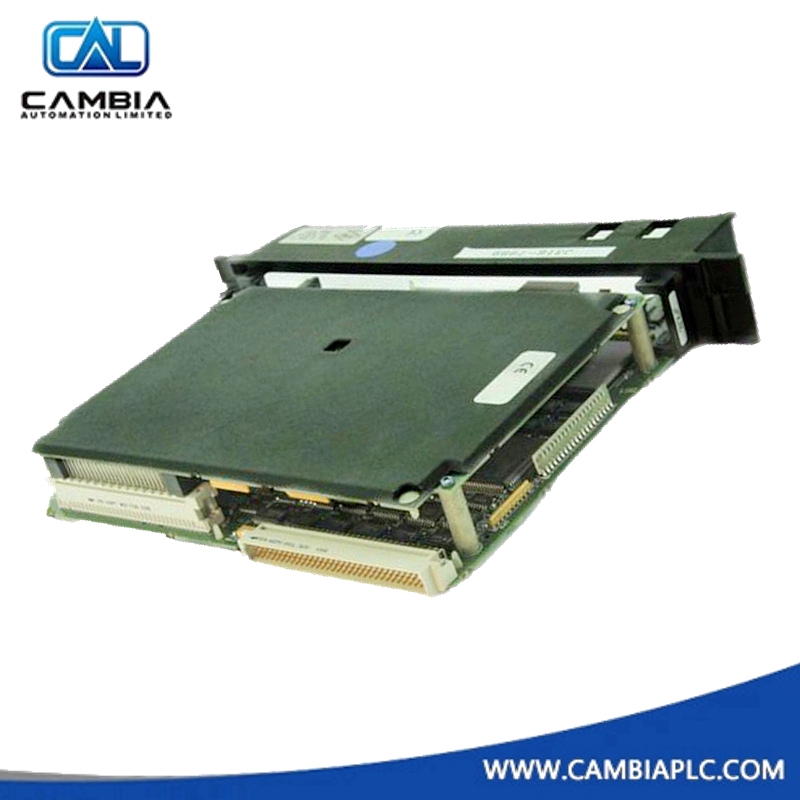

GE Fanuc IC697CPU780
Hot Standby CPU Module for Series 90-70 PLC

Overview

The IC697CPU780 is a high-performance Central Processing Unit (CPU) module designed for the Series 90-70 Programmable Logic Controller (PLC) platform from GE Fanuc, now under Emerson Automation. It supports hot standby redundancy, enabling continuous operation in critical control applications.

Technical Specifications

Manufacturer GE Fanuc (now Emerson Automation)
Catalog Number IC697CPU780
Product Type Hot Standby CPU Module
PLC Series Series 90-70
Processor Type Intel 80386DX
Clock Speed 16 MHz
Boolean Execution Time 0.4 µs per function
User Memory 512 KB (expandable)
Discrete I/O Capacity Up to 12 KB
Analog I/O Capacity Up to 8 KB
Floating Point Math Supported
Communication Port RS-485 (SNP protocol)
Redundancy Support Hot standby with auto failover
Power Requirement 5 VDC, 3.3 A (from backplane)
LED Indicators Module OK, RUN, Outputs Enabled, Memory Protect
Battery Backup Lithium battery (IC697ACC701)
Slot Occupancy Single slot in CPU rack
Operating Temperature Range 0 to 60 °C
Mounting Type Rack-mounted

Dimensions and Weight

Module Width 3.5 cm
Module Height 13 cm
Module Depth 13.5 cm
Weight 0.3 kg
Cooling Method Passive (natural convection)

Key Features

  • Hot standby redundancy with automatic failover
  • High-speed 32-bit Intel 80386DX microprocessor
  • Supports floating-point math operations
  • Online programming and repair without downtime
  • RS-485 SNP communication interface
  • Lithium battery backup for program retention

Product Questions

Q: What is the primary application of the IC697CPU780?
A: It is used in high-availability control systems requiring hot standby redundancy and minimal downtime.

Q: Can the IC697CPU780 be used in non-redundant configurations?
A: Yes. While optimized for hot standby, it can operate as a standalone CPU in standard Series 90-70 PLC setups.

Q: What type of memory backup is supported?
A: The module uses a lithium battery (IC697ACC701) to retain RAM contents during power loss.

Q: Is online programming supported?
A: Yes. The CPU supports online programming and repair, allowing updates without halting system operation.
