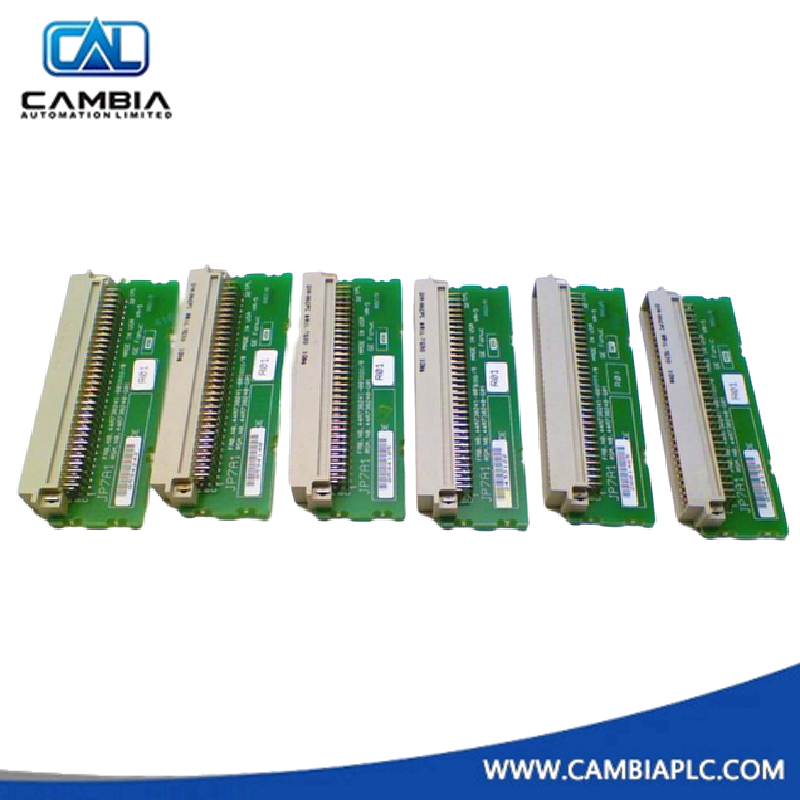

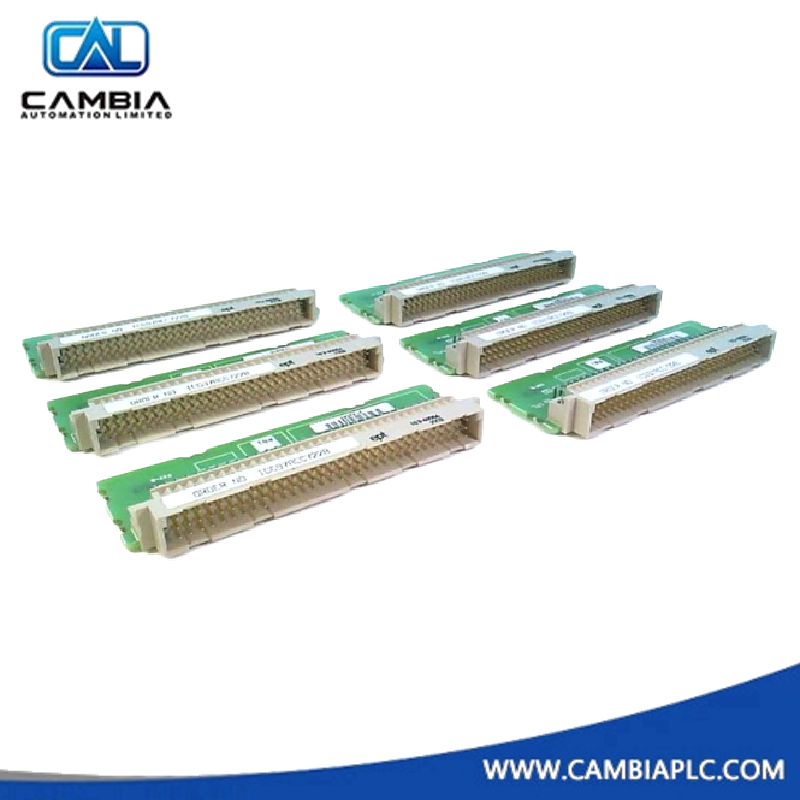

GE Fanuc JP7A1 VME Backplane Connector IC697ACC722
In stock, ready to ship
Manufacturer: GE Fanuc
Product No.: IC697ACC722
Product Type: Blank Slot Interrupt Jumper
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
GE IC697ACC722
Blank Slot Interrupt Jumper for Series 90-70 and IC697 PLC Systems
Product Description
The IC697ACC722 is a blank slot interrupt jumper designed for use in GE Fanuc Series 90-70 and IC697 PLC systems. It allows for the continuation of interrupt signals across empty slots in a VME backplane, ensuring system integrity when slots are reserved for future expansion. This accessory is essential when modules to the right of an empty slot may generate interrupts.
- Series: Series 90-70 / IC697
- Product Type: Interrupt Jumper (Blank Slot Filler)
- Lifecycle Status: Active
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Type | Interrupt Jumper (Blank Slot Filler) |
| Connector | Single connector mounted on board |
| Function | Maintains continuity of interrupt signals across unused slots |
| Compatible Racks | IC697 CPU and expansion racks |
| Slot Compatibility | Slots 2–8 in 9-slot racks, slots 2–4 in 5-slot racks |
| Slot Restriction | Cannot be installed in slot 1 |
| Dimensions (H × W × D) | 35 × 130 × 135 mm (approximate) |
| Weight | ~0.3 kg |
| Installation Note | Power must be off before installation |
| Configuration | Mu |
