GE Fanuc
In stock, ready to ship
Manufacturer: GE Fanuc
Product No.: IS220PTCCH2BB
Product Type: Input Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

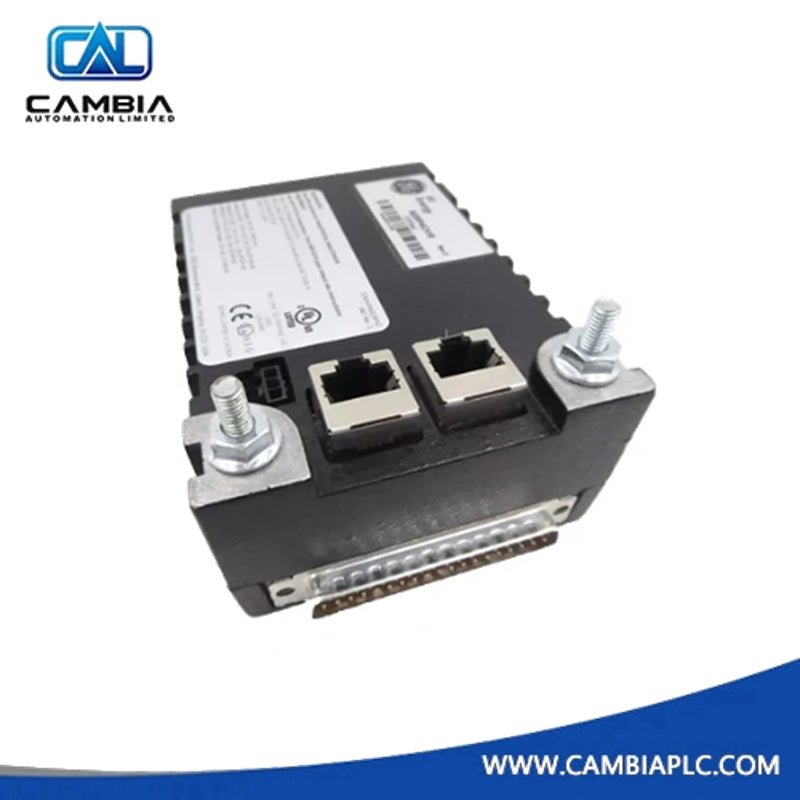

The IS220PTCCH2BB from GE Fanuc is a high-performance thermocouple input module from the PTCC series. It is specifically engineered for use in Mark VIe turbine control systems. This module enables accurate, real-time temperature monitoring across multiple thermocouple channels.
You can install IS220PTCCH2BB directly on a DIN rail. It pairs with the IS220PAICH1A I/O pack to form a complete input acquisition system.
Supports up to 12 isolated thermocouple input channels
Integrated cold junction compensation per channel
Designed for compatibility with Mark VIe systems
Modular DIN-rail mounting for fast installation
Digital signal conversion with high accuracy
| Specification | Details |
|---|---|
| Part Number | IS220PTCCH2BB |
| Manufacturer | GE Fanuc |
| Product Type | PTCC Thermocouple Input Module |
| System Compatibility | GE Mark VIe Distributed Control System |
| Input Channels | 12 thermocouple inputs |
| Thermocouple Types | Types J, K, T, E, N, R, S, B, C |
| Cold Junction Compensation | Onboard, per input |
| Mounting Method | DIN rail or panel mount |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Power Supply | Supplied by connected I/O pack |
| Dimensions (L x W x H) | 26.0 cm × 3.2 cm × 12.5 cm (10.2 × 1.26 × 4.9 inches) |
| Weight | 0.72 kg (1.59 lbs) |
| Shipping Weight | 1.5 kg (3.3 lbs) |
| Certifications | CE, ATEX, CSA, IECEx compliant |
