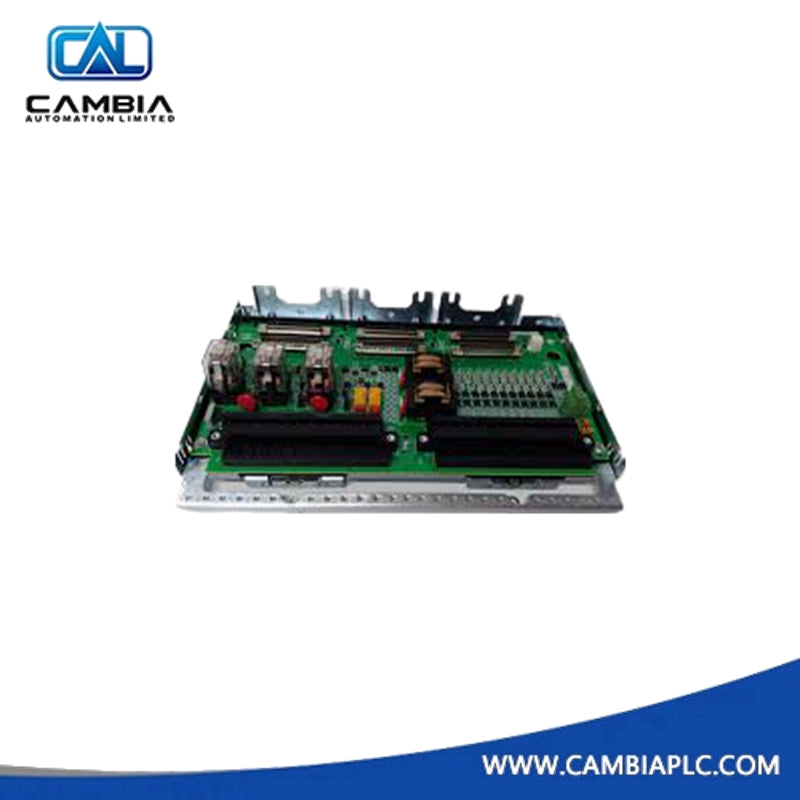

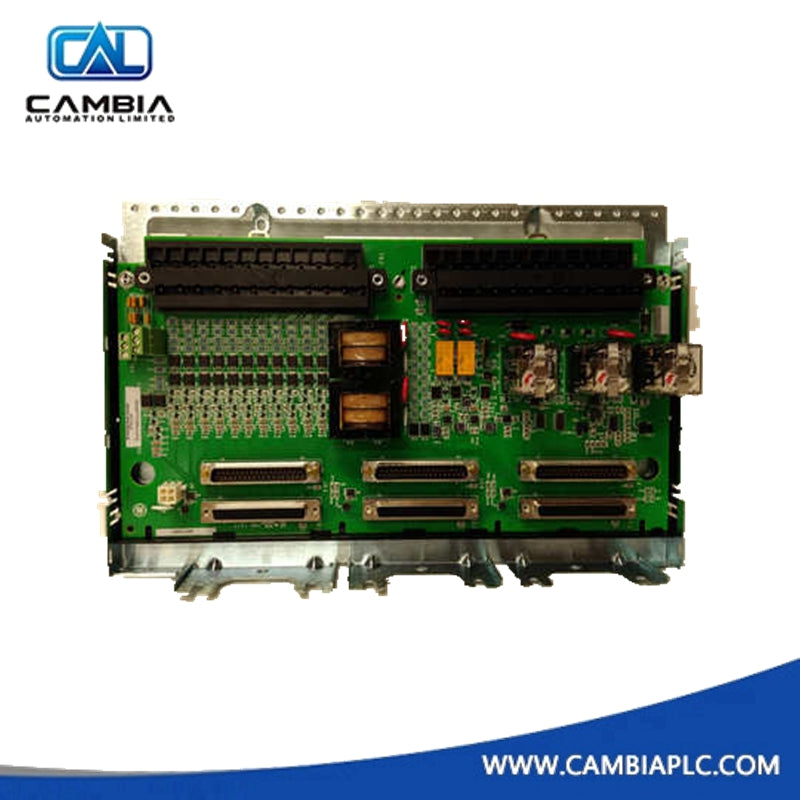

GE Fanuc IS200TTURH1CFD Mark VIe Terminal Turbine Board
In stock, ready to ship
Manufacturer: GE Fanuc
Product No.: IS200TTURH1CFD
Product Type: Terminal Turbine Board
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The IS200TTURH1CFD is a turbine terminal board from the GE Fanuc Mark VIe series, built for high-reliability industrial control. It provides connection interfaces between the turbine field devices and the Mark VIe controller, ensuring accurate signal communication for temperature, speed, and pressure sensors.
This board supports complex I/O handling while maintaining a compact form factor suitable for various turbine control cabinets.
Key Features
-
Direct terminal interface for turbine instrumentation
-
Works with Mark VIe I/O packs for precise control and diagnostics
-
Screw-type terminals for easy field wiring and maintenance
-
Supports both analog and digital input channels
-
Designed for harsh industrial environments with EMI shielding
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | IS200TTURH1CFD |
| Manufacturer | GE Fanuc |
| Product Type | Turbine Terminal I/O Board |
| Series | Mark VIe |
| Dimensions | 33.0 cm x 17.8 cm x 2.5 cm (13.0 x 7.0 x 1.0 inches) |
| Weight | Approximately 1.25 kg (2.75 lbs) |
| Terminal Type | Screw terminals for 2-wire and 3-wire connections |
| Supported Signals | RTDs, thermocouples, 4–20 mA signals, dry contact inputs |
| Input Channels | Multiple analog and digital inputs (16–24 channels) |
| Connectors | Edge connectors for Mark VIe I/O packs |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Mounting | DIN-rail or panel mount (horizontal/vertical) |
| Country of Origin | United States (USA) |
Application & Compatibility
The IS200TTURH1CFD board interfaces directly with GE’s Mark VIe control system. It supports critical measurements in gas and steam turbines, including:
-
Thermocouple and RTD readings
-
Shaft speed and phase signals
-
Pressure and valve position monitoring
-
Alarm contact and relay status feedback
Its robust design makes it suitable for:
-
Power generation plants
-
Industrial gas turbines
-
Steam turbine automation
-
Combined-cycle control systems
