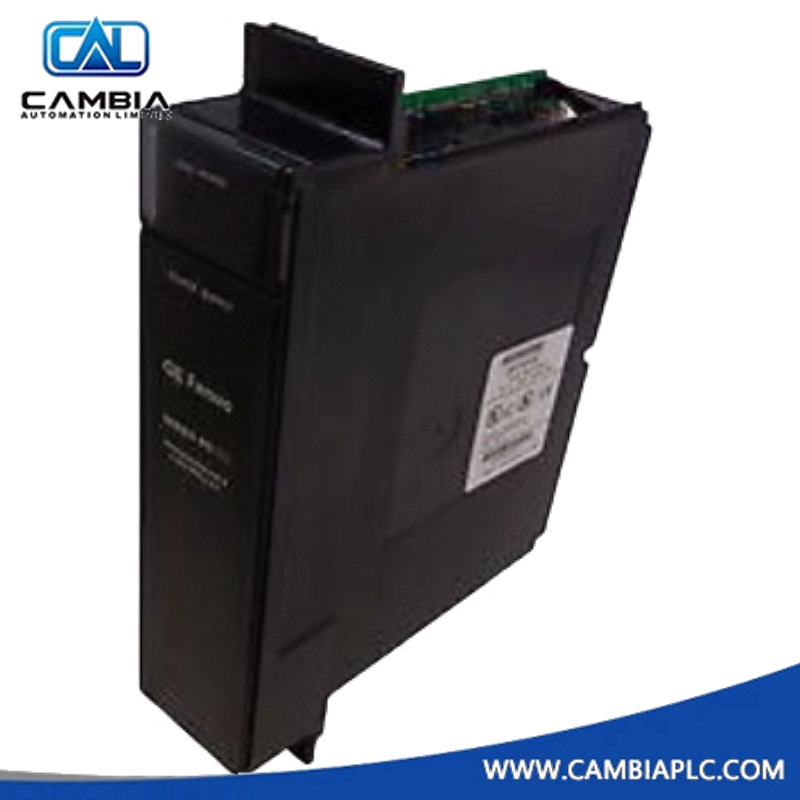

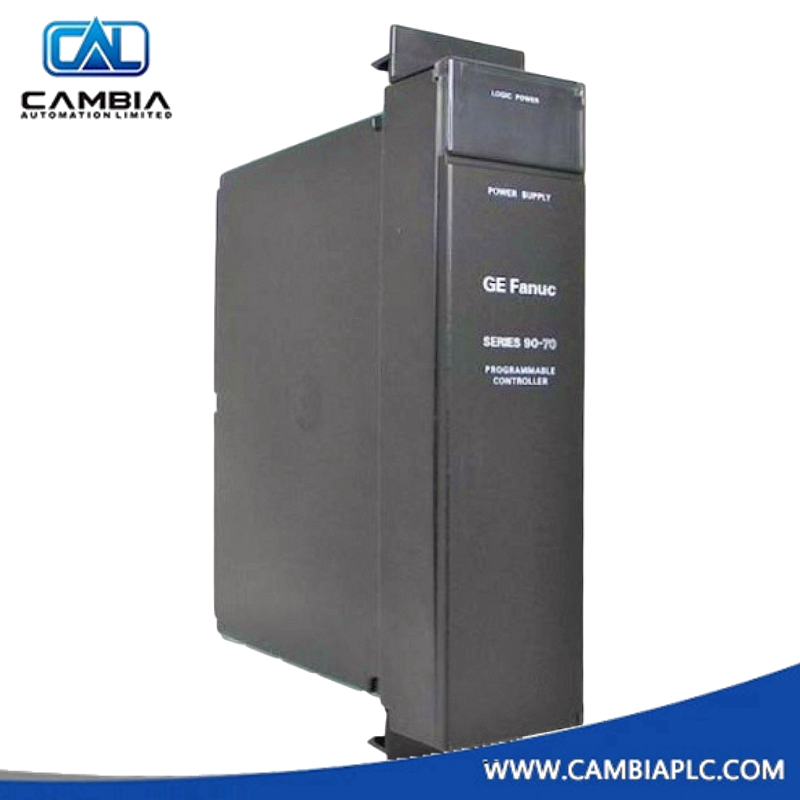

GE IC697PWR724 | 24 VDC Power Supply Module (90W)

The IC697PWR724 is a 24 VDC power supply module with a 90-watt output, designed for use in single-rack or dual-rack configurations within GE Fanuc’s Series 90-70 systems. It delivers multiple regulated voltages to support CPUs, I/O modules, and other rack-mounted components.

Technical Specifications

Attribute Details
Series GE Fanuc Series 90-70
Nominal Input Voltage 24 VDC
Input Voltage Range 18–32 VDC
Input Power 160 W max
Output Power 90 W max
Output Voltages +5 VDC, +12 VDC, –12 VDC
Inrush Energy 22 J max
Ride-Through Time 10 ms
Mounting Slot Leftmost slot in rack
Connector Type 48-pin backplane connector
Operating Temp 0°C to +60°C
Certifications UL, CE
VME Compatibility Yes

Key Features

  • Multi-Voltage Output: Supports logic and analog modules with +5V, +12V, and –12V rails
  • Dual-Rack Capability: Can power a second rack if total load stays within 90W limit
  • Compact Design: Fits into the leftmost slot of Series 90-70 racks
  • Reliable Performance: Designed for industrial environments with high uptime demands
  • VME Bus Support: Compatible with VME-based modules and systems
  • Surge Protection: Handles inrush currents and voltage fluctuations gracefully
