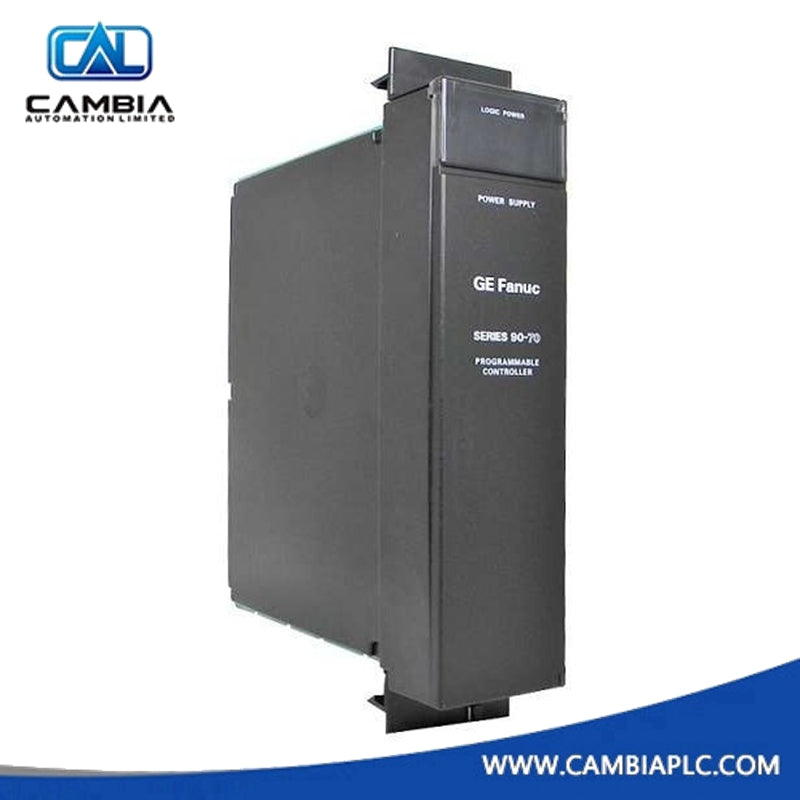

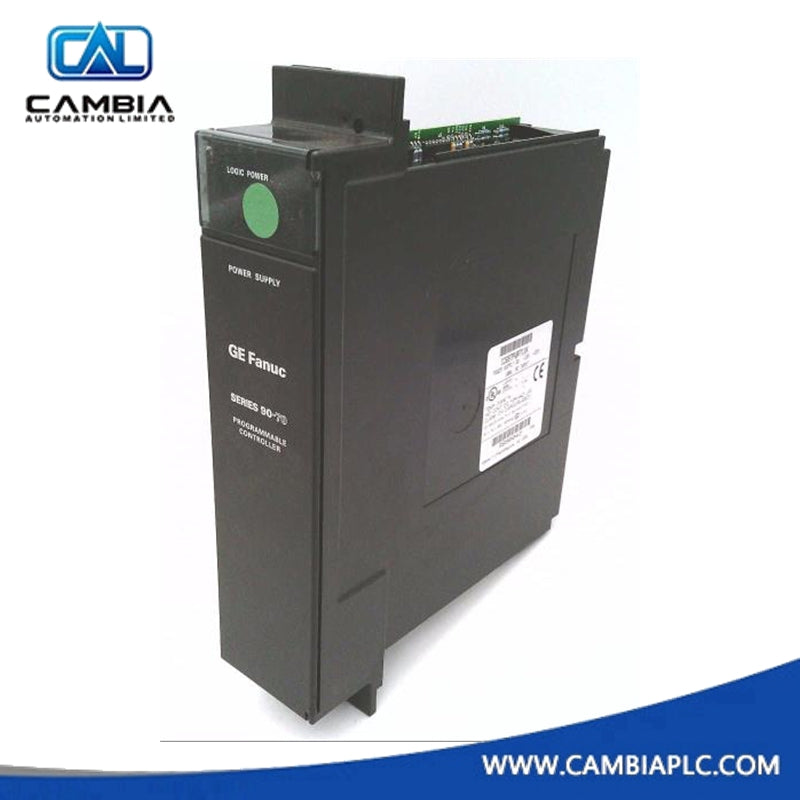

GE Fanuc IC697PWR722 Power Supply Module

In stock, ready to ship

  • Manufacturer: GE Fanuc

  • Product No.: IC697PWR722

  • Product Type: Power Supply Module

  • Product Origin: USA

  • Payment: T/T

  • Weight: 760g

  • Shipping port: Xiamen

  • Warranty: 12 months

The GE Fanuc IC697PWR722 is a 24 VDC Power Supply Module designed for the 90-70 series. It provides regulated DC outputs with electronic protection features, ensuring reliable power distribution for industrial automation systems. The module is engineered to meet the demanding needs of high-performance applications, offering protection against overcurrent and short circuits.

Key Features

  • Power Supply Type: 24 VDC Power Supply Module for 90-70 series

  • FM Certified: Ensures compliance with safety standards

  • Electronic Protection: Short circuit and overcurrent protection on all outputs

  • System Integration: Connects to IC697PWR720 PSA module for backplane integration

  • Logic Shutdown: TTL logic shutdown signal for compatible racks

  • Reset Signals: Input power fail and system reset signals for improved system stability

Electrical Specifications

Parameter Specification
Nominal Output Voltage 24 VDC
Input Voltage Range 21–32 VDC
Input Power 156 W at full load
Output Power 90 W
DC Outputs +5 VDC (16.5 A), +12 VDC (1.5 A), -12 VDC (1.0 A)

Installation Details

  • Mounting: External to the rack (left side) or as a stand-alone unit

  • Rack Integration: Requires IC697PWR720 PSA module for backplane integration

  • Applications: Supports single or dual rack configurations with prewired interconnection cable

Limitations

  • Load Restrictions: The total load across multiple racks must remain within the power supply's rating

  • Proper Integration: Requires PSA module for proper logic sequencing and power distribution
