GE Fanuc IC697CHS782 Mount VME Integrator Rack 17-Slot
In stock, ready to ship
Manufacturer: GE Fanuc
Product No.: IC697CHS782
Product Type: Rack
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

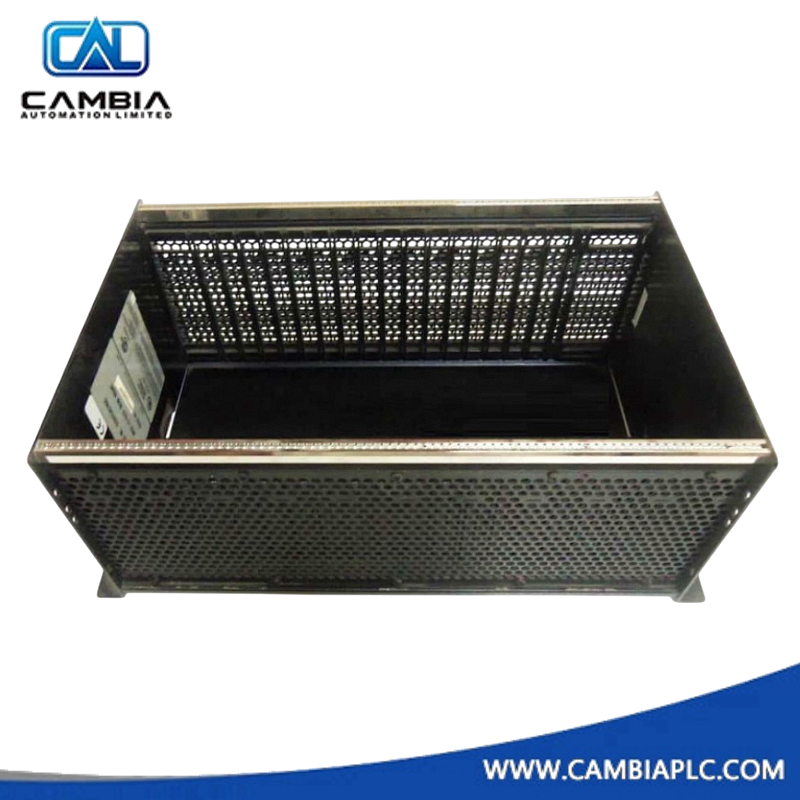

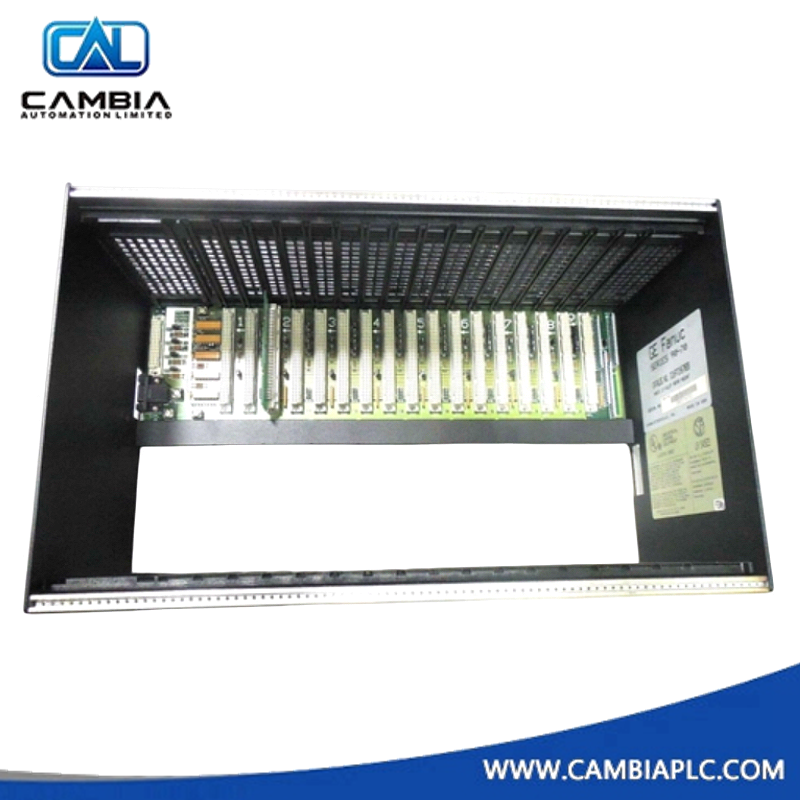

GE IC697CHS782 | 17-Slot Rear-Mount VME Integrator Rack
The IC697CHS782 is a 17-slot rear-mount VME integrator rack designed for use with GE Fanuc’s Series 90-70 PLC systems. It’s engineered to support a mix of IC697 modules and third-party VME modules, making it ideal for complex automation setups that require flexibility and high-density I/O.
Technical Specifications
| Attribute | Details |
|---|---|
| Series | GE Fanuc Series 90-70 |
| Slots | 17 total (supports IC697 and 3rd-party VME modules) |
| Mounting Type | Rear mount (fits 10” deep enclosure) |
| Slot Spacing | 0.8 inch centers (for VME modules); IC697 modules use 2 slots |
| Power Supply | Accepts plug-in AC/DC or external supply (with adaptor module) |
| Shared Power Option | Supports dual-rack operation from a single power supply |
| Cooling | Optional fan assembly for high-power modules |
| Jumper Configuration | Backplane jumpers allow slot customization for VME or IC697 modules |
| Dimensions | 283 × 320 × 190 mm |
| Certifications | UL, CE |
Key Features
- Hybrid Integration: Mix and match IC697 and third-party VME modules
- Flexible Power Options: Use internal or external power supplies
- Customizable Backplane: Jumper settings allow tailored slot configurations
- High-Density I/O: Supports up to 9 IC697 modules or 17 VME modules
- Expansion Ready: Connect two racks with a power extension cable (IC697CBL700)
- Robust Design: Built for industrial environments with high reliability
