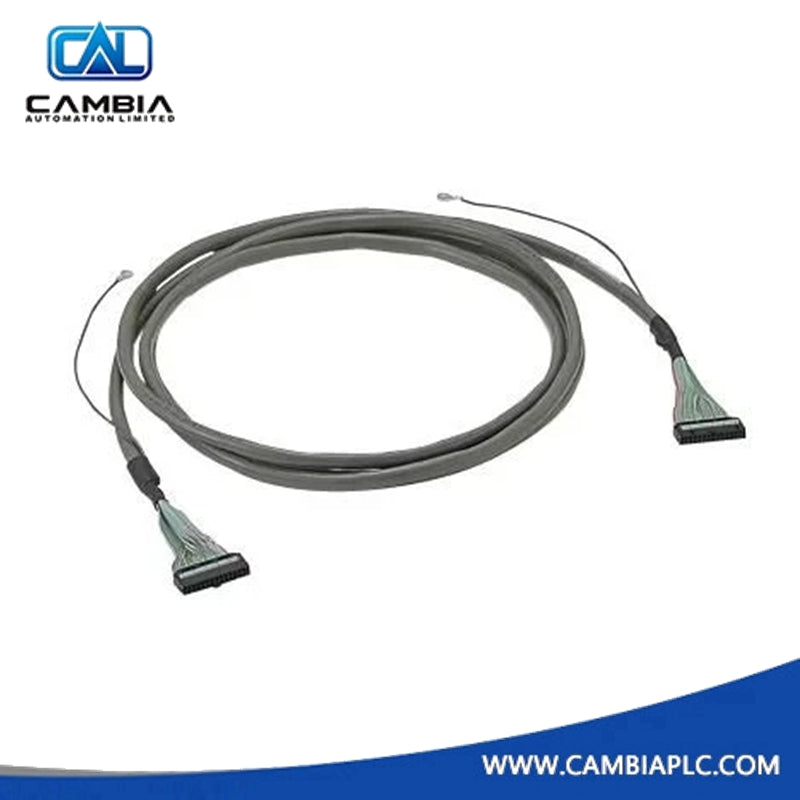

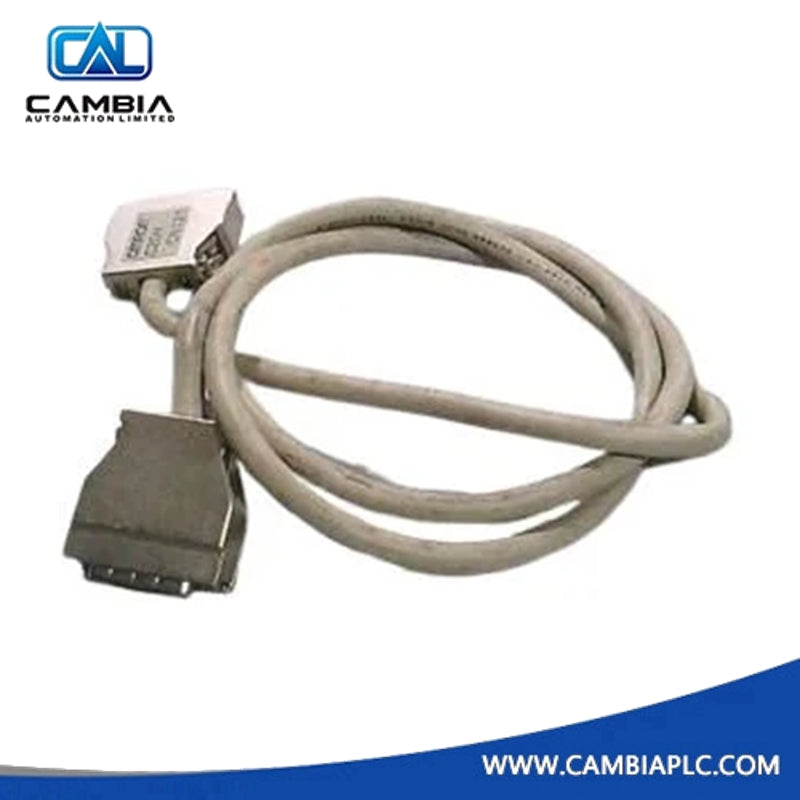

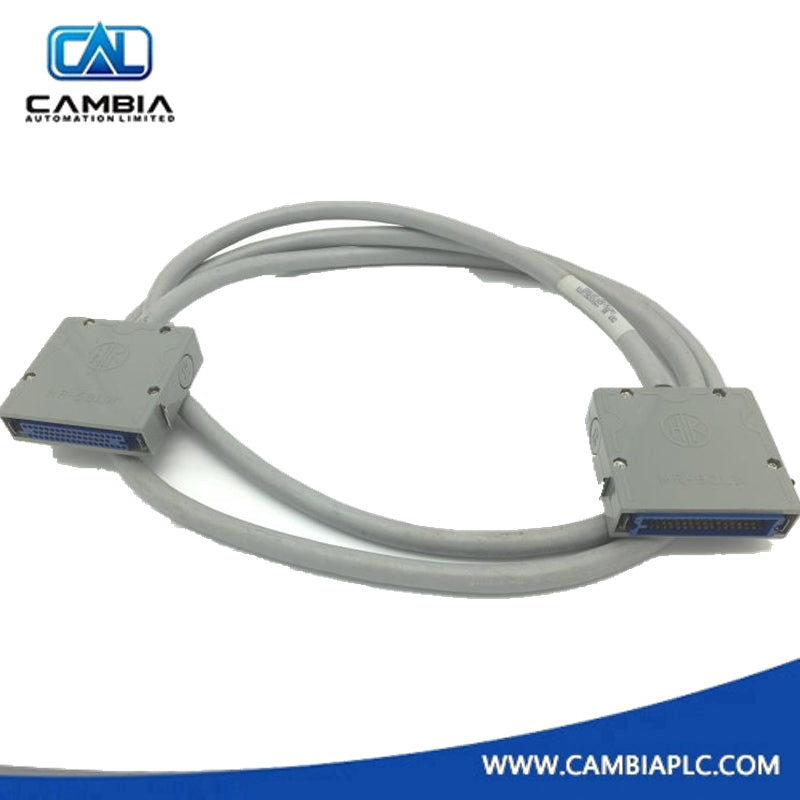

GE Fanuc IC693CBL341 Shielded Interface Cable
In stock, ready to ship
Manufacturer: GE Fanuc
Product No.: IC693CBL341
Product Type: Shielded Interface Cable
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The GE IC693CBL341 is a shielded interface cable designed for use with GE Fanuc Series 90-30 PLC systems. This cable connects the PTMPM processing module to the PTMIM interface module, enabling reliable and accurate signal transmission for power monitoring applications. Its shielded construction reduces electrical noise, ensuring clean and stable data exchange.
Key Features
-
Shielded Construction:
-
Reduces electrical interference and ensures clean, stable signal transmission.
-
Power Monitoring:
-
Supports RMS voltage and current sampling, as well as power factor analysis for accurate power monitoring.
-
Synchronization Support:
-
Enables phase and frequency comparison between grid and generator for precise system synchronization.
-
Modular Integration:
-
Designed to seamlessly integrate into the IC693PTM101 assembly, ensuring compatibility with other PLC components.
-
Flexible Operation:
-
Configurable via PLC ladder logic using %Q bits for flexible and tailored operation.
-
Easy Installation:
-
Features plug-and-play connectivity between PTM modules, simplifying setup and reducing installation time.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC693CBL341 |
| Series | GE Fanuc Series 90-30 |
| Cable Length | 39 inches (1 meter) |
| Connector Type | DB-25 |
| Cable Type | Shielded PTM interface cable |
| Application | Connects PTMPM to PTMIM module |
| Signal Support | Analog voltage and current signals |
| Voltage Range | Up to 120V PT signals |
| Current Range | 0–5 A CT signals |
| Wire Gauge Compatibility | Supports up to 10 AWG |
| Mounting Method | DIN-rail via PTMIM module |
| Weight | Approximately 204 grams |
| Country of Origin | USA |
| Warranty | Typically 12 months (varies by supplier) |
Applications
The GE IC693CBL341 cable is designed for use in power monitoring applications within the GE Fanuc Series 90-30 PLC system. It connects the PTMPM processing module to the PTMIM interface module, making it an essential part of industrial automation and power management systems.
