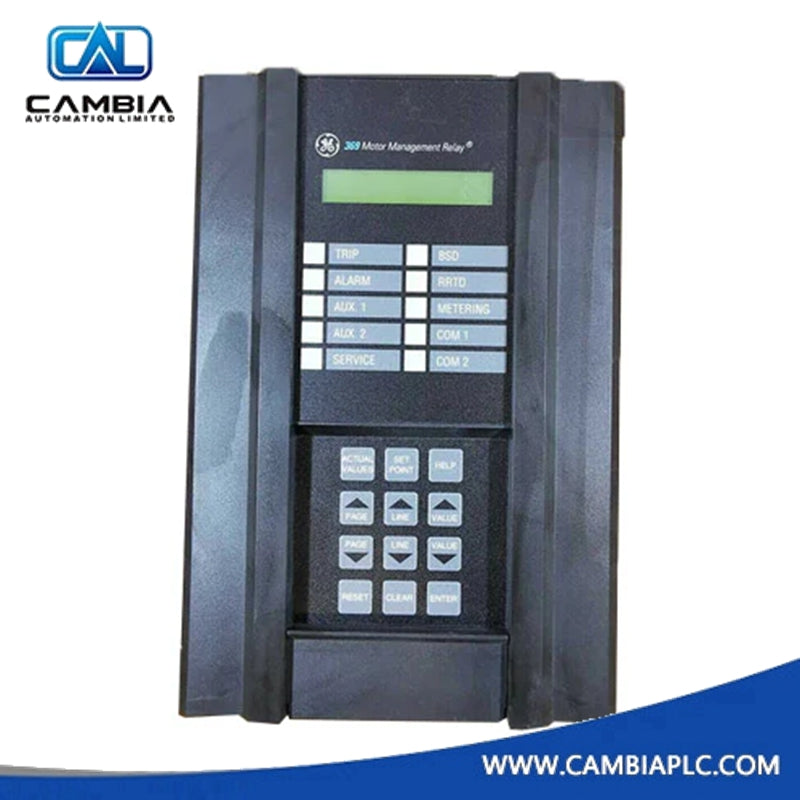

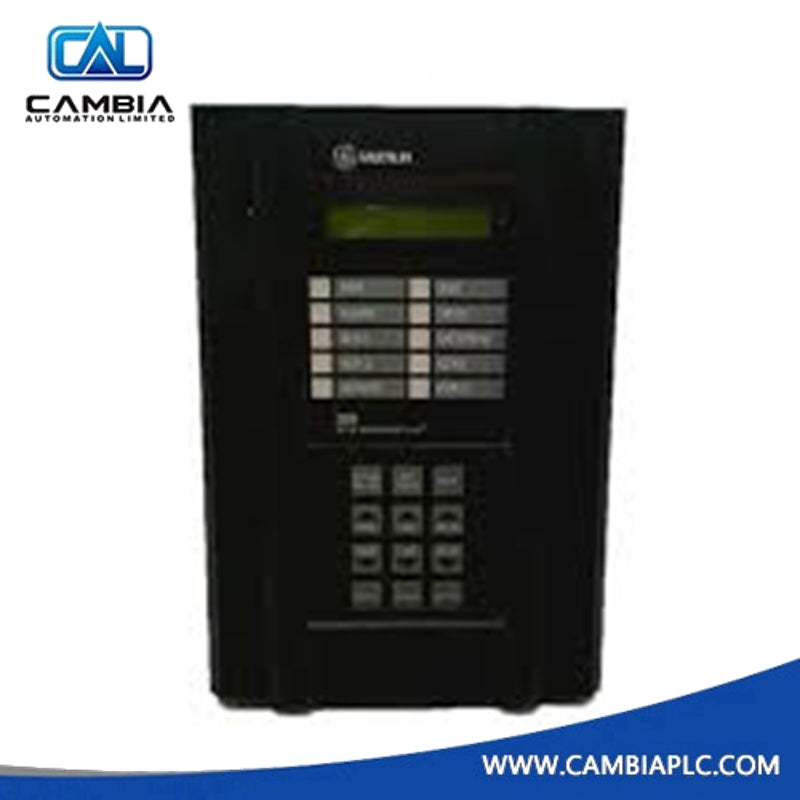

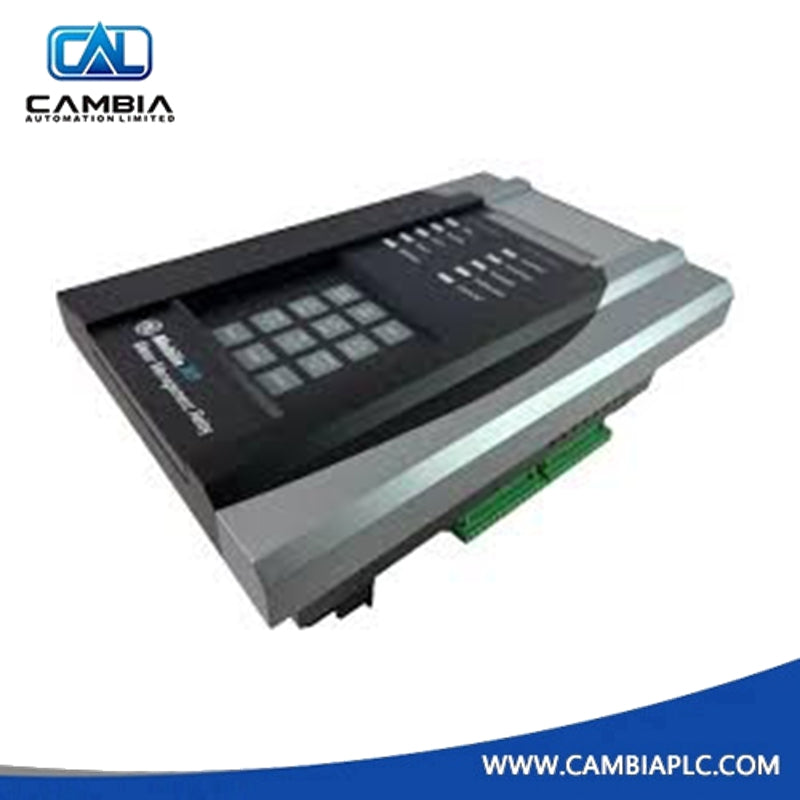

GE Fanuc 369-HI-R-B-0-D-0-E Motor Management Relay

The GE Fanuc 369-HI-R-B-0-D-0-E Motor Management Relay is a cutting-edge solution for monitoring, protecting, and controlling motor systems in industrial environments. Developed by GE Multilin, this relay is part of the highly regarded 369 series, which integrates adaptive technology and the powerful EnerVista 369 software to optimize motor performance. This motor management relay "learns" the unique characteristics and requirements of your motor system, automatically adjusting settings for optimal functionality and protection. Ideal for both new and retrofitted motor systems, the 369-HI-R-B-0-D-0-E is designed to enhance operational efficiency and extend the lifespan of your equipment.

Functional Highlights / Key Benefits / Main Features

• Adaptive Learning Technology: The 369-HI-R-B-0-D-0-E features advanced adaptive capabilities, allowing it to monitor and adjust to your motor system's specific needs, optimizing its performance in real time.

• Comprehensive Motor Protection: Offers robust protection features, including overcurrent, undercurrent, phase loss, and thermal overload protection, ensuring your motor operates efficiently and safely.

• Integration with EnerVista Software: Seamlessly integrates with EnerVista 369 software, providing detailed monitoring, configuration, and diagnostics through an intuitive user interface.

• Event Logging: The relay can store up to 512 recordable events, allowing operators to review and analyze motor behavior over time, which helps in proactive maintenance and troubleshooting.

• Ease of Use: With user-friendly programming and diagnostics, the 369-HI-R-B-0-D-0-E simplifies installation, setup, and ongoing maintenance, making it ideal for industrial facilities of any scale.

• Compact and Reliable Design: Built to handle demanding environments, the relay is compact yet highly reliable, with an operational altitude of up to 2000 meters and a pollution degree of II, ensuring durability even in harsh conditions.

Technical Data / Specifications / Technical Parameters

• Product ID: 369-HI-R-B-0-D-0-E

• Manufacturer: GE Multilin

• Type: Motor Management Relay

• Number of Digital/Switch Inputs: 6 optically isolated

• Number of Recordable Events: 512

• Fuse Rating: 3.15 A H 250 V

• Ground Current Input Frequency: 20 to 100 Hz

• Maximum Altitude: 2000 meters

• Pollution Degree: II

• Software: EnerVista 369

• Operating Temperature Range: -40°C to +70°C

• Dimensions: 12.5 cm x 9.8 cm x 7.5 cm (H x W x D)

• Weight: 700 grams

Typical Applications / System Integration / Use Cases

The 369-HI-R-B-0-D-0-E Motor Management Relay is a versatile solution that can be used across various industrial sectors, offering critical motor protection and optimization in both new and existing motor systems.

• Industrial Motor Protection: Ideal for protecting electric motors in critical processes, ensuring they operate safely and efficiently with minimal downtime.

• Pump and Compressor Systems: Offers monitoring and protection for pumps, compressors, and other machinery where motor performance and protection are paramount.

• HVAC Systems: Commonly used in heating, ventilation, and air conditioning systems to ensure motors function smoothly, reducing maintenance needs and preventing system failures.

• Power Generation and Distribution: Ensures the protection of motors in power plants and substations, contributing to overall system reliability and efficiency.

• Mining and Oil & Gas: Provides motor protection in harsh, demanding environments where reliability and operational uptime are essential.

Support & Maintenance / Reliability & Service

The 369-HI-R-B-0-D-0-E Motor Management Relay is supported by GE Multilin’s comprehensive service network, ensuring prompt and reliable assistance. From initial setup and configuration to regular maintenance, GE’s technical support team is ready to help you optimize the relay’s performance. Additionally, EnerVista 369 software offers real-time diagnostics, making it easy to monitor and troubleshoot your motor system. Regular software updates and firmware support enhance the relay's capabilities, ensuring that it remains up to date with the latest advancements in motor protection technology.

FAQ

1. What is the primary function of the 369-HI-R-B-0-D-0-E motor management relay?

• The relay monitors, protects, and optimizes motor systems by using adaptive technology and integration with EnerVista 369 software.

2. How many recordable events can the 369-HI-R-B-0-D-0-E store?

• It can store up to 512 recordable events, providing valuable insights for maintenance and troubleshooting.

3. What is the altitude limitation for the 369-HI-R-B-0-D-0-E?

• The relay is designed for operation at altitudes of up to 2000 meters, making it suitable for most industrial environments.

4. Does the 369-HI-R-B-0-D-0-E come with protection features?

• Yes, it offers multiple protection features, including overcurrent, undercurrent, and thermal overload protection.

5. Can the 369-HI-R-B-0-D-0-E be used with EnerVista software?

• Yes, the relay integrates seamlessly with EnerVista 369 software, offering advanced monitoring, configuration, and diagnostics.
