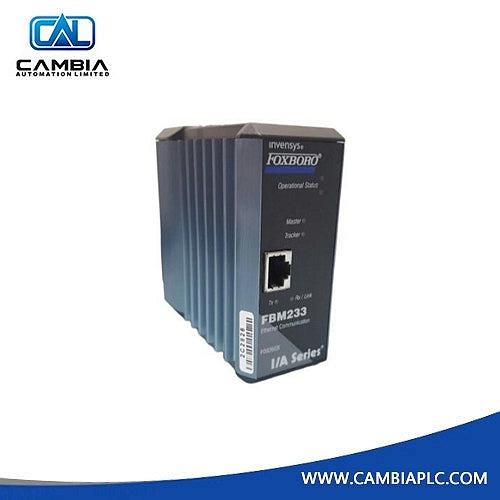

Foxboro FBM233 Field Device System Integrator Module New
In stock, ready to ship
Manufacturer: Foxboro
Product No.: FBM233
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Foxboro FBM233 Field Device System Integrator Module New
FoxboroFBM233
overview
The FBM233 module features a single 10/100Mbps copper Ethernet connection with an RJ-45 connector on the front, designed for connectivity to dual-ported Ethernet devices. It connects via Ethernet switches or hubs to communicate with one external device or up to 64 external devices. When deployed in pairs for redundancy, one FBM233 acts as the Master while the other serves as the Tracker module at the Fieldbus Module (FBM) level. The Master module updates input points on the control station from device inputs received on its connected network. Both the Master and Tracker modules can write device output points, contingent on the I/O driver used. Automatic role switching occurs if issues like a loss of heartbeat from any device are detected by the I/O driver. Users can also manually switch roles at any time using SMDH. Figure illustrates the typical network configuration for this setup.
Feature
Redundant 10 Mbps or 100 Mbps Ethernet network transmission rate to/from field devices
Communicates with up to 64 field devices
I/O software driver is downloadable from a library of available protocols
Supports up to 2000 DCI block connections
Integrates field device data into an I/A Series control database using Ethernet connectivity
Field mounted
Class G3 (harsh) environments.
Specifications
Operating Conditions:
Temperature: -20 to +70°C (-4 to +158°F)
Relative Humidity: 5 to 95% (noncondensing)
Storage Conditions:
Temperature: -40 to +70°C (-40 to +158°F)
Relative Humidity: 5 to 95% (noncondensing)
Dimensions
Height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugs
Width: 45 mm (1.75 in)
Depth: 104 mm (4.11 in)
Mass
284 g (10 oz)
