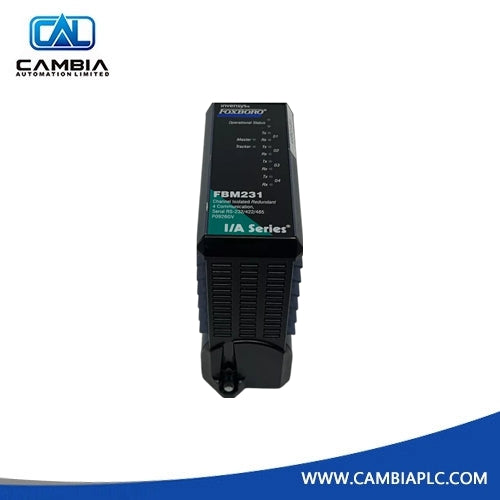

Foxboro FBM231 Field Device System Integrator Module New
FoxboroFBM231
overview
Two FBM231 modules combine to provide redundancy at the Fieldbus Module (FBM) level. This setup involves one module acting as the Master and the other as the Tracker module. Control station input points are updated from device inputs received by the Master via the network. Device output points are written by both the Master and Tracker modules, depending on the I/O driver. Automatic role switching occurs upon detection of problems such as heartbeat issues by the I/O driver, or users can manually switch roles via SMDH. Each FBM231 module features four ports individually configurable for RS-232, RS-422, or RS-485, enabling connectivity to multiple devices. Ports can be redundantly cabled to interface with dual-ported I/O devices in the plant.
Feature
Four ports, individually configurable for RS-232, RS-422, or RS-485 via software.
Supports RS-232, RS-422, or RS-485 communication standards.
I/O software driver downloadable from a protocol library.
Up to 2000 DCI block connections.
Communicates with up to 64 RS-485 or up to 4 direct connect RS-232 or RS-422 devices.
Integrates field device data into a Foxboro control database.
Designed for field mounting in Class G3 (harsh) environments.
Specifications
Operating Conditions
Temperature: -20 to +70°C (-4 to +158°F)
Relative Humidity: 5 to 95% (non-condensing)
Storage Conditions
Temperature: -40 to +70°C (-40 to +158°F)
Relative Humidity: 5 to 95% (non-condensing)
Dimensions
Height: 102 mm (4 in)
- Including mounting lugs: 114 mm (4.5 in)
Width: 45 mm (1.75 in)
Depth: 104 mm (4.11 in)
Mass
284 g (10 oz)
