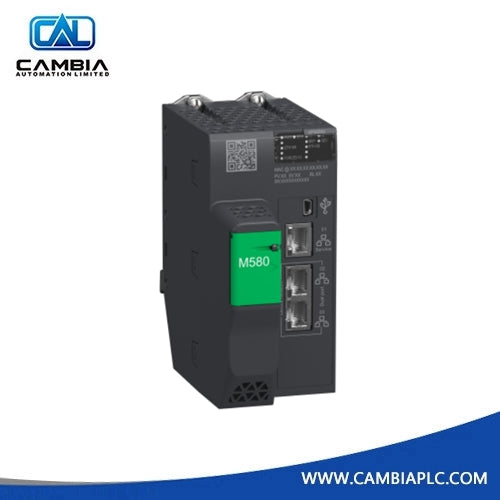

Ethernet RIO Drop Adapter BMECRA31210 Schneider X80
Manufacturer: Schneider
Product No.: BMECRA31210
Product Type: RIO Drop Adapter
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric BMECRA31210 is an Ethernet RIO drop adapter for Modicon X80 remote I/O stations on M580 systems. It provides dual Ethernet RIO ports with RSTP and a service port for distributed remote racks.
Key Specs
- Platform: Modicon X80 / M580
- Type: Ethernet RIO drop adapter
- Ports: 2× Ethernet RIO (RSTP) + 1× service / distributed equipment
- Rate: 10/100 Mbit/s
- Capacity: Up to 1024 discrete / 256 analog channels per drop class
- Features: CCOTF, time stamping, port mirroring, Device DDT
Why Choose This
- Enables Ethernet remote I/O drops on M580 architectures
- RSTP support for ring redundancy
- Configuration change on the fly (CCOTF)
- Supports extended X80 module types in remote racks
Common Questions
- Type? Ethernet RIO drop adapter.
- Ports? 2 RIO + 1 service.
- System? Modicon M580 / X80.
Mounting Steps
- Install the adapter in the first slot of the remote X80 rack.
- Connect dual Ethernet RIO cables for the network ring or chain.
- Configure the drop address and modules in Control Expert.
- Power up and verify RIO link and module status.
- Test I/O exchange with the main CPU.
Buying Advice
- Required for each Ethernet RIO drop on M580 systems.
- Confirm CPU model supports the CRA adapter (BMEP/BMEH 5840 class).
- Critical spare for M580 remote I/O drops.
