Emerson

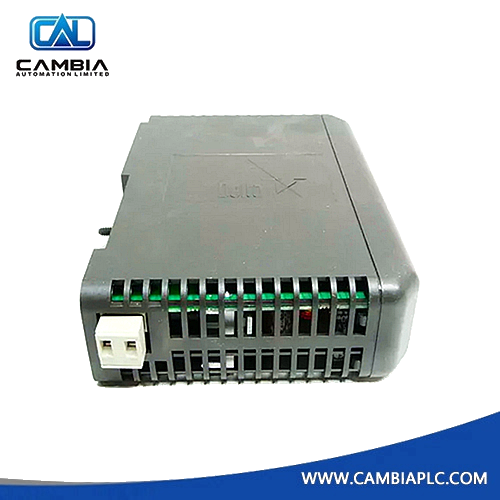

Emerson VE5009 KJ1501X1-BC3 System Dual DC Power Supply Module
In stock, ready to ship
Manufacturer: Emerson
Product No.: VE5009 KJ1501X1-BC3
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Emerson VE5009 KJ1501X1-BC3
Dual DC Power Supply Module
Product Description
The Emerson VE5009 KJ1501X1-BC3 is a dual-input DC power supply module engineered for use in DeltaV Distributed Control Systems (DCS).
Technical Specifications
-
Model Number: VE5009 KJ1501X1-BC3
-
Input Voltage:
-
12V DC at 14.8A
-
24V DC at 6.1A
-
Output Voltages:
-
12V DC at 13A (from 12V input)
-
12V DC at 8A (from 24V input)
-
5.1V DC at 2.0A
-
3.4V DC at 2.0A
-
Total Output Power: 10.2W (from +5.1V and +3.4V combined)
-
Operating Temperature: -40°C to +70°C
-
Shock Resistance: 10g, ½ sine wave for 11 ms
-
Vibration Resistance:
-
1 mm peak-to-peak (2–13.2 Hz)
-
0.7g (13.2–150 Hz)
-
Humidity Range: 5% to 95% non-condensing
-
Airborne Contaminants: ISA-S71.04-1985 Class G3
-
Dimensions: 34.7 cm × 17 cm × 3.3 cm
-
Weight: 0.5 kg
