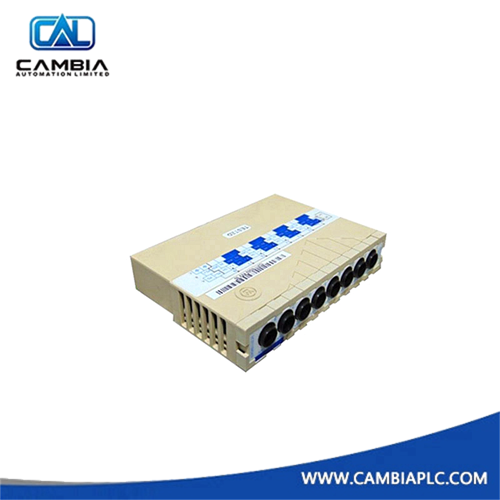

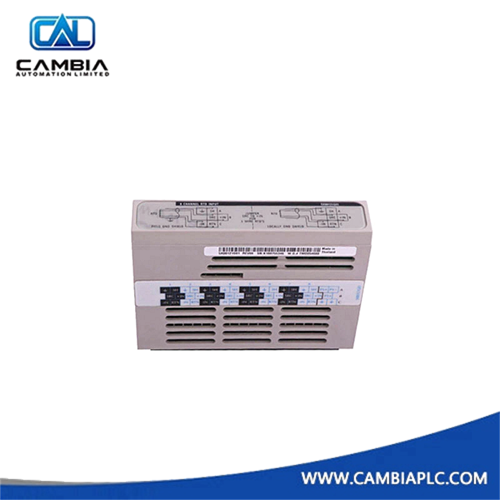

Emerson Ovation | 1C31222G01 | High Power Relay Output Base
Manufacturer: Ovation
Product No.: 1C31222G01
Product Type: Relay Output Base
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson Ovation 1C31222G01 is a high-power relay output base module for the Ovation DCS. It converts digital commands into relay outputs capable of switching higher-power field loads such as motors, pumps, solenoids and contactors.
Key Specs
- Type: Relay Output Base – High Power
- Channels: Multi-channel relay outputs class
- Function: High-power discrete switching
- Platform: Emerson Ovation DCS
- Mounting: Ovation rack / DO PMOD base configuration
- Application: High-load actuator and contactor control
Why Choose This
- Handles loads beyond standard solid-state digital outputs
- Direct interface to Ovation digital command paths
- Industrial construction for continuous plant duty
- Suitable for power plant auxiliary and process switching
Common Questions
- Type? High-power relay output base.
- Use? Switching higher-power field loads.
- System? Ovation DCS.
Mounting Steps
- Install the base in the designated Ovation chassis position.
- Wire field loads to the relay contacts observing voltage and current ratings.
- Connect control signals from the associated digital module if required.
- Power up and verify relay operation and status indication.
- Test under actual load conditions before returning to service.
Buying Advice
- Select when standard solid-state outputs cannot handle the load current.
- Confirm contact rating against the connected equipment.
- Critical spare for Ovation high-power relay output positions.
