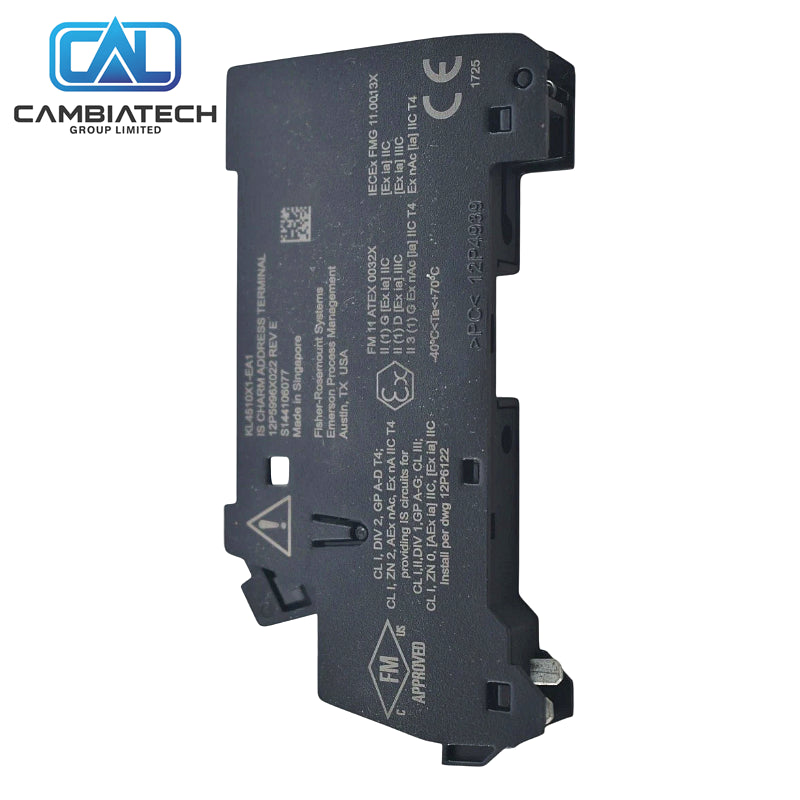

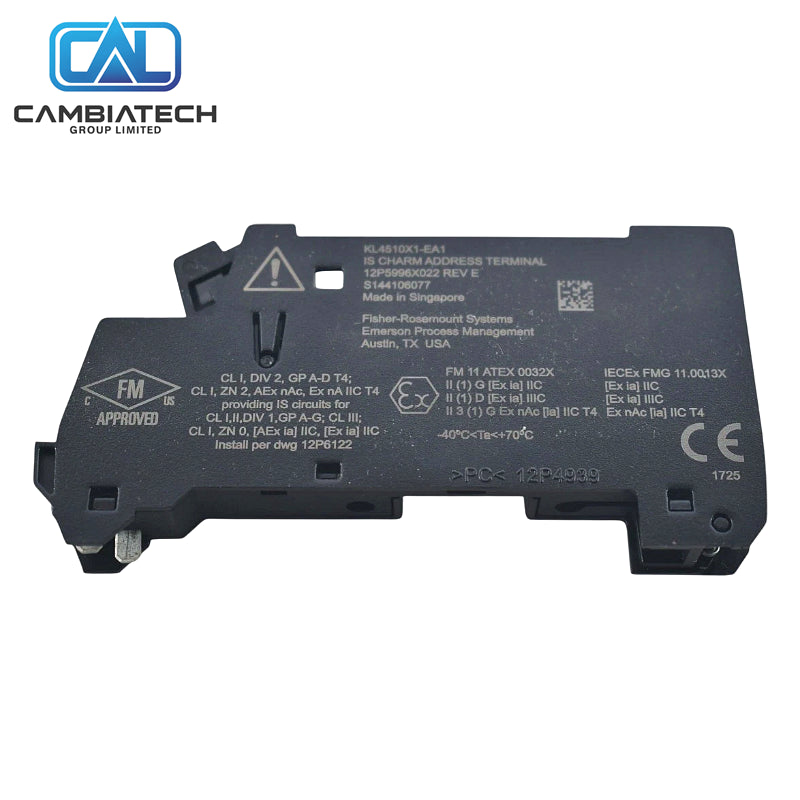

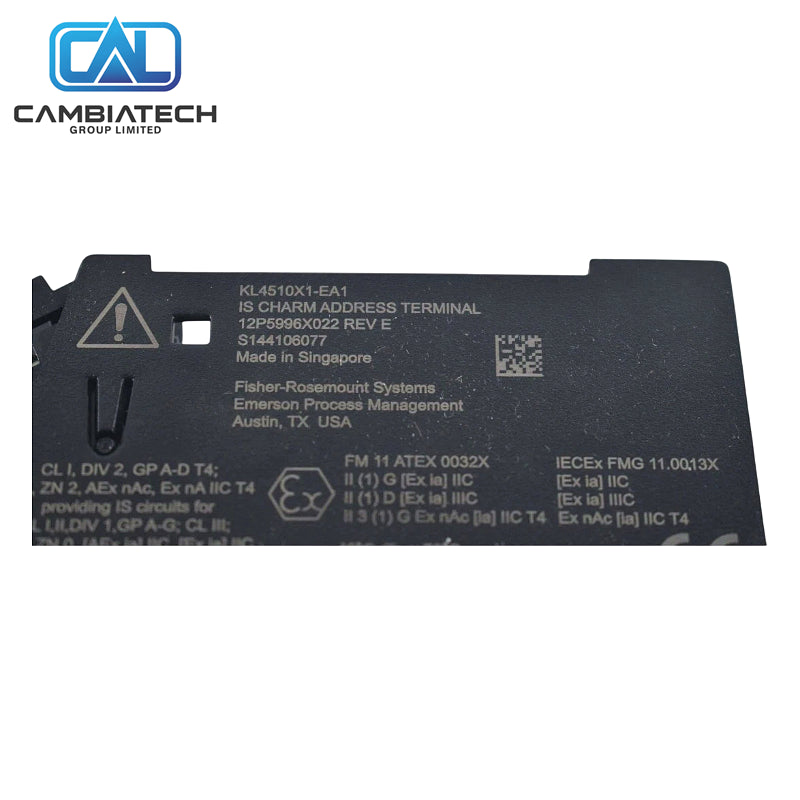

Emerson KL4510X1-EA1 I.S. CHARM Terminal Block Variant
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4510X1-EA1
Product Type: I.S. CHARM Terminal Block
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Emerson KL4510X1-EA1 is an intrinsically safe CHARM terminal block variant used in DeltaV Electronic Marshalling systems. It provides the field-side interface for I.S. rated CHARMs in classified locations.
Core Specs
- Type: I.S. CHARM Terminal Block
- Compatible with DeltaV CHARM I/O subsystem
- Operating temperature: -40 °C to +70 °C
- Environmental: ISA-S71.04 Class G3, 5–95 % RH non-condensing
- Shock / Vibration: 10 g half-sine / 0.7 g standard
- Hazardous area: Zone 2 / Class I Div 2 capable
Highlights
- Supports intrinsically safe field circuits
- Keyed mechanical interface prevents mis-insertion
- Designed for continuous industrial duty
- Integrates directly with CHARM baseplates
Common Questions
- Difference from DA1 version? Variant for specific I.S. CHARM configurations.
- Temperature rating? -40 °C to +70 °C.
- Can it be used in Zone 2? Yes, when installed per Emerson guidelines.
Mounting Steps
- Mount the terminal block on the CHARM carrier.
- Insert the corresponding I.S. CHARM module.
- Terminate field wires observing I.S. wiring practices.
- Confirm mechanical keying is engaged.
- Validate circuit integrity before system start-up.
Buying Advice
- Select the exact suffix (DA1 / EA1) matching your CHARM type.
- Always pair with the correct intrinsically safe CHARM.
- Recommended for safety-critical or hazardous-area nodes.
