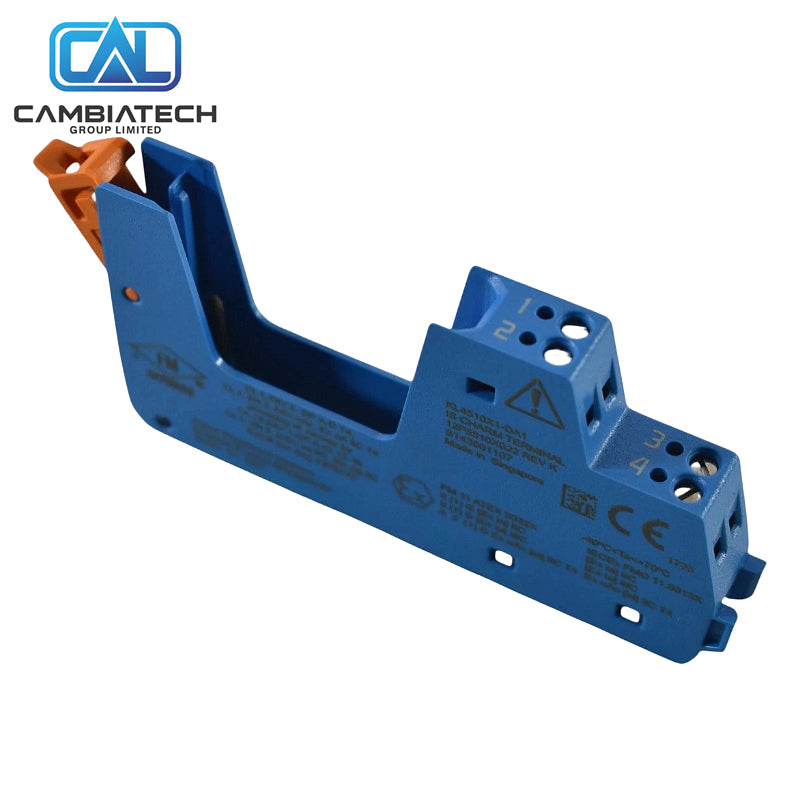

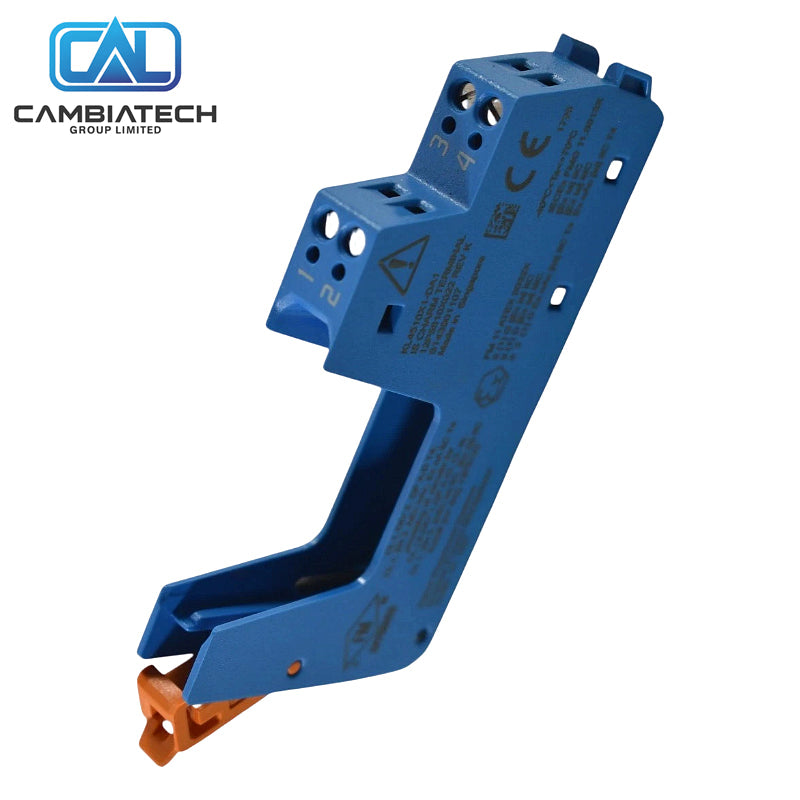

Emerson KL4510X1-DA1 I.S. CHARM Terminal Block
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4510X1-DA1
Product Type: I.S. CHARM Terminal Block
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Emerson KL4510X1-DA1 is an intrinsically safe CHARM terminal block for DeltaV Electronic Marshalling. It provides the field interface for I.S. CHARMs in hazardous locations.
Core Specs
- Type: Intrinsically Safe CHARM Terminal Block
- Field Circuit: +28 VDC at 45 mA
- Operating temperature: -40 °C to +70 °C
- Shock / Vibration: Standard CHARM ratings (10 g / 0.7 g)
- Humidity: 5–95 % non-condensing

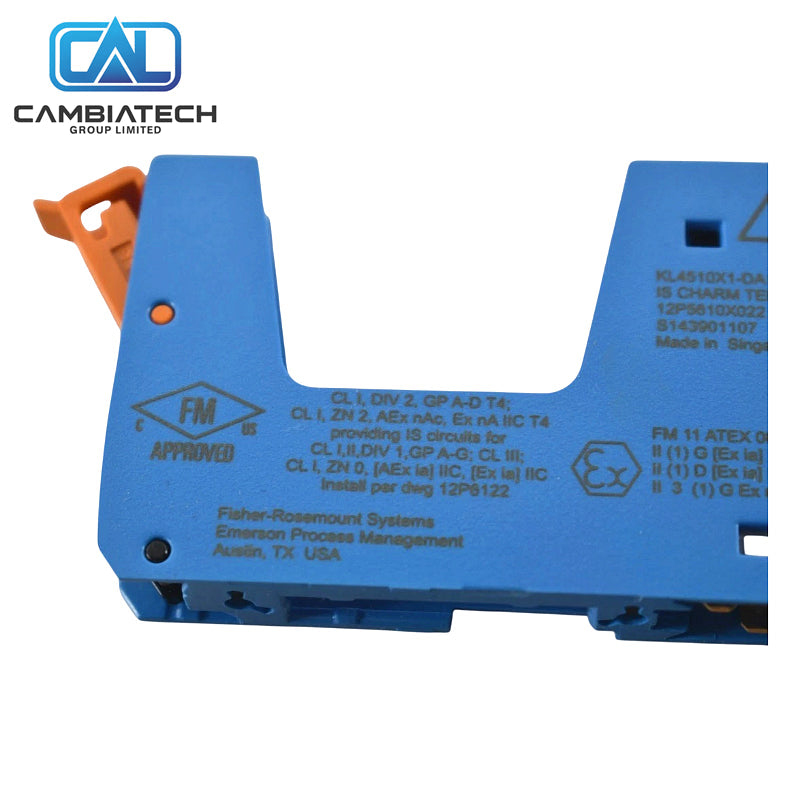

- Certifications: ATEX, IECEx, FM, UKEX Zone 2
Highlights
- Enables safe connection of I.S. CHARMs to field devices
- Keyed for correct CHARM insertion
- Rugged design for harsh process environments
- Supports energy-limited field circuits
Common Questions
- Is it intrinsically safe? Yes, designed for I.S. applications.
- Field power rating? +28 VDC at 45 mA.
- Temperature range? -40 °C to +70 °C.
Mounting Steps
- Install the KL4510X1-DA1 on the CHARM base carrier.
- Insert the compatible I.S. CHARM.
- Connect field wiring following I.S. segregation rules.
- Verify keying and secure all terminations.
- Perform loop checks before energizing.
Buying Advice
- Use only with matching intrinsically safe CHARMs.
- Follow Emerson I.S. installation guidelines strictly.
- Ideal for hazardous-area Electronic Marshalling nodes.
