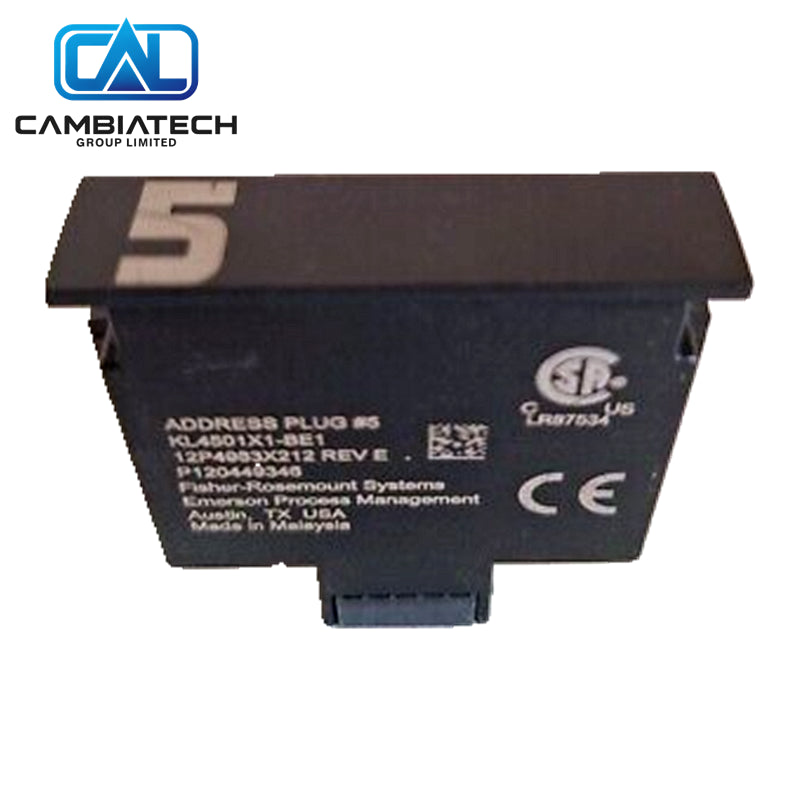

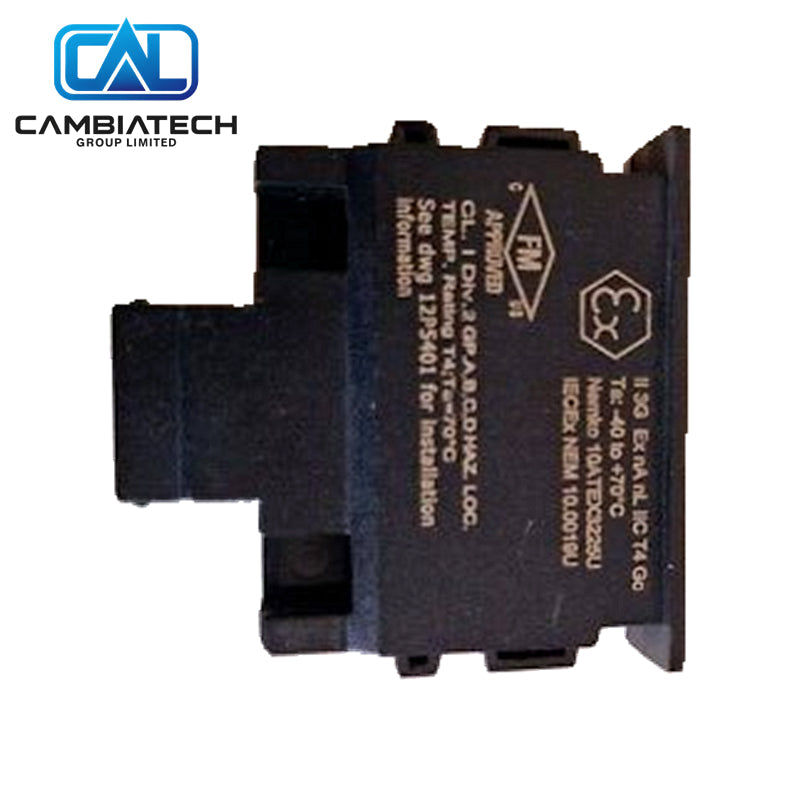

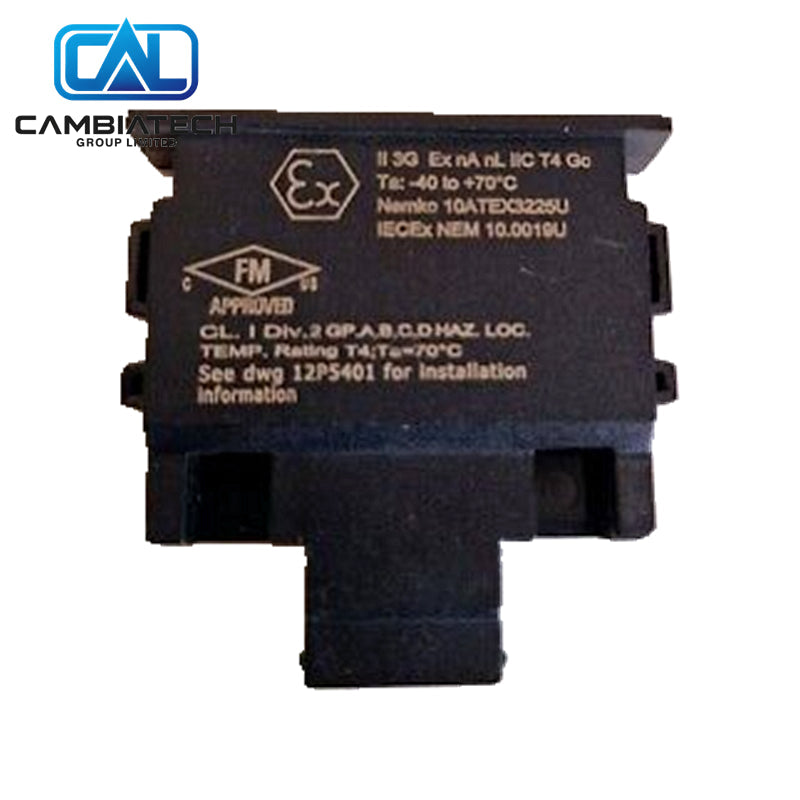

Emerson KL4501X1-BE1 CHARM Address Plug #5
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4501X1-BE1
Product Type: CHARM Address Plug
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KL4501X1-BE1 is the CHARM Address Plug #5 with key position 3C. It defines the address slot for the fifth CHARM position on the baseplate in DeltaV Electronic Marshalling systems.
Key Specs
- Type: CHARM Address Plug #5
- Key position: 3C
- CHARM Bus power: +6.5 V DC at 7 mA
- Operating temperature: −40 °C to +70 °C
- Certifications: ATEX, IECEx, Class I Div 2 / Zone 2
- System: DeltaV CHARM I/O
Why Choose This
- Specific keying for address position #5
- Prevents incorrect CHARM insertion
- Hazardous-area certified
- Maintenance-free passive component
Common Questions
- Position? Address Plug #5.
- Key? 3C.
- System? DeltaV Electronic Marshalling.
Mounting Steps
- De-energize the CHARM carrier.
- Insert the BE1 plug into the #5 position.
- Confirm mechanical keying.
- Install the corresponding CHARM module.
- Power up and verify address.
Buying Advice
- Required specifically for the fifth CHARM slot.
- Do not interchange with other key positions.
- Useful spare for multi-CHARM carriers.
