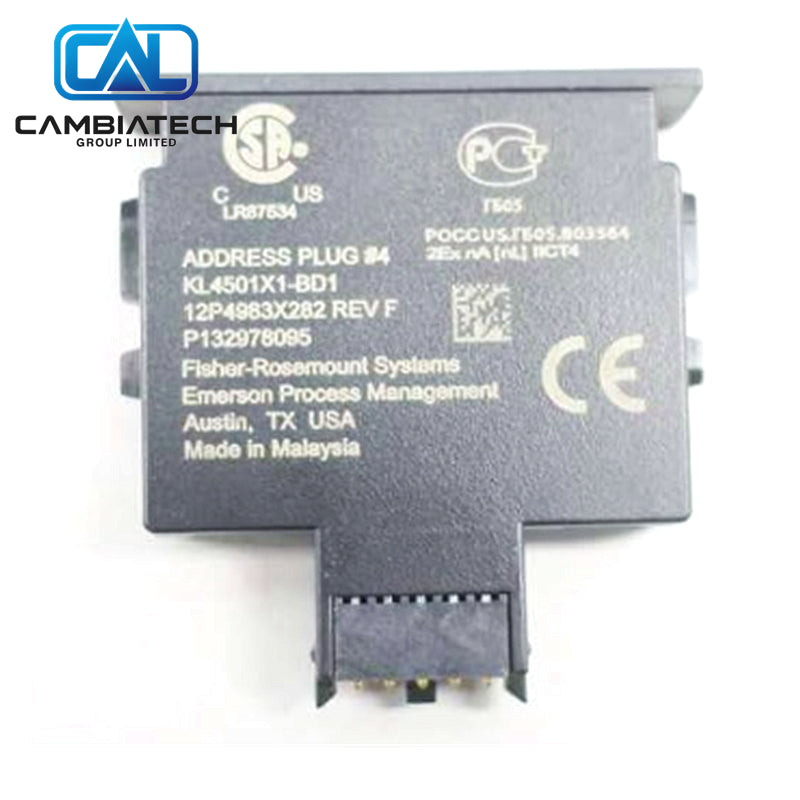

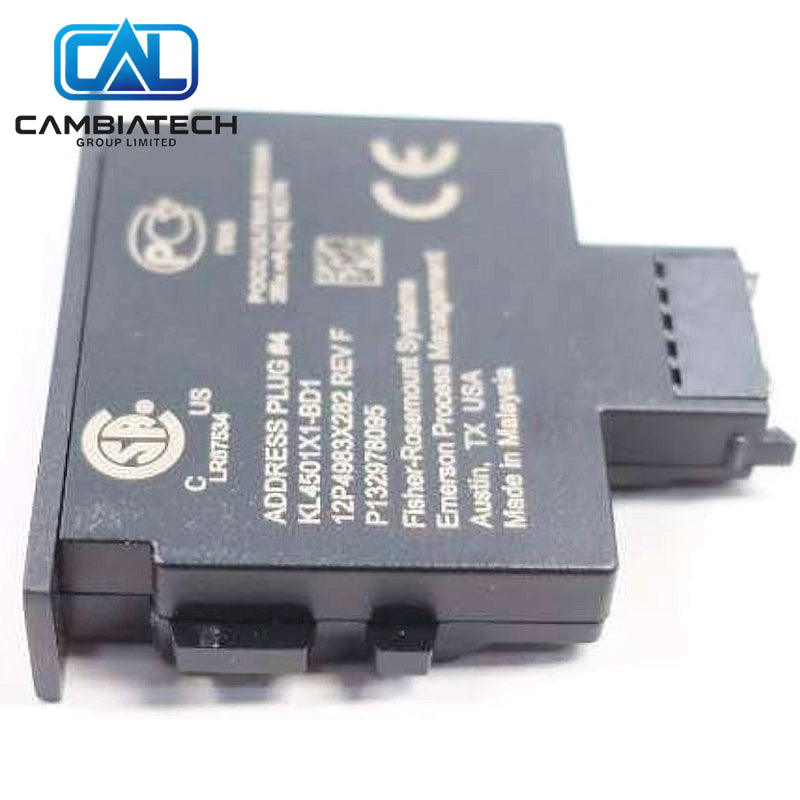

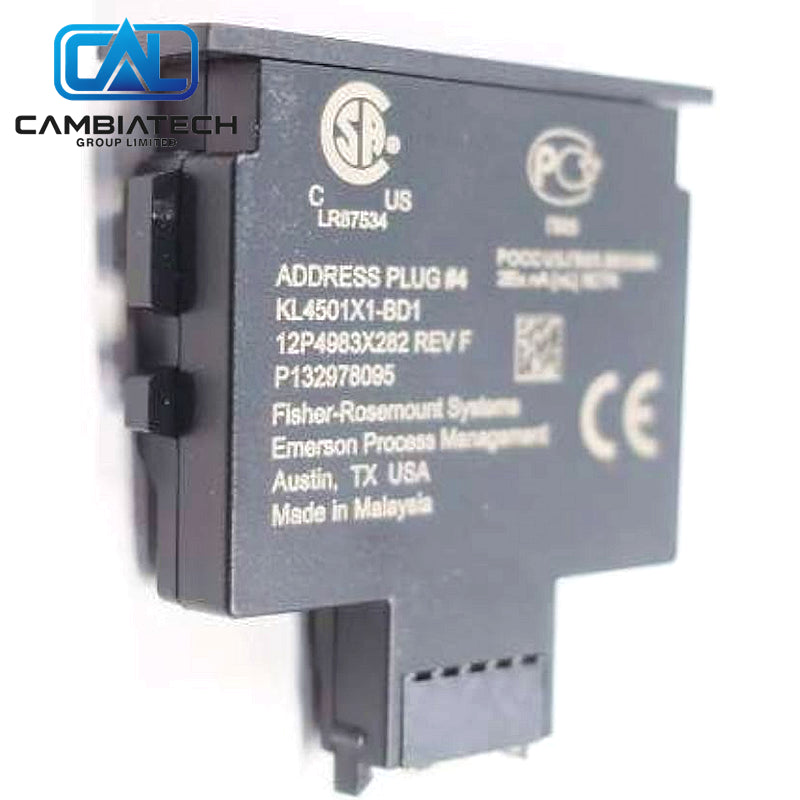

Emerson | KL4501X1-BD1 | CHARM Address Plug #4
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4501X1-BD1
Product Type: CHARM Address Plug
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KL4501X1-BD1 is a CHARM Address Plug used in DeltaV Electronic Marshalling systems. It assigns a unique address and provides mechanical keying for the corresponding CHARM slot on the carrier.
Key Specs
- Type: CHARM Address Plug
- Key position: Address Plug #4 (3A class)
- CHARM Bus power: +6.5 V DC at 7 mA
- Operating temperature: −40 °C to +70 °C
- System: DeltaV CHARM I/O subsystem
- Environmental: ISA-S71.04 Class G3
Why Choose This
- Ensures correct CHARM addressing and keying
- Prevents incorrect module installation
- Low power draw from CHARM bus
- Certified for industrial and hazardous area use
Common Questions
- Function? Address and keying plug for CHARM.
- Key position? #4.
- Hot-swap? De-energize before insertion/removal in hazardous areas.
Mounting Steps
- Ensure the carrier is de-energized.
- Insert the address plug into the correct CHARM terminal block position.
- Verify mechanical keying engagement.
- Install the matching CHARM module.
- Power up and confirm address recognition.
Buying Advice
- Match the exact key position required by the CHARM slot.
- Keep spares for each address position used in the system.
- Essential for proper Electronic Marshalling configuration.
