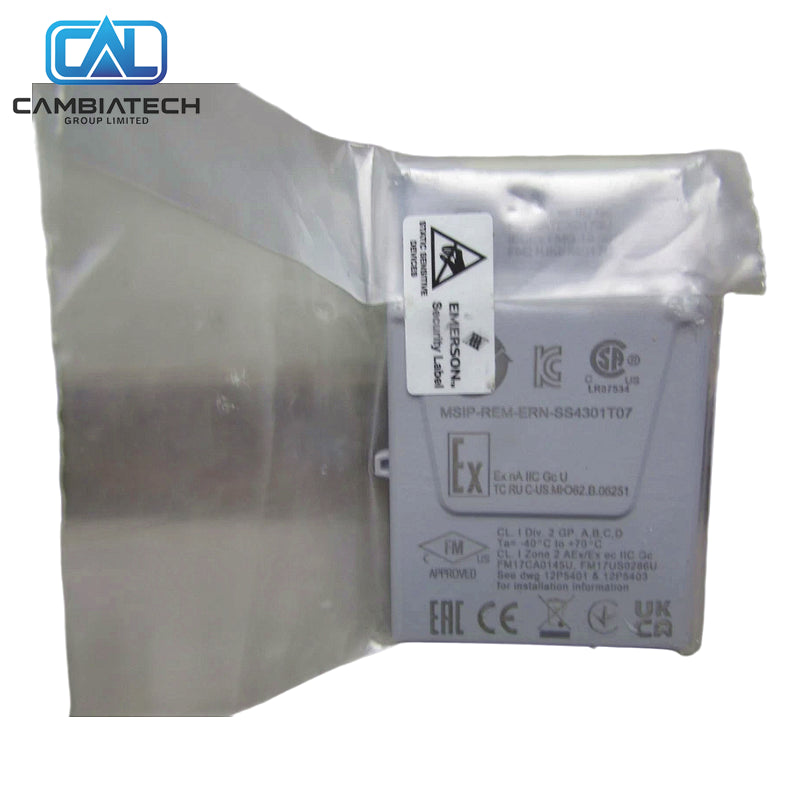

Emerson KL3005X1-BA1 DeltaV DI 24VDC Isolated CHARM
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL3005X1-BA1
Product Type: Discrete Input CHARM
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KL3005X1-BA1 is an isolated 24 VDC discrete input CHARM module for the DeltaV Electronic Marshalling system. It provides reliable digital signal acquisition with channel isolation for industrial process applications.
- Module Type: Discrete Input CHARM (Isolated)
- Input Signal: 24 VDC
- Isolation: Channel isolation
- Operating Temperature: -40 °C to +70 °C
- System Compatibility: DeltaV CHARM I/O Subsystem
- Mounting: CHARM terminal block on baseplate
Key Features
- Galvanic isolation for noise immunity and ground loop prevention
- Single-channel granularity for flexible Electronic Marshalling
- Suitable for Zone 2 / Class I Division 2 installations
- Seamless integration with CIOC architectures
FAQ
- What signal type does it accept? Isolated 24 VDC discrete inputs.
- Is it designed for DeltaV Electronic Marshalling? Yes.
- What temperature range is supported? -40 °C to +70 °C.
Installation Guide
- Install the matching CHARM terminal block on the baseplate.
- Insert the KL3005X1-BA1 CHARM into the terminal block until fully seated.
- Connect field wiring to the terminal block according to the wiring diagram.
- Configure the channel type in DeltaV Explorer.
- Verify status indicators and signal integrity.
Selection Tips
- Select for isolated 24 VDC discrete sensing in DeltaV systems.
- Confirm terminal block keying matches the CHARM type.
- Use in applications requiring channel-level isolation and flexibility.
