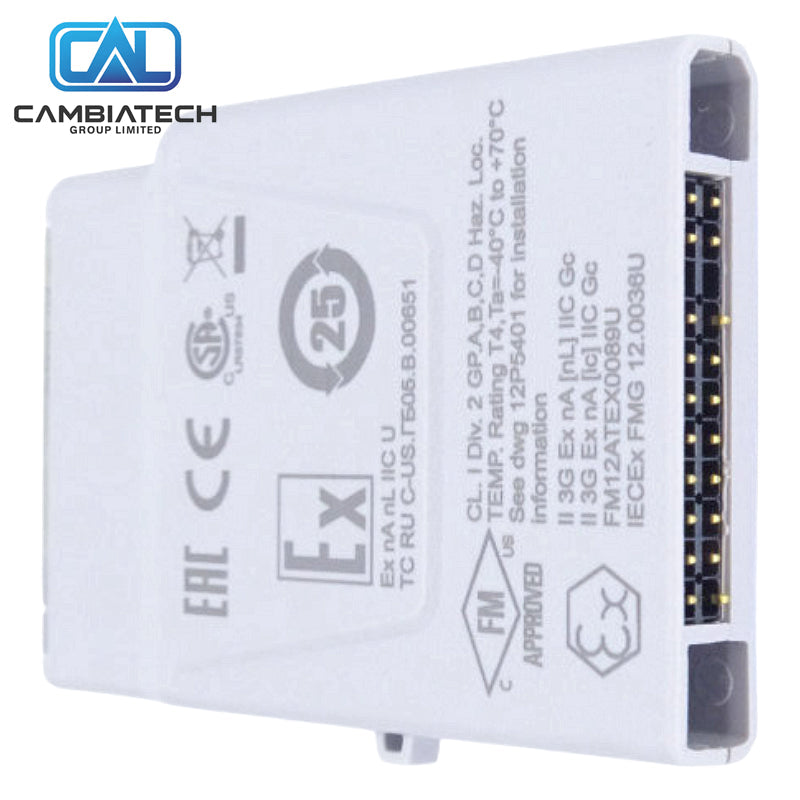

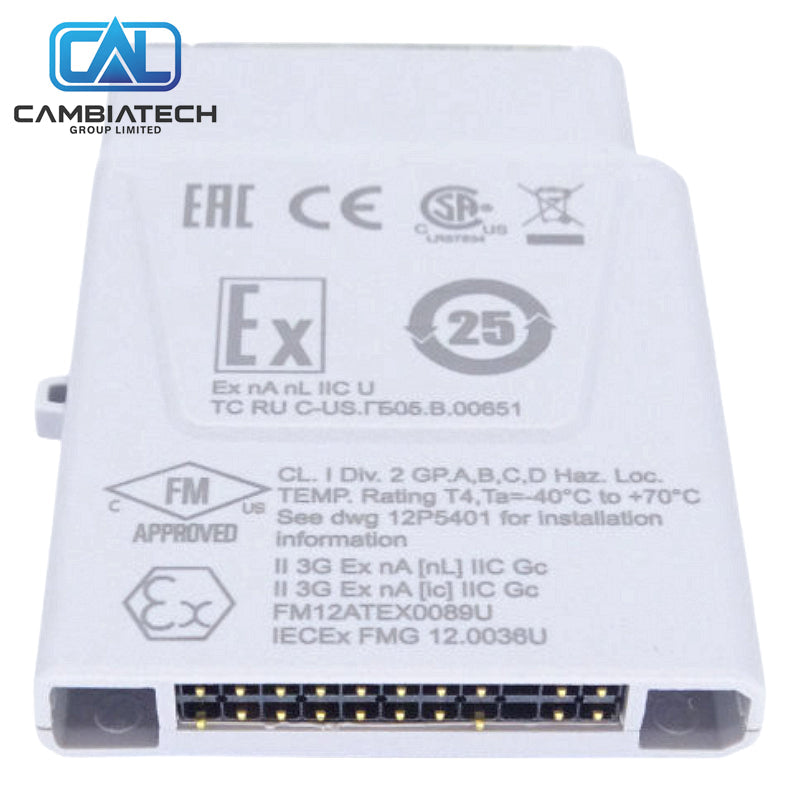

Emerson KL3003X1-BA1 DI 24VDC Dry Contact CHARM
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL3003X1-BA1
Product Type: Discrete Input CHARM
Product Origin: USA
Payment: T/T
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Emerson KL3003X1-BA1 is a 24 VDC dry-contact discrete input CHARM designed for DeltaV Electronic Marshalling. It detects open/closed states from switches, pushbuttons and relay contacts.
Core Specs
- Input type: Dry contact (24 VDC sensing)
- CHARM Bus Power: +6.3 VDC at 32 mA
- Field Circuit: +24 VDC at 10 mA
- Operating temperature: -40 °C to +70 °C
- Terminal key position: 2C
- Shock / Vibration: 10 g / 0.7 g standard CHARM ratings
Highlights
- Low-side sense dry-contact detection
- Built-in diagnostics for signal integrity
- ATEX / IECEx / FM / UKEX Zone 2 ready
- Plug-and-play on CHARM baseplates
Common Questions
- What contacts does it read? Dry contacts at 24 VDC nominal.
- Key position? 2C.
- Hazardous area use? Yes, certified for Zone 2 / Div 2.
Mounting Steps
- Install the keyed terminal block on the baseplate.
- Push the CHARM fully into place.
- Connect dry-contact field wiring.
- Configure the channel as discrete input in DeltaV.
- Test open/closed status indication.
Buying Advice
- Ideal for pushbuttons, limit switches and relay monitoring.
- Confirm key position 2C before ordering.
- Use when simple dry-contact sensing is required.
