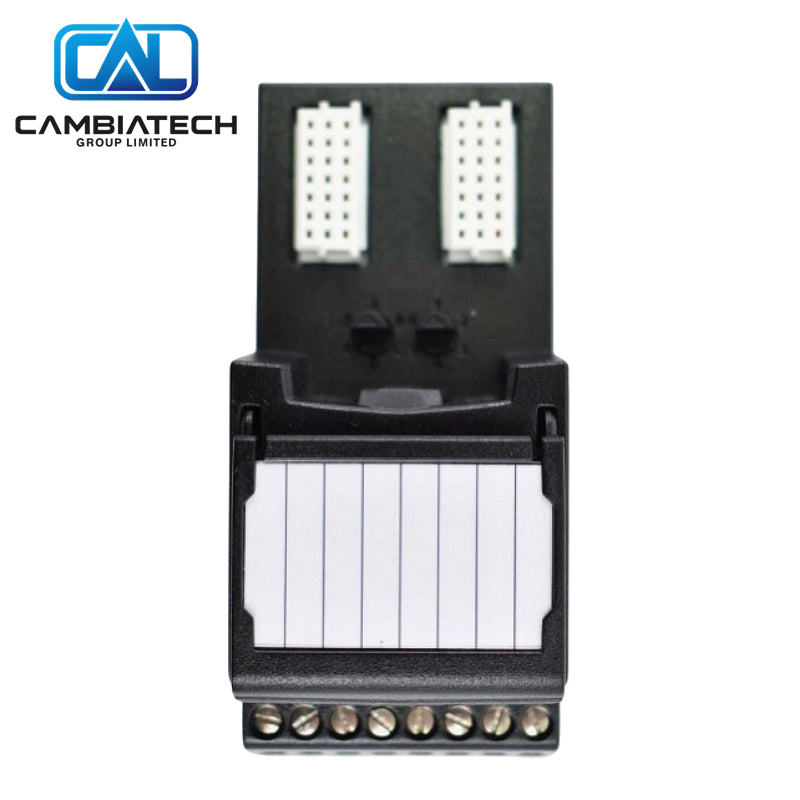

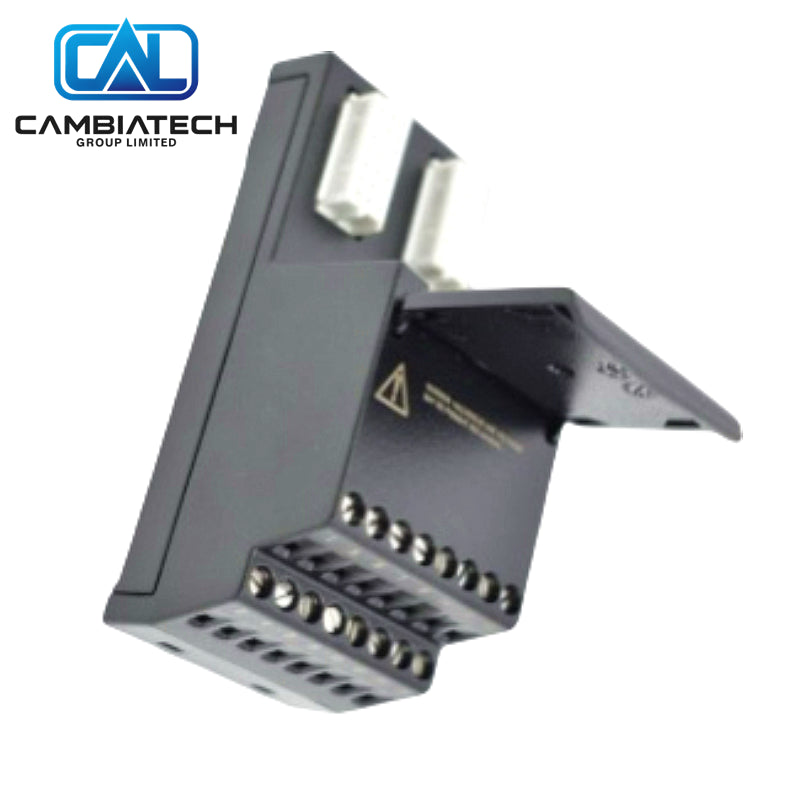

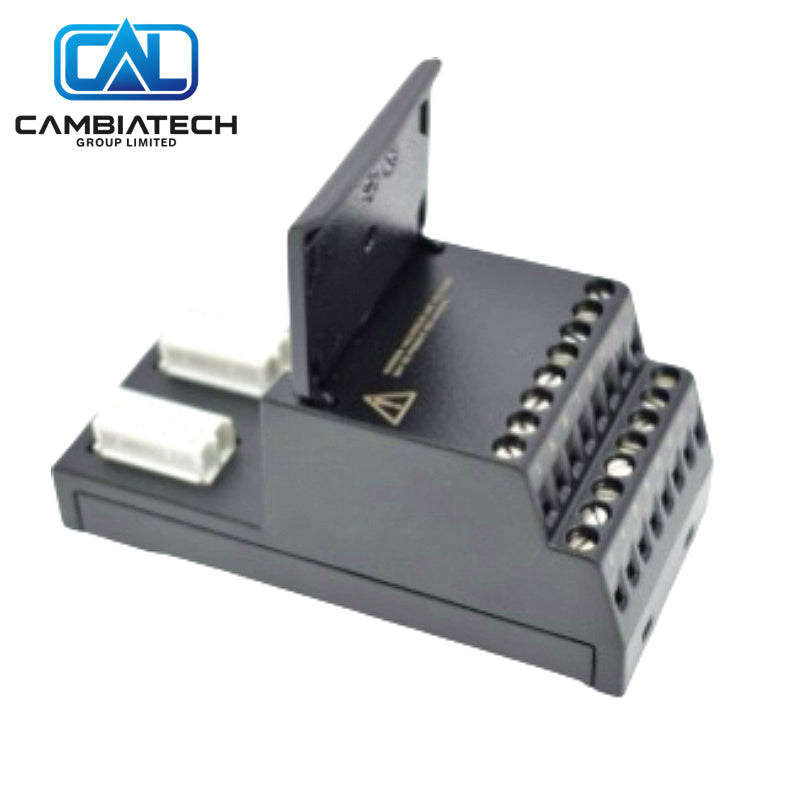

Emerson KJ4006X1-BB1 8-Channel Terminal Block DeltaV
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ4006X1-BB1
Product Type: Terminal Block
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KJ4006X1-BB1 is an 8-channel terminal block for DeltaV I/O systems. It provides field wiring termination with rotary keying and is certified for hazardous-area installations.
Key Specs
- Type: 8-Channel Terminal Block
- Field power: 30 VDC at 100 mA (nL/ic) / 60 VDC at 1 A (ec)
- Operating temperature: −40 °C to +70 °C
- Keying: Rotary key matched to I/O card
- System: DeltaV
- Hazardous area: ATEX / IECEx / FM certified
Why Choose This
- 8-channel field termination
- Rotary keying prevents mismating
- Hazardous-area certified
- Maintenance-free design
Common Questions
- Channels? 8.
- Keying? Rotary, card-matched.
- Hot-swap? Only when no I/O card or field wiring is connected.
Mounting Steps
- Install the terminal block on the carrier.
- Set the rotary key to the correct position.
- Wire the field devices.
- Insert the matching I/O card.
- Power up and verify channel status.
Buying Advice
- Match key position to the specific I/O card.
- Essential spare for 8-channel DeltaV I/O.
- Confirm area classification requirements.
