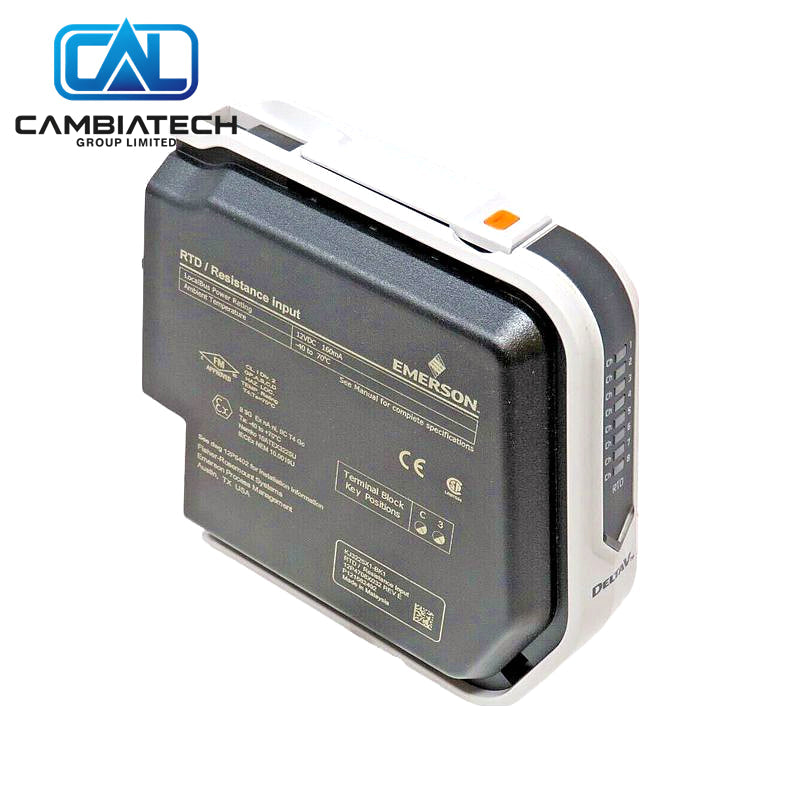

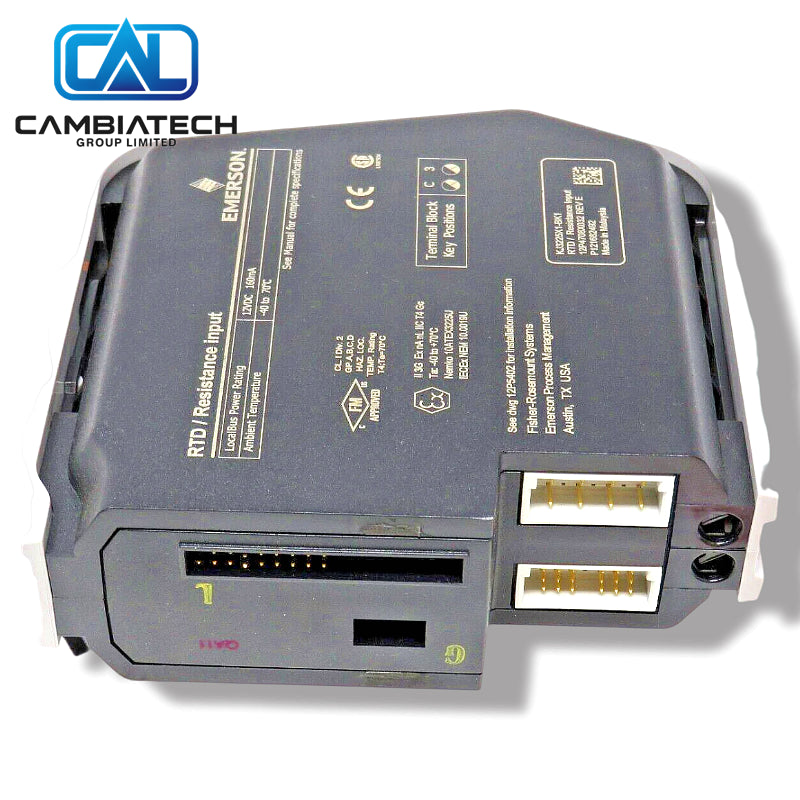

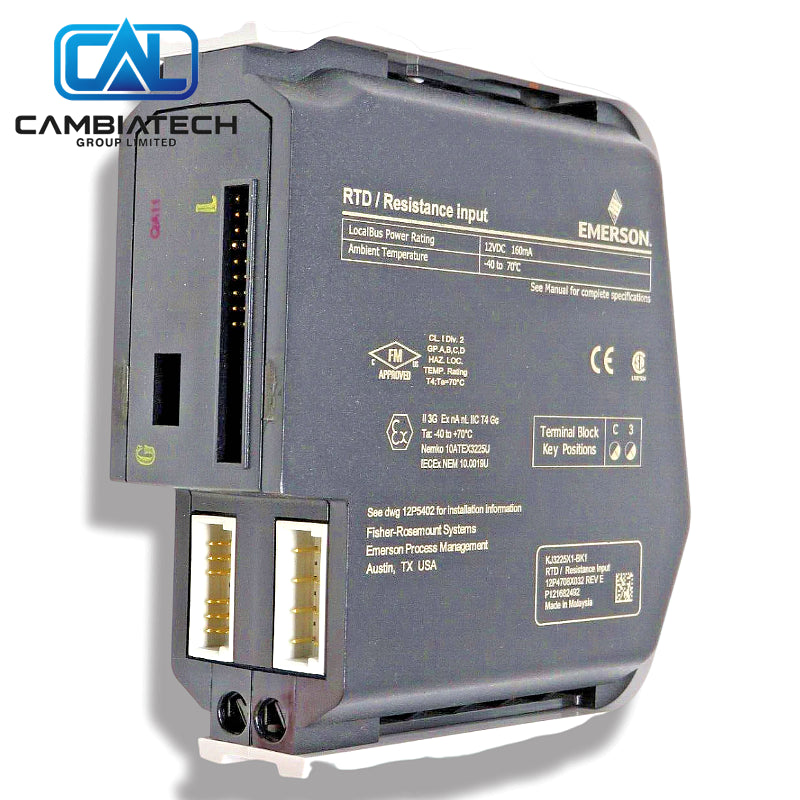

Emerson | KJ3225X1-BK1 | S-Series RTD/Resistance Input Card
Manufacturer: Emerson
Product No.: KJ3225X1-BK1
Product Type: RTD / Resistance Input Module
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KJ3225X1-BK1 is an S-Series RTD/Resistance Input Card for DeltaV systems. It provides accurate temperature and resistance measurement and is certified for hazardous area applications.
Key Specs
- Type: S-Series RTD / Resistance Input
- Local Bus Power: 12 VDC at 160 mA
- Terminal Block Key: C3
- Operating temperature: −40 °C to +70 °C
- Hazardous area: ATEX / IECEx / FM Zone 2 / Div 2 class
- System: DeltaV S-series
Why Choose This
- Dedicated RTD and resistance measurement
- Hazardous-area certified
- Supports redundant pair installation
- Maintenance-free design
Common Questions
- Function? RTD / resistance input.
- Key position? C3.
- System? DeltaV S-series.
Mounting Steps
- De-energize system and field power.
- Install the matching terminal block with C3 key.
- Insert the card into the S-series carrier.
- Wire RTD or resistance sensors.
- Power up and configure in DeltaV.
Buying Advice
- Confirm key position and carrier compatibility.
- Useful spare for temperature measurement nodes.
- Check hazardous-area certification requirements.
