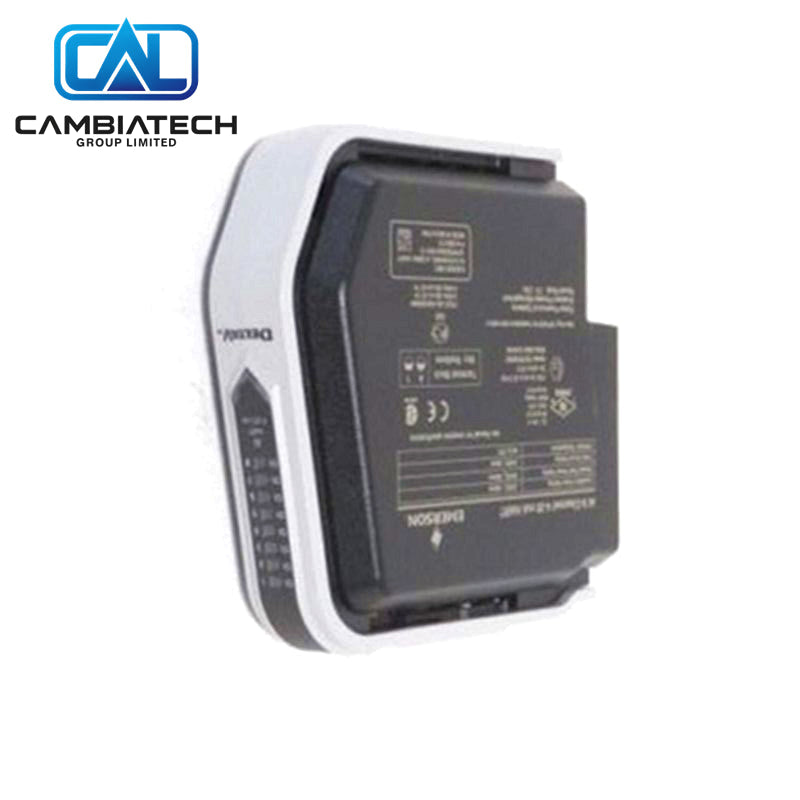

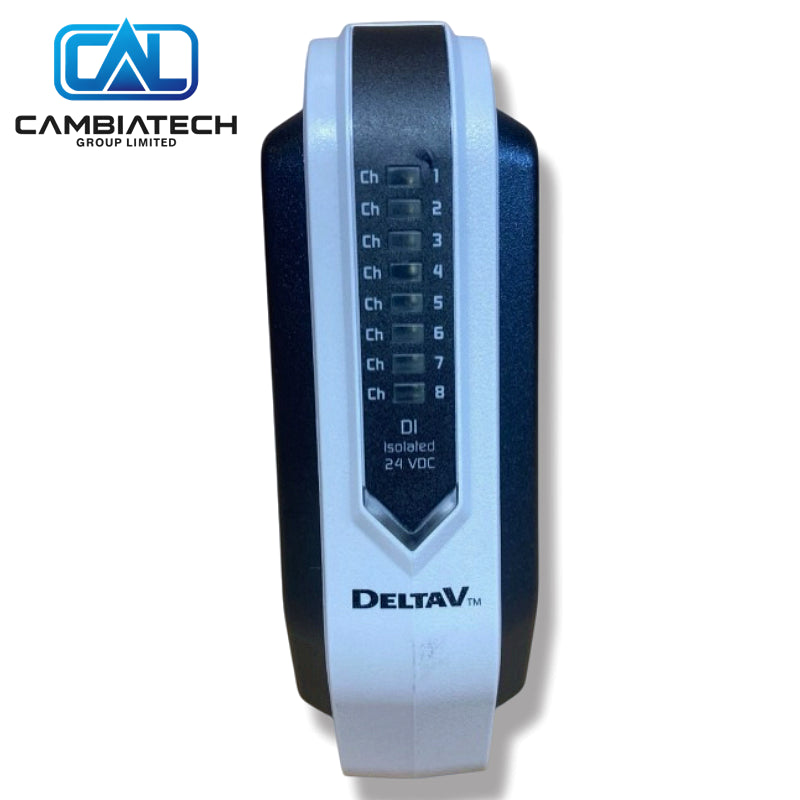

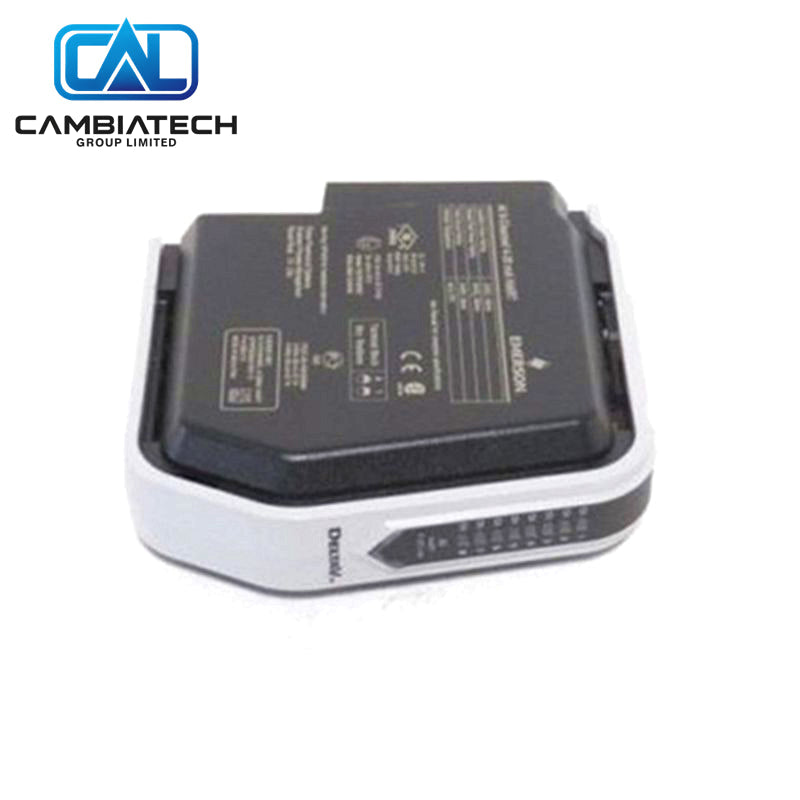

Emerson | KJ3206X1-BK1 | S-Series 8ch DI 24VDC Isolated Card
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ3206X1-BK1
Product Type: Digital Input Module
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KJ3206X1-BK1 is an S-Series 8-channel discrete input module for DeltaV systems. It accepts 24 VDC signals with channel isolation and is designed for reliable digital monitoring in industrial and hazardous-area applications.
Key Specs
- Channels: 8 isolated digital inputs
- Input voltage: 24 VDC
- Local Bus Power: 12 VDC at 100 mA
- Field Circuit: 24 VDC at 6 mA per channel
- Key position: B2
- Operating temperature: −40 °C to +70 °C
- System: DeltaV S-series
Why Choose This
- Isolated 24 VDC digital inputs
- Hazardous-area certified
- Compact S-series form factor
- Reliable for discrete sensing applications
Common Questions
- Channels? 8 DI isolated.
- Voltage? 24 VDC.
- Key? B2.
Mounting Steps
- Install the matching terminal block with correct key position.
- Insert the KJ3206X1-BK1 into the S-series carrier.
- Wire the 24 VDC field inputs.
- Configure channels in DeltaV.
- Verify status LEDs and input readings.
Buying Advice
- Select for multi-point isolated 24 VDC digital input needs.
- Confirm terminal block and carrier compatibility.
- Useful spare for S-series discrete input racks.
