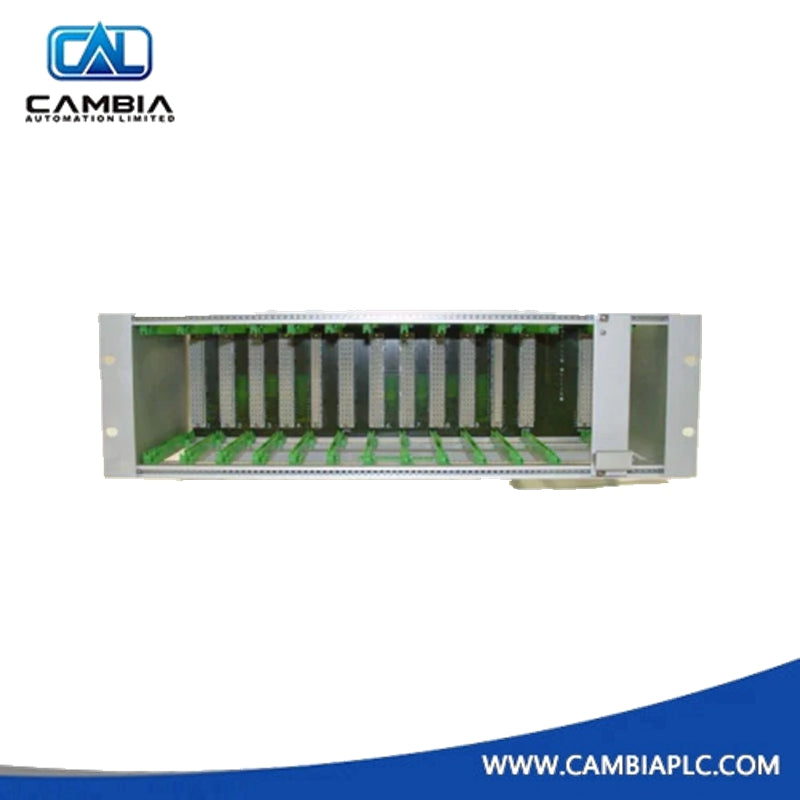

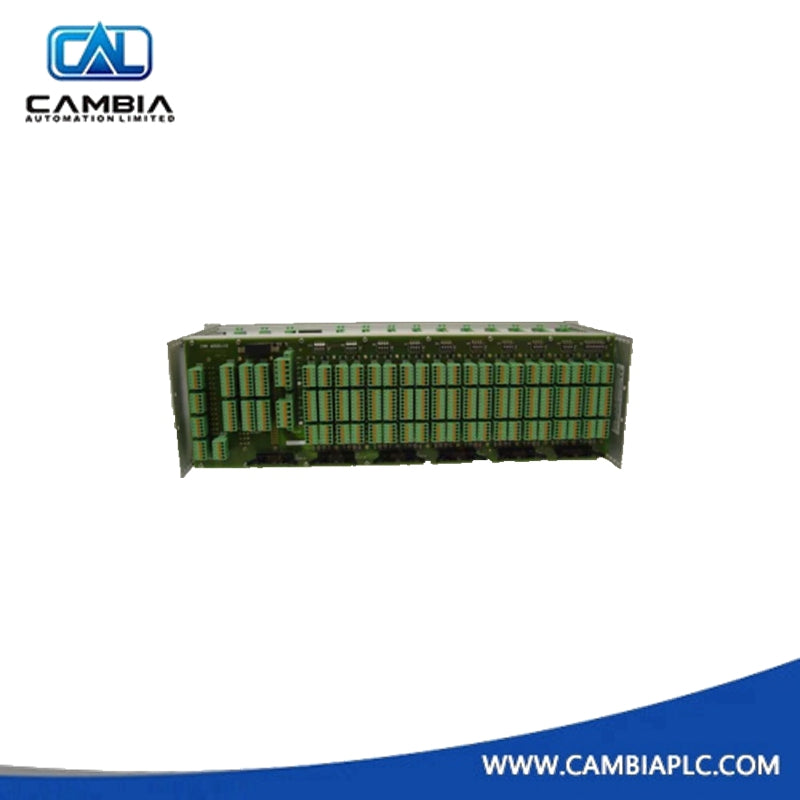

EMERSON IMR6000/10 Monitoring Module

The Emerson Epro IMR6000/10 is a high-performance system frame module designed for integration within the MMS 6000 machine monitoring system. It provides a robust platform for adapting and integrating various signal processing components, ensuring reliable industrial condition monitoring and diagnostics. The modular design supports flexible configuration options tailored to diverse machine monitoring requirements.

Technical Specifications:

• Model: IMR6000/10

• Brand: Emerson Epro

• Type: System frame module for MMS 6000 series

• Input Voltage Range: 0–10 V

• Output Voltage Range: 0–10 V

• Operating Temperature: -40°C to +85°C

• Communication Port: RS485 bus interface

• Dimensions: 100 mm × 50 mm × 20 mm

• Weight: Approximately 50 g

• Monitor Slots: 8 to 10 slots accommodating MMS 6000 monitoring modules

• Logic Card Slots: 2 to 4 slots for logic modules such as MMS 6740

• Interface Card Slot: 1 slot for interface cards including MMS 6830, MMS 6831, MMS 6824, MMS 6825

• Power Supply: Dual 24 V DC inputs with maximum current of 4 A per supply; total power consumption under 100 VA

Key Features:

• Modular and Flexible Design:
  Allows easy configuration and expansion of monitoring slots, logic cards, and interface cards to suit different application needs.

• Reliable Signal Adaptation:
  Capable of processing alarm signals, error indications, and various external inputs to ensure precise machine condition monitoring.

• RS485 Communication Bus:
  Enables scalable and reliable communication between multiple system frames within the MMS 6000 architecture.

• Key Monitor Support:
  The first slot supports key signal relay modules such as MMS 6310 or MMS 6312 for essential signal routing.

• Simplified Wiring:
  Utilizes spring cage and screw connection plugs to reduce wiring complexity and improve installation efficiency.

• Industrial Application Ready:
  Ideal for monitoring rotating machinery, compressors, turbine systems, and other critical industrial equipment.

• Compliance with LVLE Guidelines:
  Meets NEC standards for Low Voltage Limited Energy (LVLE) systems, ensuring safety and regulatory adherence.
