EMERSON EZ1000 Eddy Current Measurement System
In stock, ready to ship
Manufacturer: EMERSON
Product No.: EZ1000
Product Type: Eddy Current Measurement System
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

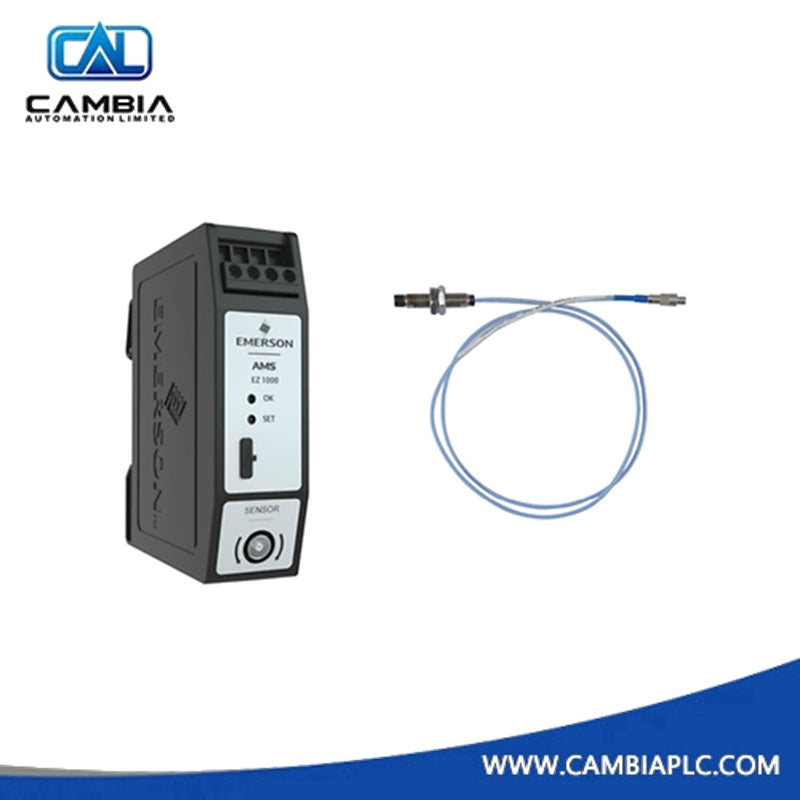

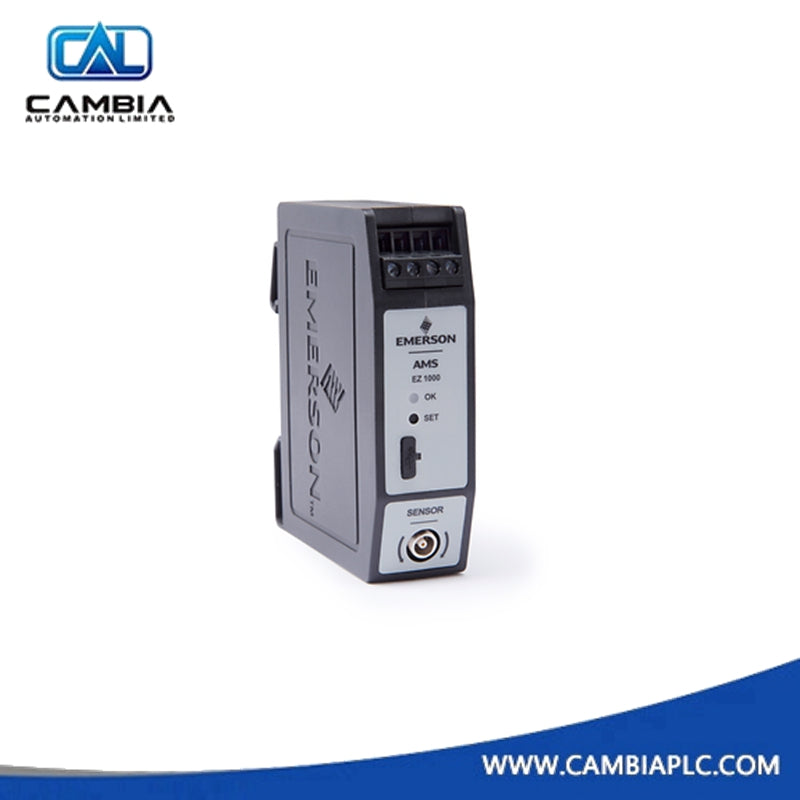

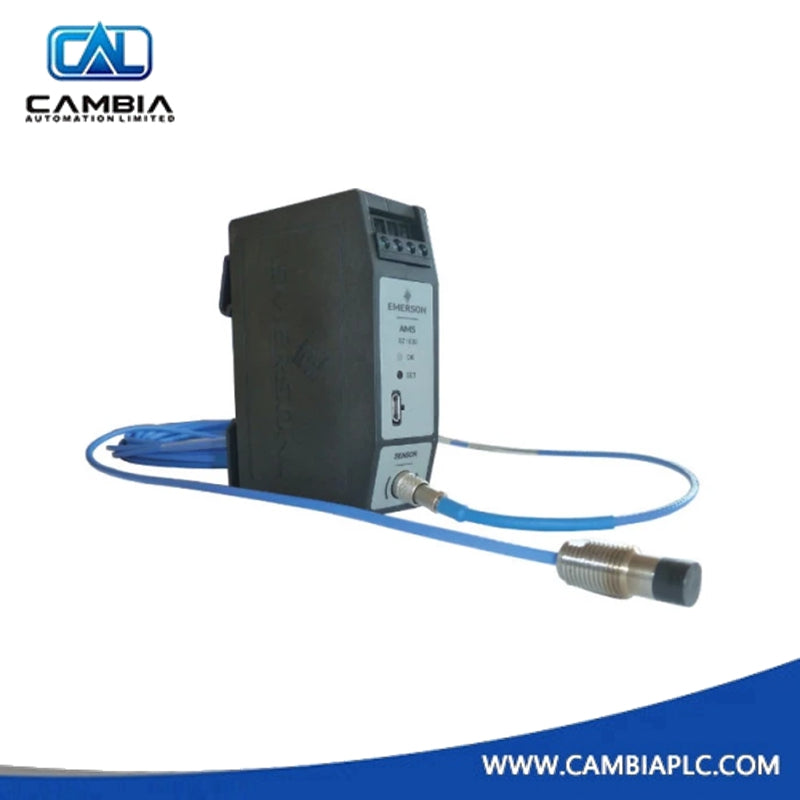

The AMS EZ 1000 is a complete and high-precision eddy current measurement system designed for reliable monitoring of shaft displacement, vibration, and gap measurements in rotating machinery. Engineered for demanding industrial environments, the system delivers accurate results and exceptional durability.
Key Features
-
Complete Measurement Chain
Includes a sensor, cable, and converter, available either as a full set or individual components for streamlined inventory management. -
API 670 Compliant
Fully meets the API 670 standard for eddy current vibration and displacement monitoring systems. -
Field Calibration Capable
Enables on-site calibration, minimizing downtime and simplifying maintenance when replacing components. -
Third-Party Sensor Compatibility
Compatible with non-proprietary (3rd-party) sensors, offering enhanced flexibility and reducing the need for excessive spare part inventory. -
Robust Sensor Design
Features oil-proof sensors for use in harsh operating environments without compromising measurement accuracy.
Measurement Capabilities
| Parameter | 5 mm Sensor | 8 mm Sensor |
|---|---|---|
| Linear Measurement Gap | 1 mm (40 mils) | 2 mm (80 mils) |
| Initial Air Gap | 0.25 mm (10 mils) | 0.5 mm (20 mils) |
| Minimum Shaft Diameter | 20 mm (0.98") | 25 mm (0.79") |
Performance Specifications
-
Deviation from Best Fit Straight Line (DSL):
±0.025 mm (±1 mil) over temperature range 0 to 45°C (32 to 113°F) -
Minimum Target Size:
2 mm (80 mils) -
Target Material (Ferromagnetic Steel):
-
42CrMo4 (AISI/SAE 4140)
-
P235S
-
C35 (AISI/SAE 1035)
-
34CrMo4 (AISI/SAE 4337, 4340)
-
26NiCrMoV14
-
ST 37, S235JR
-
X35CrMo17
-
Other materials available upon request
