Emerson DeltaV KL4210X1-BA1 CHARM Baseplate Terminals Address Terminal Pack
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4210X1-BA1
Product Type: Terminal Block
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

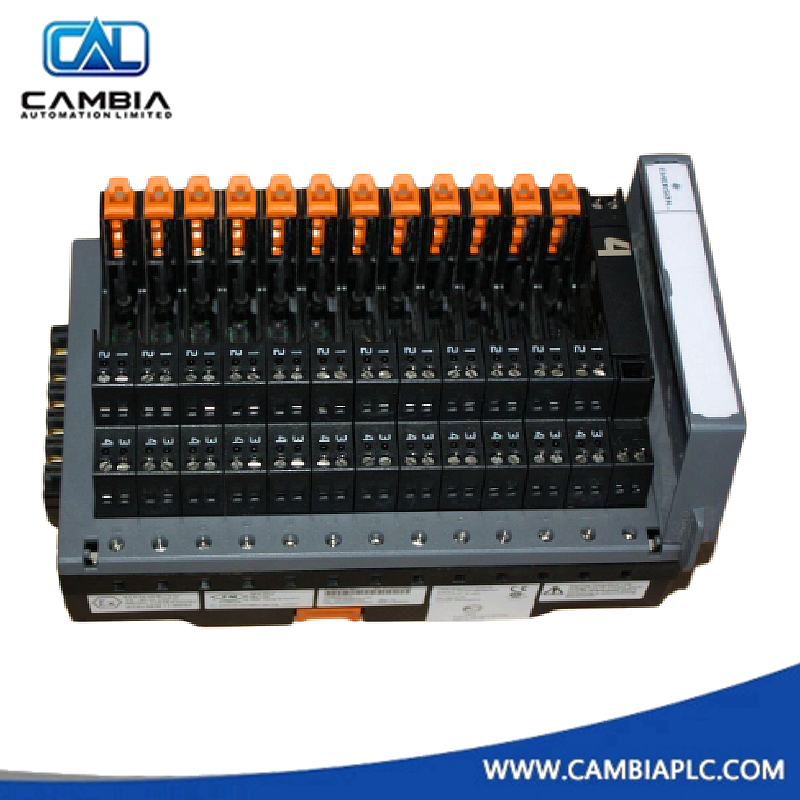

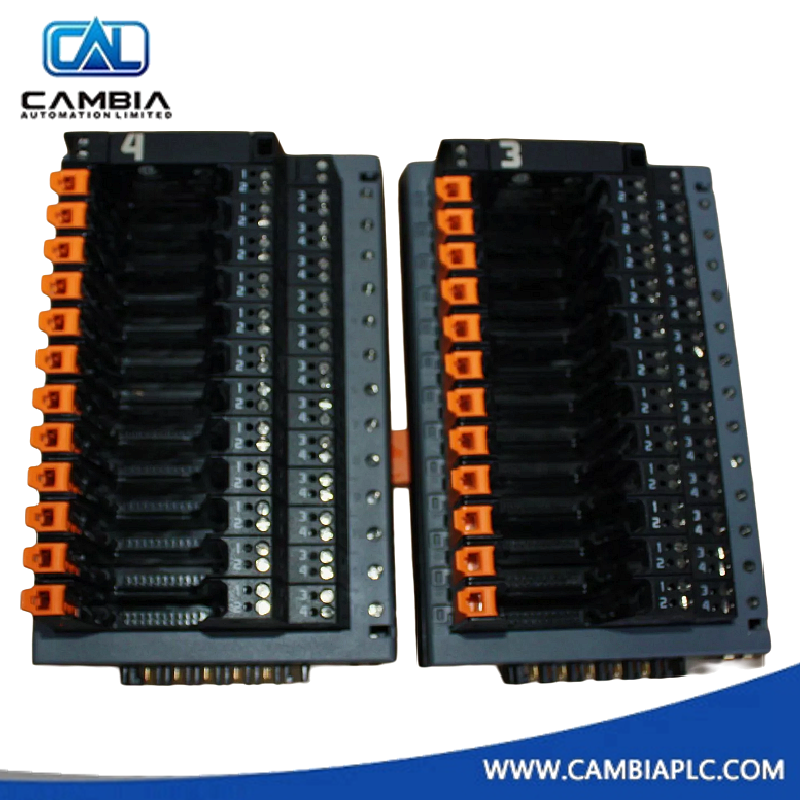

Emerson KL4210X1-BA1
Intrinsic Safety CHARM Baseplate for DeltaV Electronic Marshalling
Product Overview
The KL4210X1-BA1 is an intrinsically safe (I.S.) CHARM Baseplate designed for Emerson’s DeltaV™ Electronic Marshalling system. It provides mechanical mounting and an electrical interface for CHARM I/O modules used in hazardous Zone 2 environments. This baseplate supplies both CHARM bus and field power and is fully certified to meet global safety standards for demanding industrial installations.
- Model: KL4210X1-BA1
- Product Type: Intrinsically Safe CHARM Baseplate
- System Compatibility: Emerson DeltaV Electronic Marshalling
Technical Specifications
| Attribute | Specification |
|---|---|
| CHARM Bus Power | +6.3 VDC @ 7.6 A |
| Field Circuit Power | +24 VDC @ 8.4 A |
| Operating Temperature | –40°C to +70°C |
| Shock Resistance | 10g (½ sinewave for 11 ms) |
| Vibration Resistance | 1 mm (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Humidity | 5–95% non-condensing |
| Contaminant Protection | ISA-S71.04 Class G3 (harsh environments) |
| Hazardous Area Certifications | ATEX, IECEx, FM (Zone 2) |
| Maintenance | No user-serviceable parts (power-off removal required) |
