Emerson
Emerson DeltaV KJ3225X1-BA1 RTD / Resistance Input Card
In stock, ready to ship
Manufacturer: Emerson
Product No.: KJ3225X1-BA1
Product Type: RTD Input
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

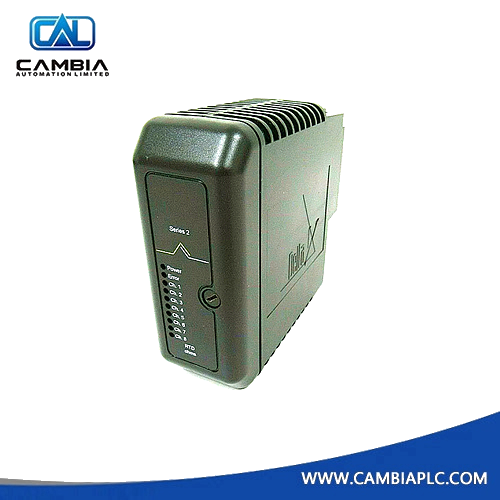

Emerson DeltaV KJ3225X1-BA1
8-Channel RTD/Resistance Input Card
Product Description
The Emerson KJ3225X1-BA1 is an 8-channel RTD/Resistance Input Card designed for the DeltaV™ M-Series Distributed Control System (DCS).
Technical Specifications
-
Model Number: KJ3225X1-BA1
-
Input Channels: 8
-
Supported Inputs: RTD and resistance signals
-
LocalBus Power Requirement: 12 VDC at 160 mA
-
Operating Temperature: -40°C to +70°C
-
Shock Resistance: 10g, ½ sine wave for 11 ms
-
Vibration Resistance:
-
1 mm peak-to-peak (2–13.2 Hz)
-
0.7g (13.2–150 Hz)
-
Humidity Range: 5% to 95% non-condensing
-
Airborne Contaminants: ISA-S71.04-1985 Class G3 compliant
-
Certifications:
-
ATEX II 3G Ex nA IIC Gc
-
IECEx FMG 12.0035U
-
II 3G Ex nL IIC (Nemko 02ATEX431U)
-
Weight: 0.29 kg
