Emerson DeltaV KJ3002X1-BG2 12P1731X072 Thermocouple mV Module

In stock, ready to ship

  • Manufacturer: Emerson

  • Product No.: KJ3002X1-BG2

  • Product Type: Analog Input

  • Product Origin: USA

  • Payment: T/T

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

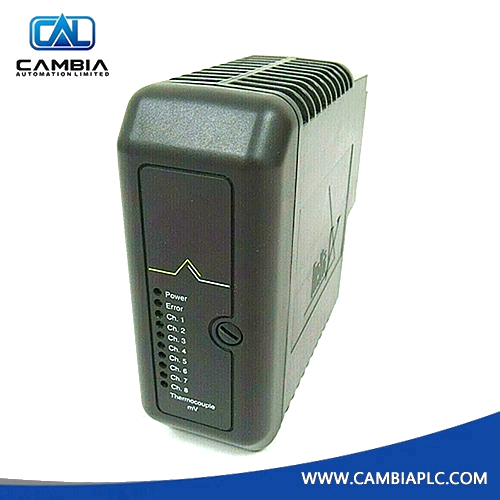

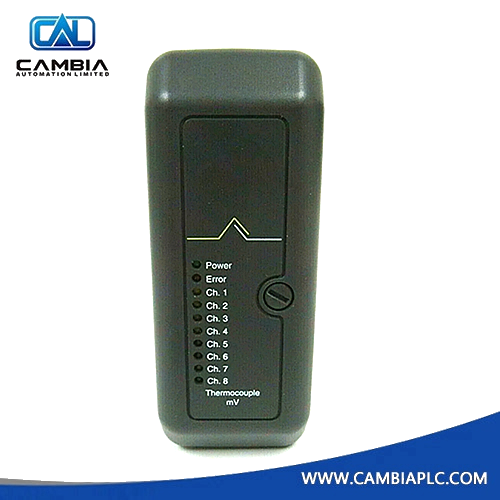

Emerson DeltaV KJ3002X1-BG2 12P1731X072 Thermocouple mV Module

Emerson DeltaV KJ3002X1-BG2

8-Channel Thermocouple/mV Analog Input Module

Product Description

The Emerson DeltaV KJ3002X1-BG2 is an 8-channel analog input module designed for precise temperature and low-level voltage measurements within DeltaV Distributed Control Systems (DCS).

Technical Specifications

  • Model Number: KJ3002X1-BG2

  • Input Types: Thermocouple (Types J, K, T, E, R, S, B, C), Voltage (-10 V to +10 V), Current (-20 mA to +20 mA)

  • Accuracy: ±0.1% of full scale

  • Resolution: 0.001% of full scale

  • Noise: <0.1 mV RMS

  • Drift: <0.05% of full scale per year

  • Isolation: 2000 V between channels

  • Power Requirements: 12 VDC at 350 mA

  • Operating Temperature: -40°C to +70°C

  • Humidity: 0% to 95% RH, non-condensing

  • Dimensions: 4.2 cm × 12.5 cm × 10.5 cm

  • Weight: 0.2 kg

  • Certifications: CE, UL

  • Enclosure: Class I, Division 1, Groups B, C, D, E, F, G
