EMERSON

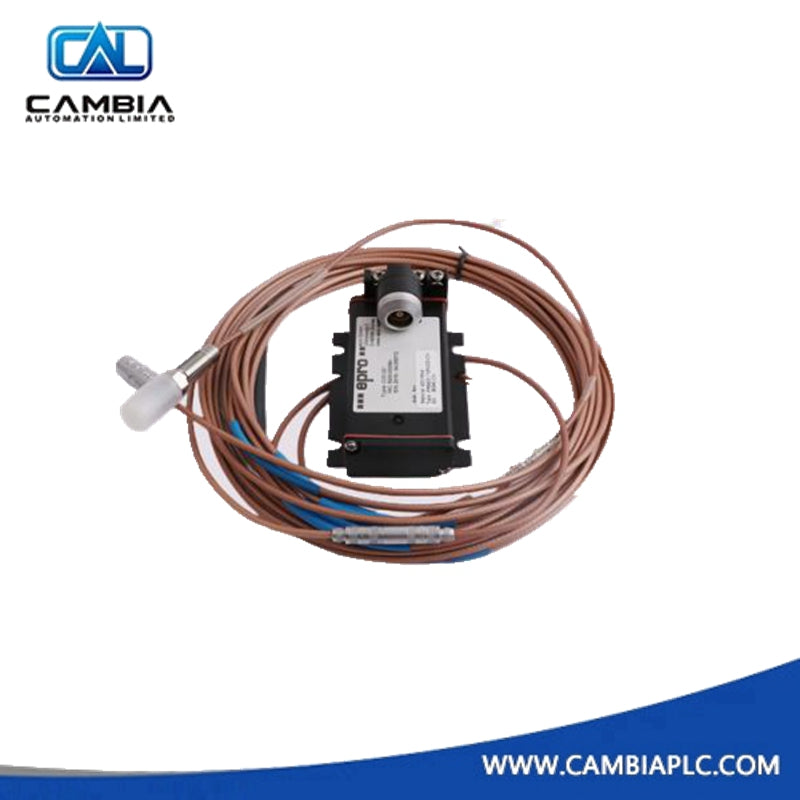

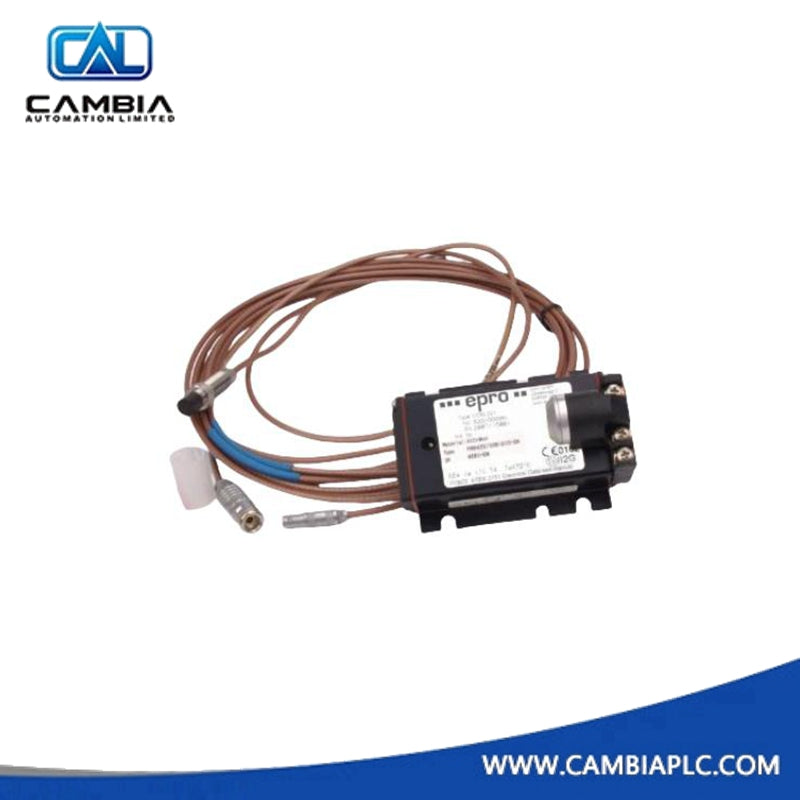

EMERSON CON021+PR6423/01H-030 Eddy Current Sensor
In stock, ready to ship
Manufacturer: EMERSON
Product No.: CON021+PR6423/01H-030
Product Type: Eddy Current Sensor
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Emerson Epro PR6423/002-030 is an advanced 8mm eddy current sensor designed for critical turbomachinery applications, offering precise measurement capabilities in harsh industrial environments.
Features
- Non-contact Measurement: Safely measures radial and axial shaft displacement, position, eccentricity, and speed without physical contact with the shaft.
- High Accuracy: Provides accurate measurement results with ±0.2% of full scale accuracy.
- High Reliability: Ensures dependable performance in demanding operational conditions.
- Wide Operating Temperature Range: Suitable for environments ranging from -40 to 200°C (-40 to 392°F).
- Rugged Construction: Built to withstand harsh industrial environments.
- Easy Installation: Simplifies integration into existing machinery and systems.
Specifications
- Measurement Range: ±5 mm
- Accuracy: ±0.2% of full scale
- Resolution: 0.1 µm
- Non-linearity: <0.5% of full scale
- Temperature Range: -40 to 200°C (-40 to 392°F)
- Vibration Limit: 50 g peak
- Shock Limit: 50 g half-sine, 20 ms duration
- IP Rating: IP67 (protected against dust and water immersion)
The Emerson EPRO CON021 is a specialized signal converter designed for critical turbomachinery applications, offering precise measurement capabilities for various parameters.
Features
- Panel Mount Design: Suitable for integration into control panels or cabinets.
- High Accuracy and Repeatability: Provides reliable and consistent measurement results.
- Wide Measurement Range: Capable of measuring up to 20 mm.
- Variety of Output Signal Options: Offers flexibility with 4-20 mA, 0-10 V, or ±10 V output signals.
- Easy to Install and Configure: Simplifies setup and integration into monitoring systems.
Technical Specifications
- Input: Eddy current probe
- Output: 4-20 mA, 0-10 V, or ±10 V
- Accuracy: ±0.2% of full scale
- Repeatability: ±0.1% of full scale
- Measurement Range: Up to 20 mm
- Operating Temperature: -40 to 85°C
- Enclosure Rating: IP67 (protected against dust and water immersion)
