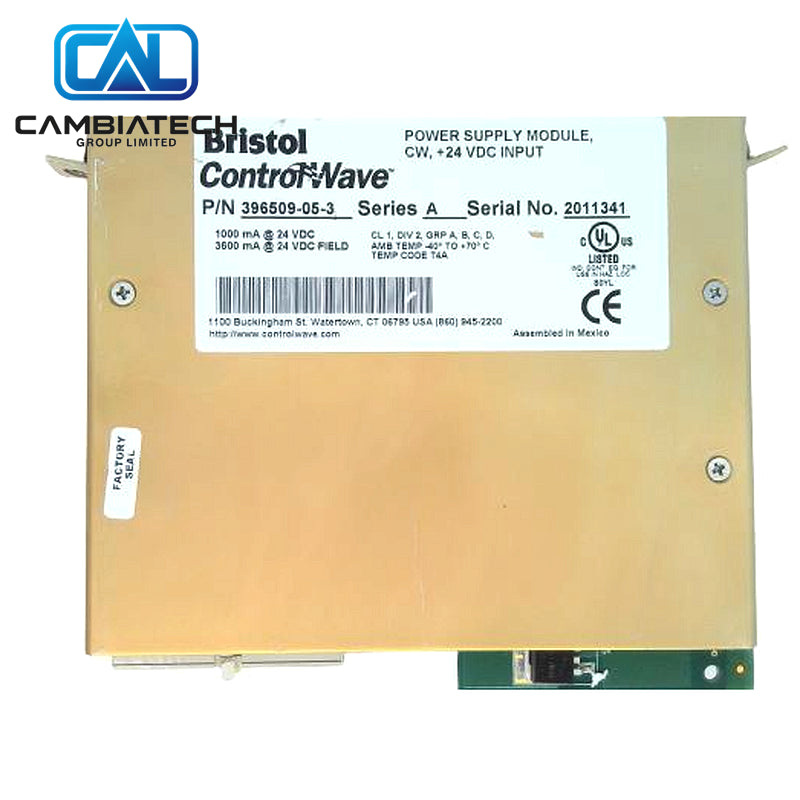

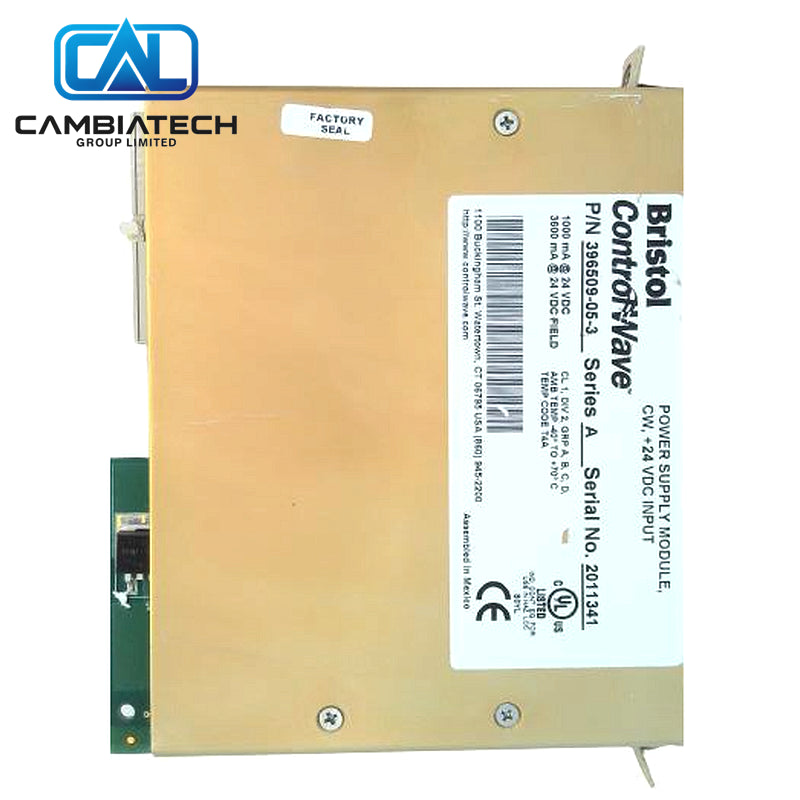

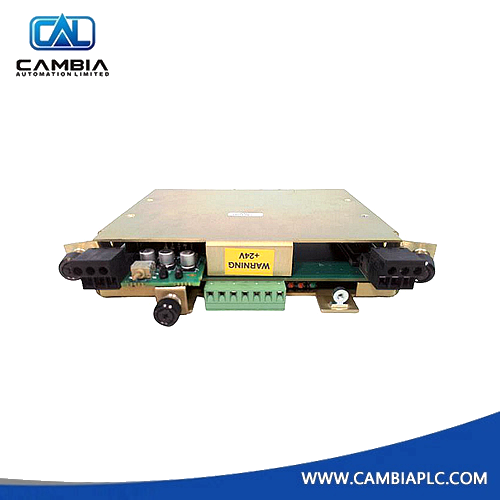

Emerson | 396509-05-3 | ControlWave Power Supply Module 24VDC
In stock, ready to ship
Manufacturer: Emerson
Product No.: 396509-05-3
Product Type: Power Supply Module
Product Origin: USA
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson 396509-05-3 is a ControlWave Series power supply module that provides regulated 24 VDC power for ControlWave RTU and PLC systems. It delivers stable power for both control electronics and field devices in industrial automation applications.
Key Specs
- Type: ControlWave Power Supply Module
- Input: +24 VDC
- Output: 1000 mA @ 24 VDC (control) / 3600 mA @ 24 VDC (field)
- Operating temperature: −40 °C to +70 °C
- System: Emerson ControlWave
- Series: A
Why Choose This
- Dedicated power for ControlWave systems
- Separate control and field power capacity
- Wide operating temperature range
- Reliable for remote and harsh environments
Common Questions
- Input? 24 VDC.
- Outputs? Control + field power.
- System? ControlWave.
Mounting Steps
- Install the module in the ControlWave chassis or panel.
- Connect the 24 VDC input supply.
- Wire control and field power outputs as required.
- Power up and verify voltage and status indicators.
- Confirm system modules receive stable power.
Buying Advice
- Match exact configuration to the existing ControlWave power supply.
- Critical spare for ControlWave RTU/PLC systems.
- Confirm total load does not exceed rated capacity.
