Emerson

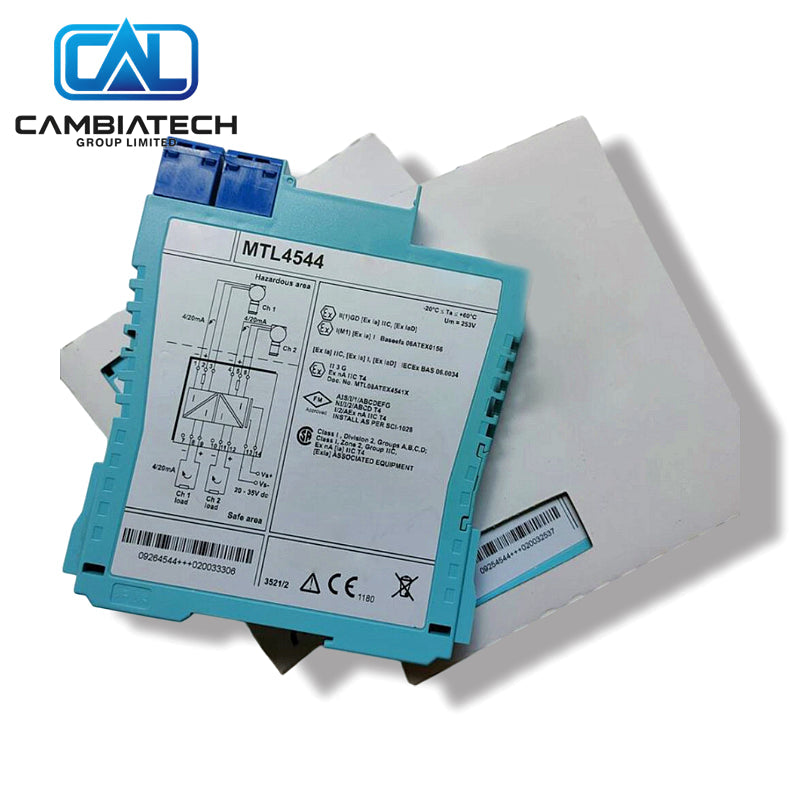

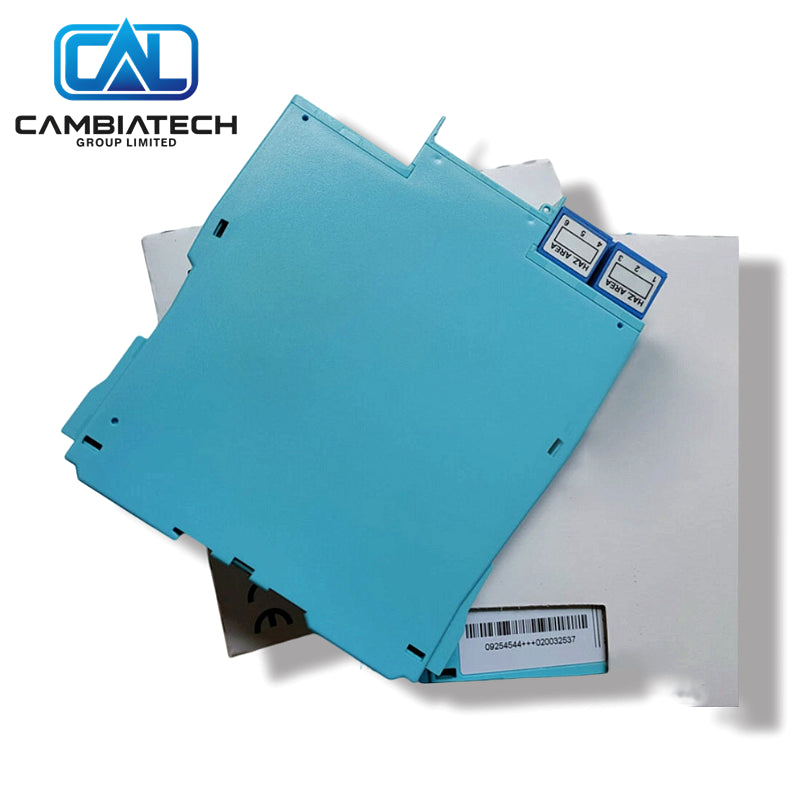

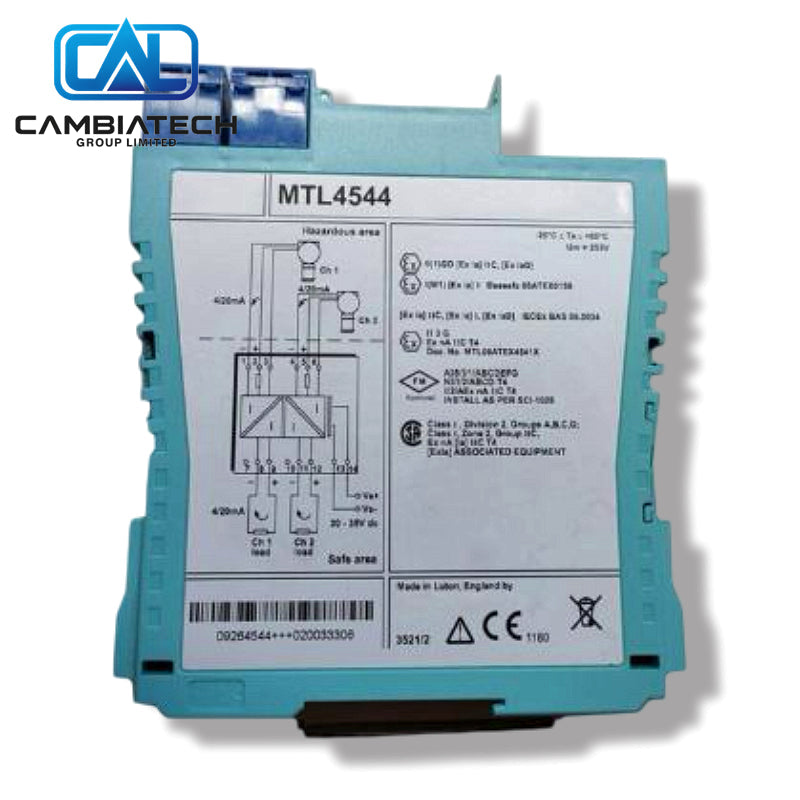

Dual Channel HART Isolator MTL4544 4-20mA Transmitter
Manufacturer: Emerson
Product No.: MTL4544
Product Type: Transmitter Isolator / Repeater Power Supply
Product Origin: USA
Payment: T/T
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
MTL4544 is a dual-channel intrinsically safe isolator for 2-wire or 3-wire 4–20 mA/HART transmitters located in hazardous areas. It provides transmitter power and repeats the 4–20 mA signal to the safe area while maintaining full HART transparency.
Key Specs
- Channels: 2 independent
- Signal: 0–24 mA (4–20 mA nominal) with HART
- Transmitter supply: 16.5 V at 20 mA per channel
- Safe-area load: Up to 450 Ω @ 20 mA class
- Accuracy: ±15 µA at 20 °C class
- Power dissipation: Approx. 1.4 W @ 24 V DC
- Mounting: MTL4500 backplane
Why Choose This
- Dual independent HART-compatible channels
- Powers and isolates hazardous-area transmitters
- Fast response for process control
- Certified for Zone 0 / Div 1 applications
Common Questions
- Channels? 2.
- HART? Yes, transparent.
- Supply? 16.5 V @ 20 mA per channel.
Mounting Steps
- Install the module on the MTL4500 backplane.
- Wire the hazardous-area transmitters and safe-area loads.
- Connect system power.
- Verify loop current and HART communication.
- Check isolation and status indicators.
Buying Advice
- Ideal for dual-channel HART transmitter interfaces.
- Confirm load resistance and power budget.
- Useful spare for MTL4500 analogue input isolators.
