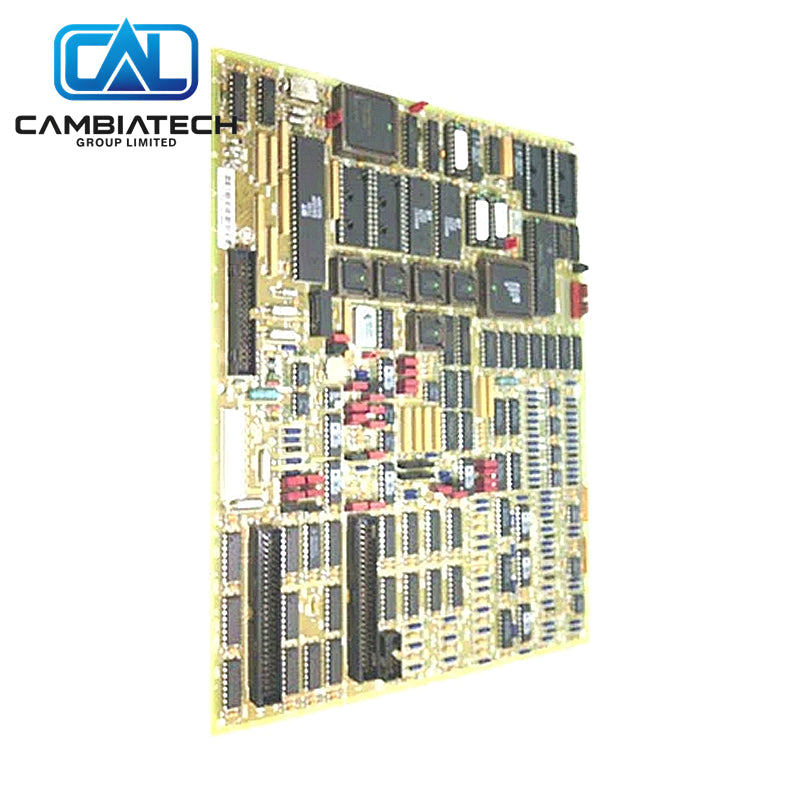

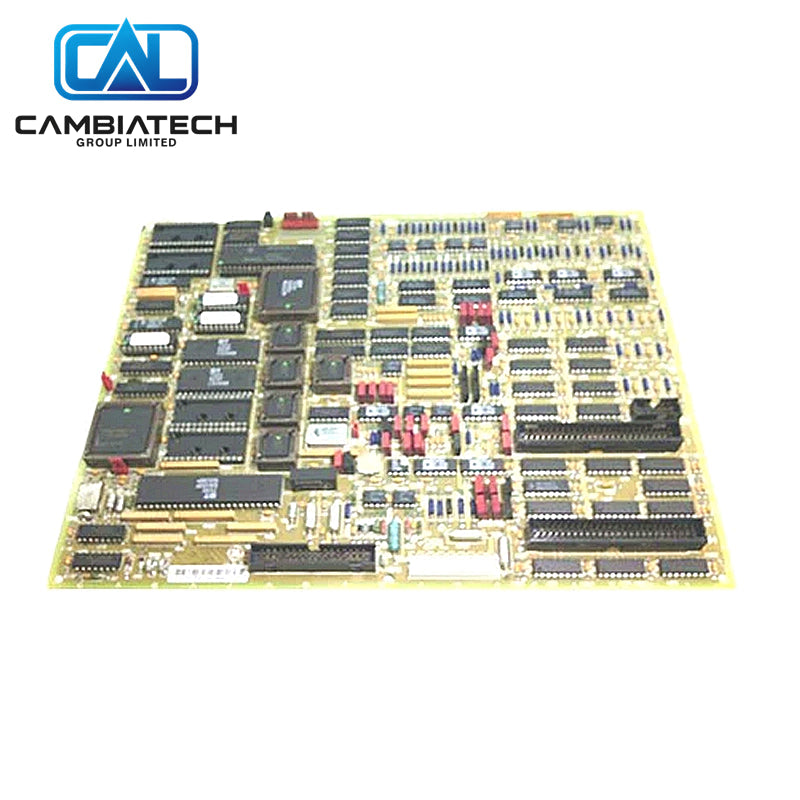

DS200TCCBG3ANE GE Common Extended Analog I/O Board
In stock, ready to ship
Manufacturer: GE
Product No.: DS200TCCBG3ANE
Product Type: Analog I/O Board
Product Origin: USA
Payment: T/T
Weight: 1900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
GE DS200TCCBG3ANE is a Common Extended Analog I/O Board for Mark V systems. It conditions and scales analog signals including 4–20 mA, RTD, generator voltage and line current before transmitting them to the STCA board.
Key Specs
- Function: Common Extended Analog I/O (TCCB)
- Series: Mark V
- Signal types: 4–20 mA, 0–1 mA, RTD, generator/bus voltage, line current
- Processing: Filtering, amplification, isolation, scaling
- Interface: 3PL connector to STCA board
- Operating temp: −30 °C to +65 °C
Why Choose This
- Handles multiple analog signal types in one board
- Provides signal conditioning and isolation
- Direct interface to core terminal boards
- Proven Mark V analog I/O solution
Common Questions
- Signals? 4–20 mA, RTD, voltage, current.
- Output? Processed signals to STCA.
- Series? Mark V.
Mounting Steps
- Power down the Mark V core.
- Install the board in the designated analog I/O location.
- Connect the 3PL and terminal board cables.
- Verify signal wiring and grounding.
- Power up and confirm analog readings.
Buying Advice
- Confirm compatibility with existing R5/P1 terminal boards.
- Useful spare for extended analog I/O needs.
- Check revision for system match.
