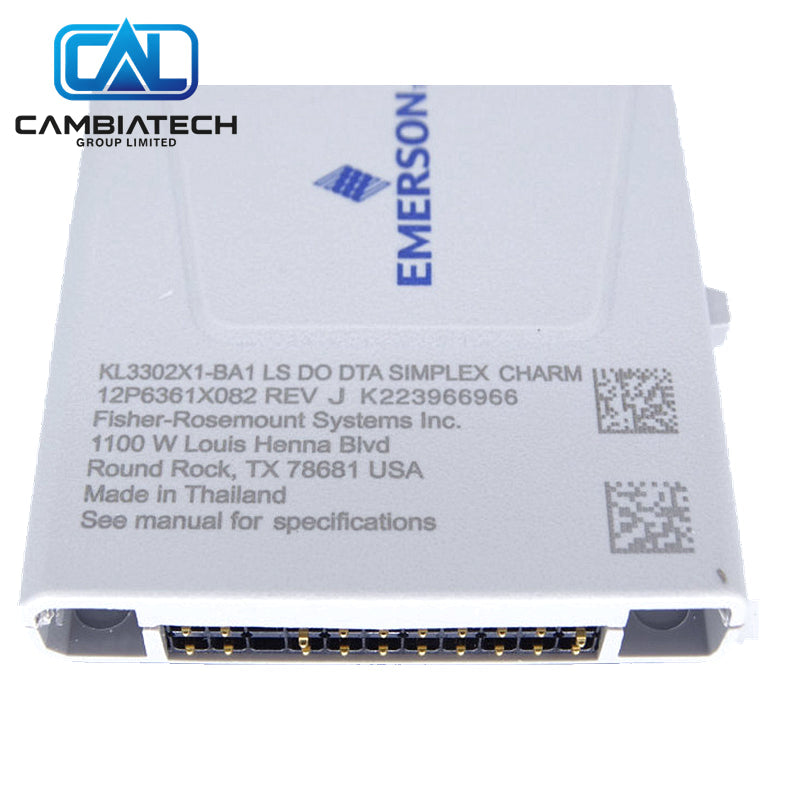

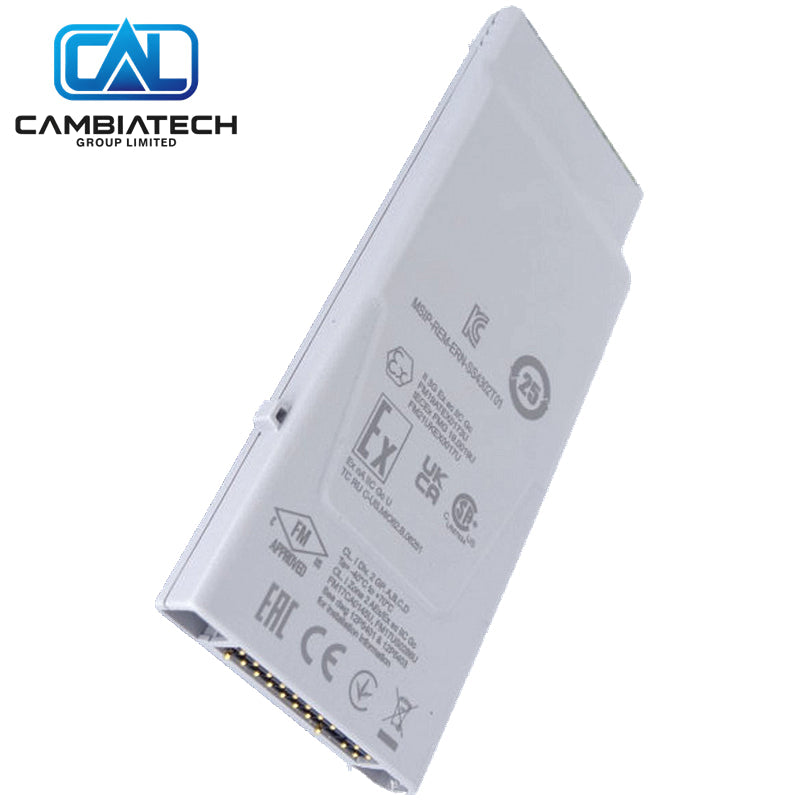

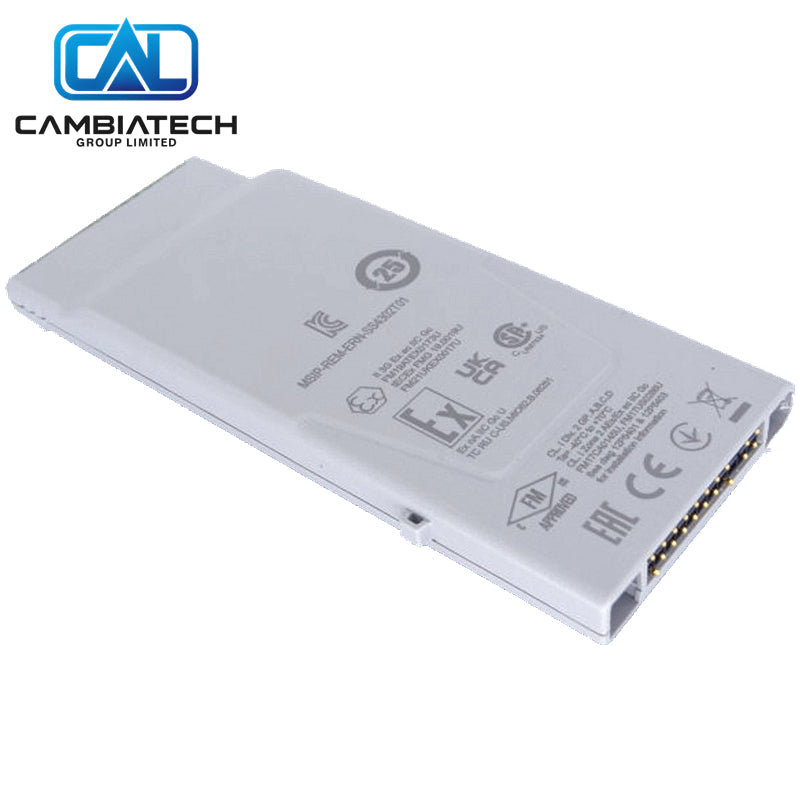

Discrete Output CHARM KL3302X1-BA1 Emerson 24VDC Low Side
Manufacturer: Emerson
Product No.: KL3302X1-BA1
Product Type: Discrete Output CHARM
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KL3302X1-BA1 is a Discrete Output CHARM for 24 VDC Low-Side switching in DeltaV Electronic Marshalling systems. It provides reliable digital output control for field devices.
Key Specs
- Type: Discrete Output CHARM – Low Side (DO LSS)
- Output: 24 VDC low-side switching
- CHARM Bus power: 6.3 VDC at 60 mA
- Field circuit power: 24 VDC at 580 mA class
- Key position: 3C
- Operating temperature: −40 °C to +70 °C
Why Choose This
- Dedicated low-side discrete output CHARM
- Electronic Marshalling compatible
- Hazardous-area certified
- Keyed for correct terminal block pairing
Common Questions
- Output type? 24 VDC low-side.
- System? DeltaV CHARM I/O.
- Key? 3C.
Mounting Steps
- Install the matching address plug and terminal block.
- Insert the KL3302X1-BA1 CHARM.
- Wire the 24 VDC field loads.
- Power up and verify output status.
- Test each discrete output channel.
Buying Advice
- Select for low-side 24 VDC discrete output needs.
- Confirm key position and terminal block compatibility.
- Useful spare for CHARM discrete output points.
