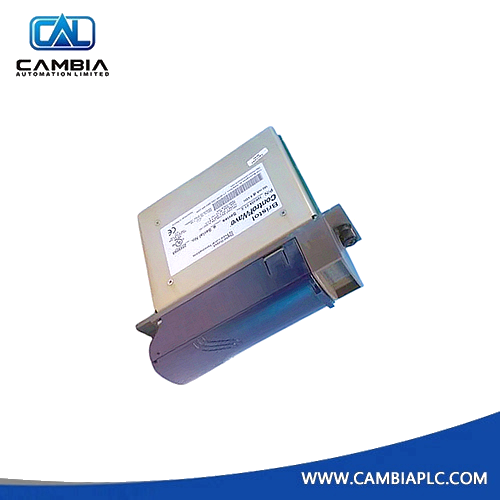

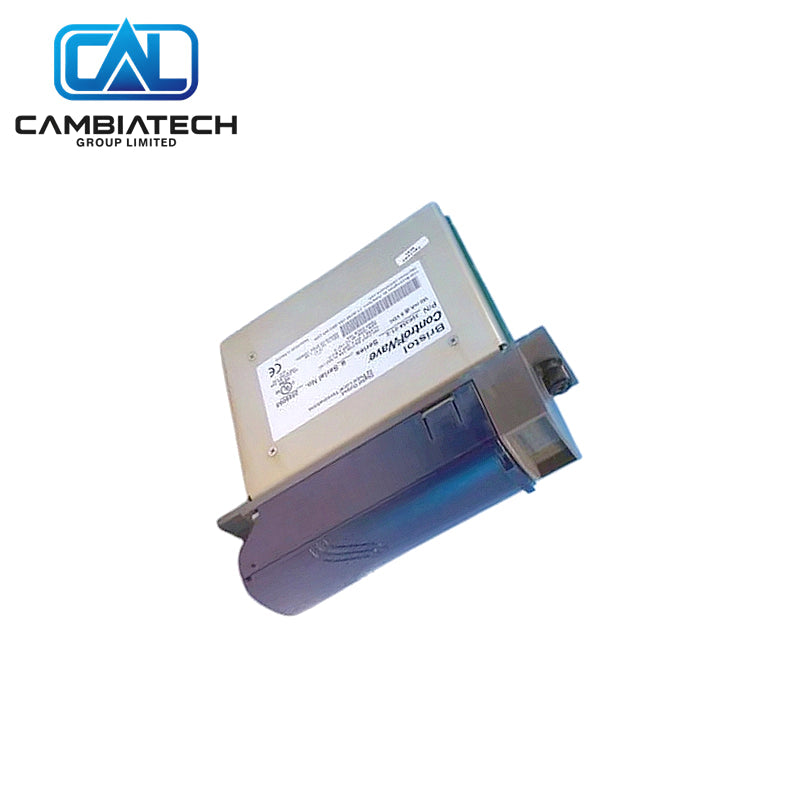

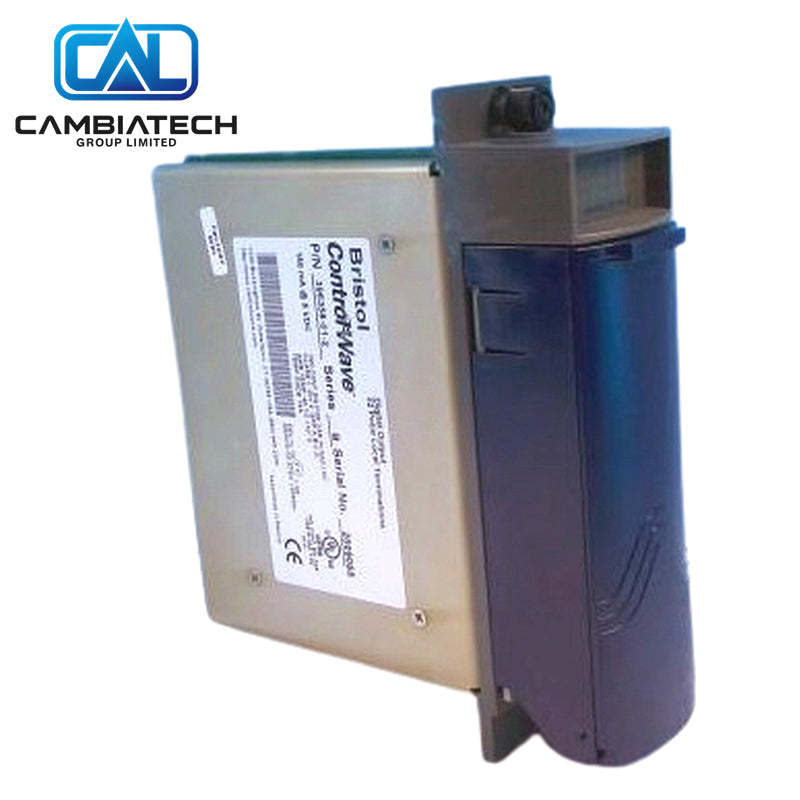

Digital Output Module 396358-01-2 Emerson ControlWave
In stock, ready to ship
Manufacturer: Emerson
Product No.: 396358-01-2
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T
Weight: 1400g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson 396358-01-2 is a Digital Output module for ControlWave systems. It provides discrete switching outputs for controlling relays, solenoids, alarms and other field devices.
Key Specs
- Type: Digital Output Module
- Output channels: 8 or system-dependent discrete outputs
- Output range: 5–30 VDC class
- Current: Up to approx. 0.5 A per channel class
- Isolation: Electrical isolation between field and system
- System: ControlWave Micro / PAC
Why Choose This
- Reliable discrete output control
- Isolated switching for field devices
- Compatible with ControlWave platforms
- Suitable for critical actuation tasks
Common Questions
- Type? Digital Output.
- System? ControlWave.
- Use? Relay / solenoid / alarm control.
Mounting Steps
- Install the module in the ControlWave chassis.
- Wire the field loads observing polarity and ratings.
- Configure output states and power-up behavior.
- Power up and verify output status LEDs.
- Test each output under load.
Buying Advice
- Confirm channel count and power-up configuration (clear / hold last).
- Match exact part number for jumper and termination options.
- Useful spare for ControlWave digital output applications.
