Emerson

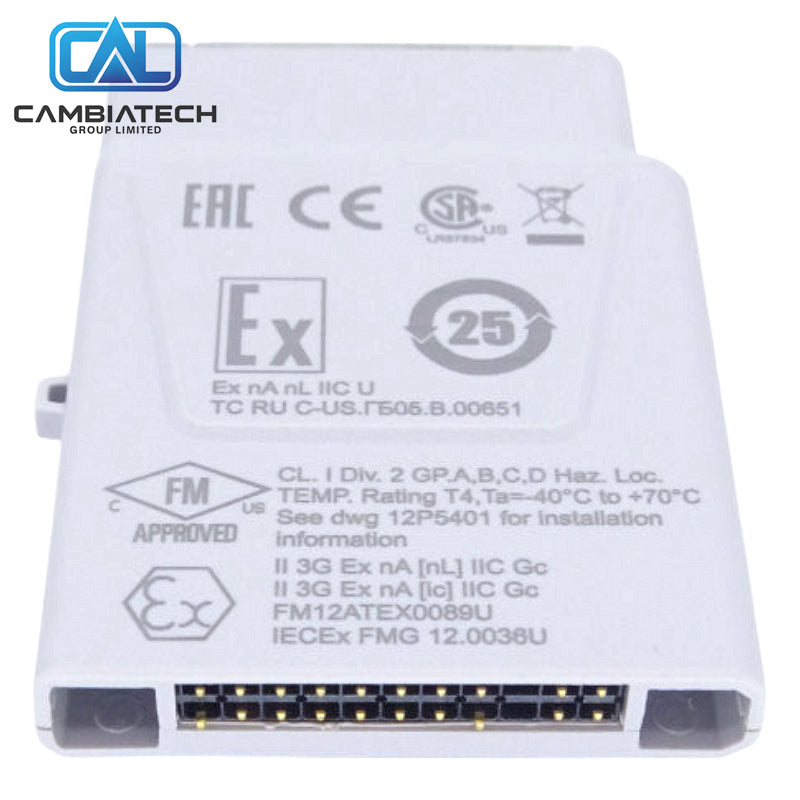

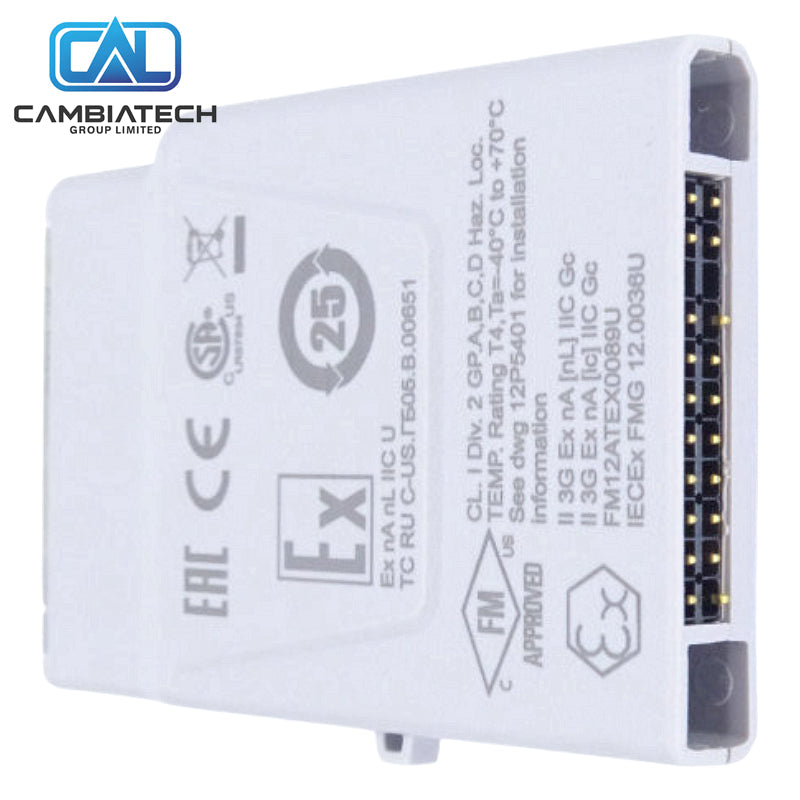

DI 24VDC Dry Contact CHARM KL3003X1-LS1 Emerson DeltaV
Manufacturer: Emerson
Product No.: KL3003X1-LS1
Product Type: Digital Input CHARM
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Emerson KL3003X1-LS1 is a 24 VDC Dry Contact Digital Input CHARM for DeltaV Electronic Marshalling. It accepts dry contact field devices and simplifies wiring by eliminating traditional marshalling.
Key Specs
- Type: LS DI 24 VDC Dry Contact CHARM
- Detection: ON >2.25 mA / OFF <1.75 mA
- Wetting voltage: 22.5 VDC class
- CHARM power: 18 mA max @ 24 VDC class
- Operating temperature: −40 °C to +70 °C
- System: DeltaV CHARMs
Why Choose This
- Direct dry contact connection
- Electronic Marshalling flexibility
- Hot-swappable in non-hazardous areas
- Reduces cabinet wiring complexity
Common Questions
- Type? Dry contact DI CHARM.
- Voltage? 24 VDC class.
- System? DeltaV Electronic Marshalling.
Mounting Steps
- Insert the CHARM into the baseplate terminal block.
- Wire the dry contact field device.
- Configure the channel in DeltaV.
- Verify status and diagnostics.
- Test switching under operating conditions.
Buying Advice
- Ideal for discrete dry contact inputs.
- Confirm baseplate and keying compatibility.
- Useful spare for CHARM digital input applications.
