Honeywell

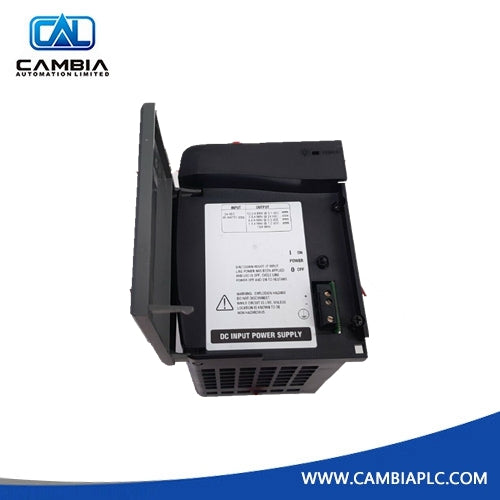

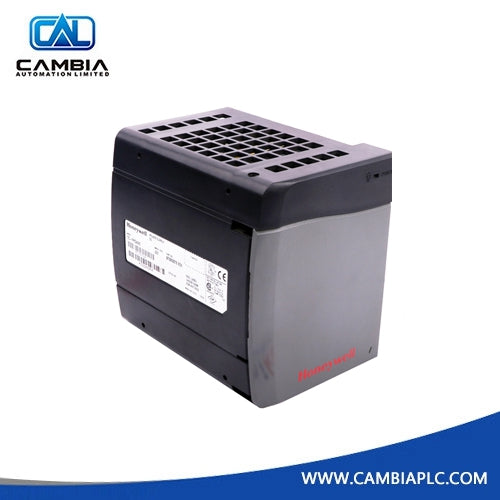

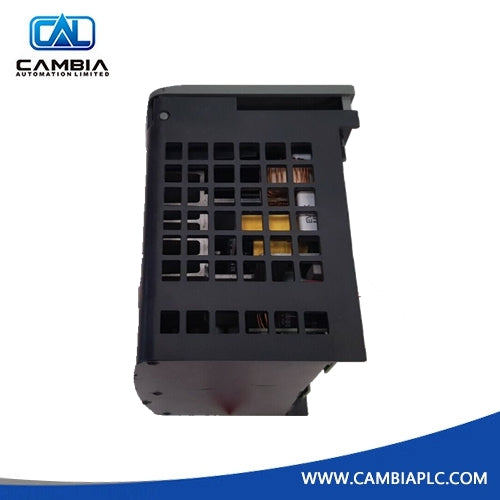

ControlNet Gateway Adapter TC-FCCN01 Honeywell
In stock, ready to ship
Manufacturer: Honeywell
Product No.: TC-FCCN01
Product Type: ControlNet Gateway Adapter
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Honeywell TC-FCCN01 is a ControlNet Gateway Adapter for FLEX I/O systems. It provides non-redundant media connection, linking controllers such as C200/C300 to distributed FLEX I/O modules over ControlNet.
Key Specs
- Function: ControlNet Gateway for FLEX I/O
- Media: Non-redundant
- Speed: 5 Mbit/s
- Supported modules: Up to 8 FLEX I/O
- Input voltage: 24 VDC (19.2–31.2 V)
- Power dissipation: Max 4.6 W
- Isolation: 500 V AC (user power to Flexbus)
Why Choose This
- Deterministic ControlNet communication
- Supports up to 8 FLEX I/O modules
- Compact gateway design
- Suitable for non-redundant architectures
Common Questions
- Network? ControlNet.
- Redundant? Non-redundant media.
- How many FLEX modules? Up to 8.
Mounting Steps
- Mount the adapter on the FLEX I/O base or DIN rail.
- Connect ControlNet media.
- Apply 24 VDC power.
- Attach FLEX I/O modules.
- Verify network status and communication.
Buying Advice
- Use for non-redundant ControlNet to FLEX I/O links.
- Confirm controller and media compatibility.
- Cost-effective option when redundancy is not required.
