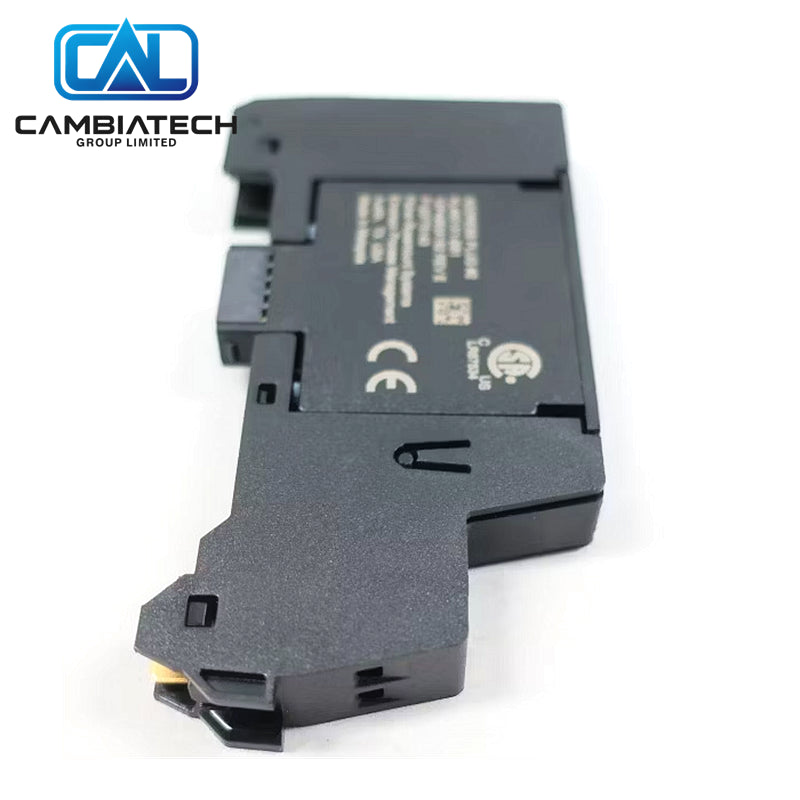

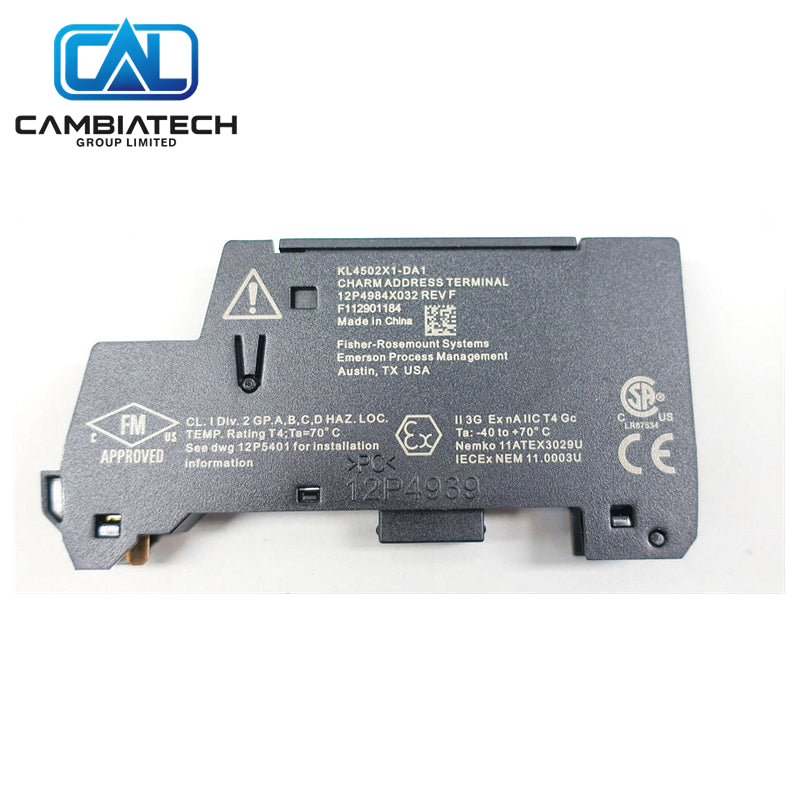

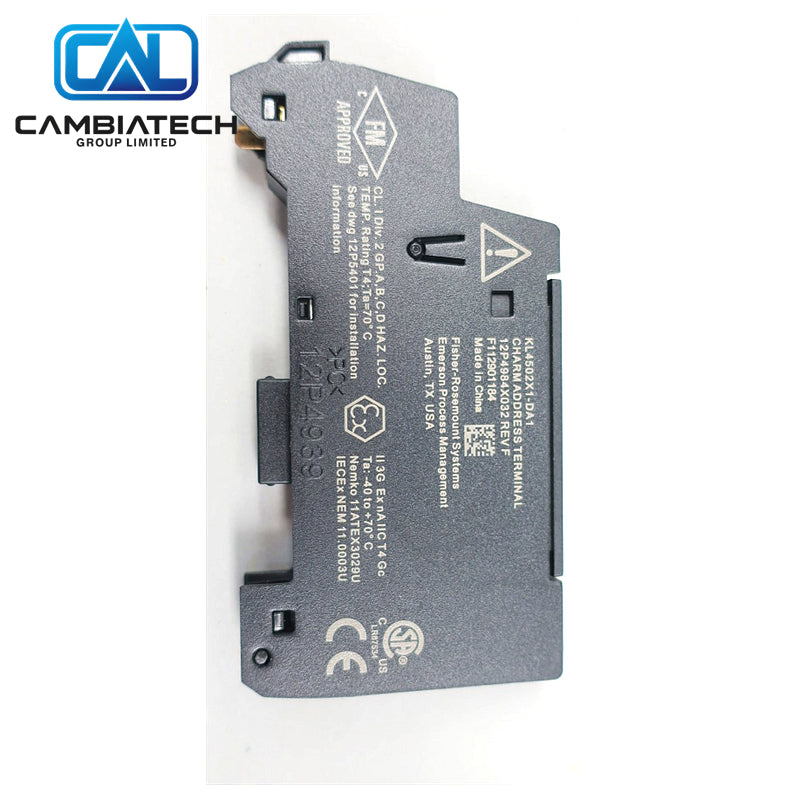

CHARM Address Plug KL4501X1-BB1 | Emerson DeltaV
In stock, ready to ship
Manufacturer: Emerson
Product No.: KL4501X1-BB1
Product Type: CHARM Address Plug
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Emerson KL4501X1-BB1 is a CHARM Address Plug for DeltaV Electronic Marshalling. It provides secure addressing and automatic keying between the CHARM and its terminal block.
Key Specs
- Type: CHARM Address Plug
- Key position: 1C class
- CHARM Bus power: +6.5 V DC at 7 mA
- Operating temperature: −40 °C to +70 °C
- System: DeltaV CHARM I/O subsystem
Why Choose This
- Ensures correct module identification
- Prevents incorrect CHARM installation
- Low power consumption
- Designed for continuous industrial operation
Common Questions
- Function? Address and keying for CHARM.
- Key position? Specific to BB1.
- Hot-swap? Not in hazardous areas while energized.
Mounting Steps
- Power down the carrier if required by area classification.
- Insert the BB1 address plug into the correct position.
- Verify keying.
- Install the CHARM.
- Power up and confirm system recognition.
Buying Advice
- Match exact key position to the carrier slot.
- Keep a set of all used address plugs as spares.
- Critical for proper CHARM addressing.
