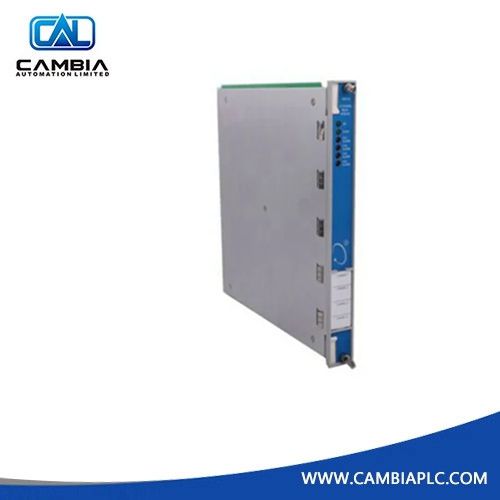

Bently Nevada VGA Display I/O Module 146358-01 3500/94
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 146358-01
Product Type: VGA Display I/O Module
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The Bently Nevada 146358-01 is a dedicated VGA Display I/O module for the 3500/94 VGA Display System within the 3500 Machinery Protection System. Installed in the rear of the 3500 rack, this module provides the physical interface for external VGA monitors and touch screens, ensuring fast and reliable data transfer from the main module to operator consoles. Built with EMI/RFI shielding, it preserves signal integrity while enabling responsive touch-screen control and real-time monitoring of machinery health.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | VGA Display I/O Module |
| Component Placement | Upper Left (UL) position in 3500 rack |
| Connectors | 15-pin VGA port and touch-screen interface |
| Compatibility | Works with 3500/94 Main Module (145988-01) |
| Isolation | EMI/RFI shielding for signal protection |
| Operating Temperature | -30°C to +65°C |
| Part Number | 146358-01 |
Installation and Connectivity
-
Rear-mounted I/O: Keeps display cabling separate from primary logic modules.
-
High-speed data transfer: Supports vibration, status, and alarm signals with millisecond update rates.
-
Touch-screen support: Enables responsive control without interfering with core system processing.
FAQ
Can this module operate without the 3500/94 main module?
No. The 146358-01 is a passive I/O interface and requires the 145988-01 main module to process and generate display signals.
What cable length is supported?
Supports standard VGA and touch-screen cables up to 10 meters (33 feet) from the rack to the monitor.
