Bently Nevada
Bently nevada PROXIMITOR SENSOR MODEL 3300XL 8MM , 330180-91-05
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330180-91-05
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Trixie Tin
✌✌✌330180-91-05PROXIMITOR SENSOR
| Gross shipping weight | 0.25kgs |
| Shipping dimensions | 8.8x7x3cm |
Description
Transducer System
The 3300 XL 8 mm Proximity Transducer System consists of:
• a 3300 XL 8 mm probe
• a 3300 XL extension cable
• a 3300 XL Proximitor® Sensor1
The system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. It is capable of both static (position) and dynamic (vibration) measurements, and is primarily used for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor® and speed measurement applications2. The 3300 XL 8 mm system represents our most advanced performance in an eddy current proximity transducer system. The standard 3300 XL 8 mm 5 metre system is also 100% compliant with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm Proximity Transducer Systems achieve this level of performance while allowing complete interchangeability of probe, extension cable, and Proximitor® Sensor without the need for individual component matching or bench calibration. Each component of the 3300 XL 8 mm Transducer System is backward compatible and interchangeable3 with other non-XL 3300 series 5 and 8 mm transducer system components4. This includes the 3300 5 mm probe, which is used when an 8 mm probe is too large for the available mounting space5,6.

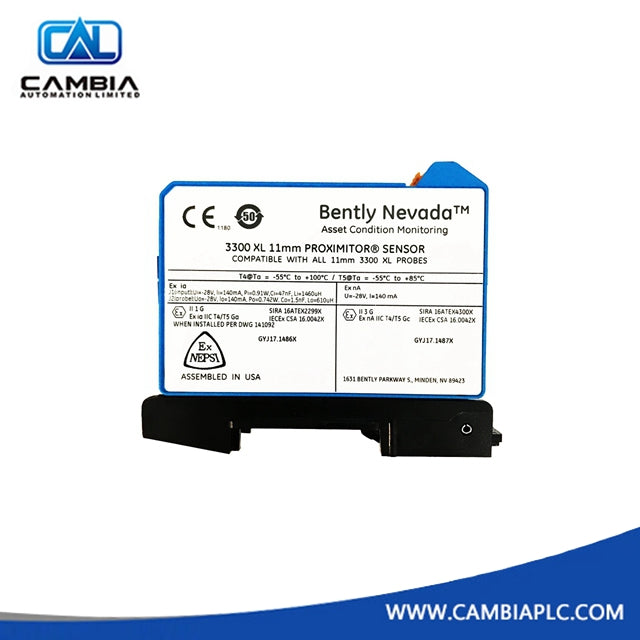

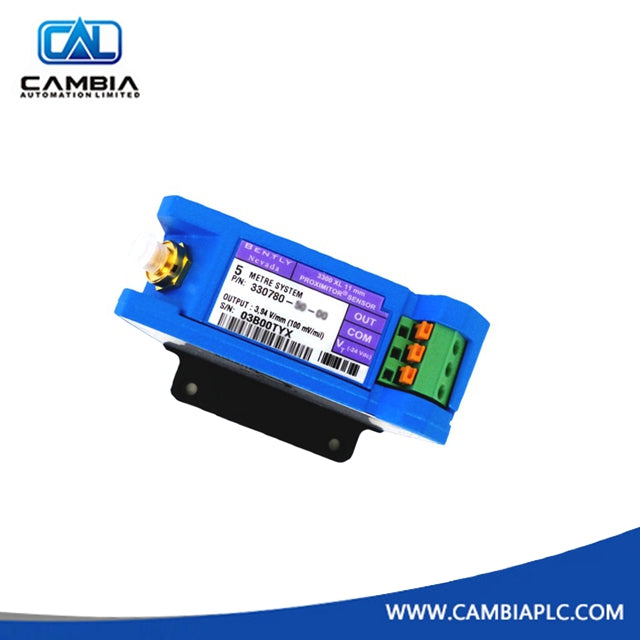

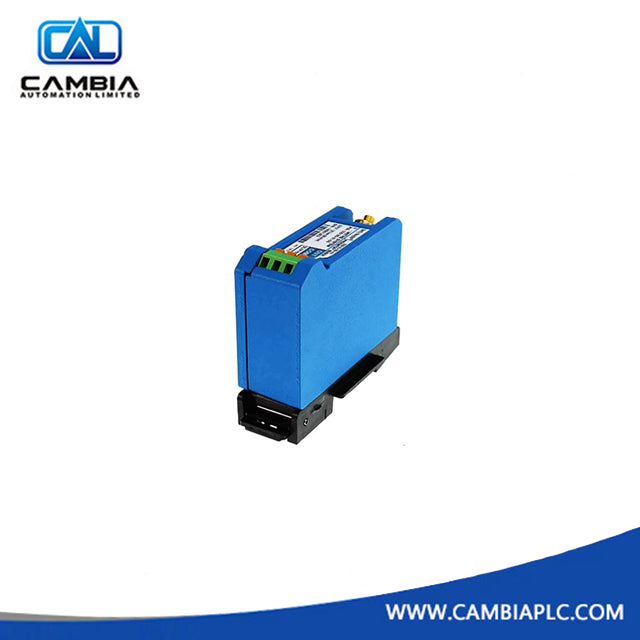

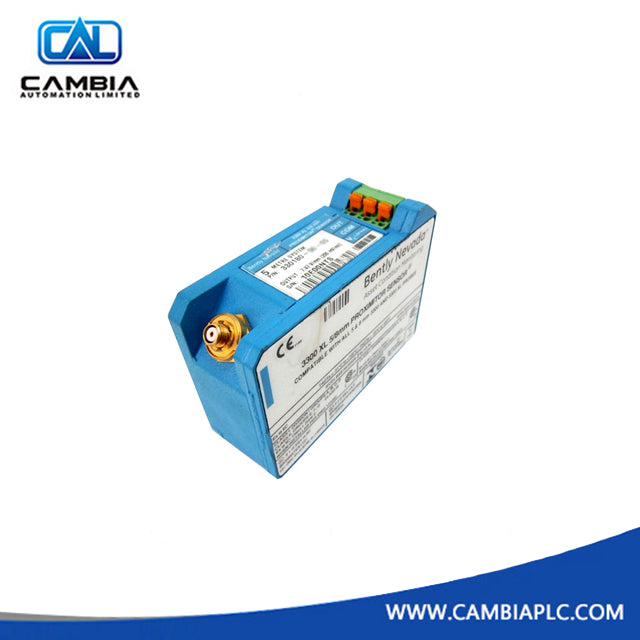

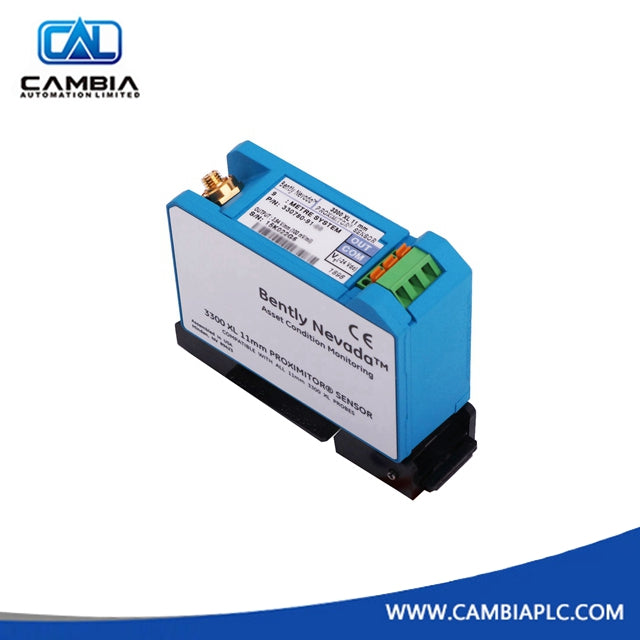

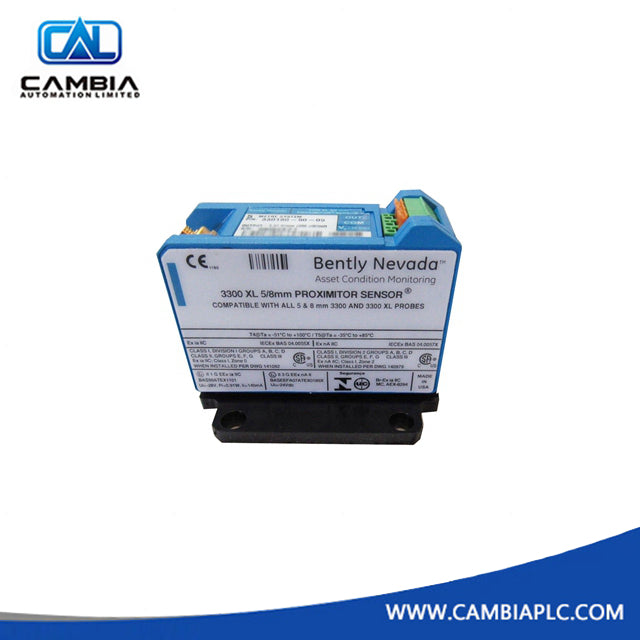

3300 XL Proximitor® Sensor
330180-AXX-BXX
Option Descriptions
A: Total Length and Mounting Option
5 0 5.0 metre (16.4 feet) system length, panel mount
5 1 5.0 metre (16.4 feet) system length, DIN mount
5 2 5.0 metre (16.4 feet) system length, no mounting hardware
9 0 9.0 metres (29.5 feet) system length, panel mount
9 1 9.0 metres (29.5 feet) system length, DIN mount
9 2 9.0 metres (29.5 feet) system length, no mounting hardware
B: Agency Approval Option
0 0 Not required
0 5 Multiple approvals
