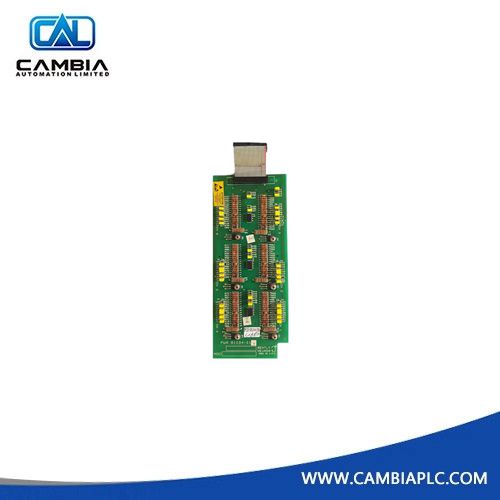

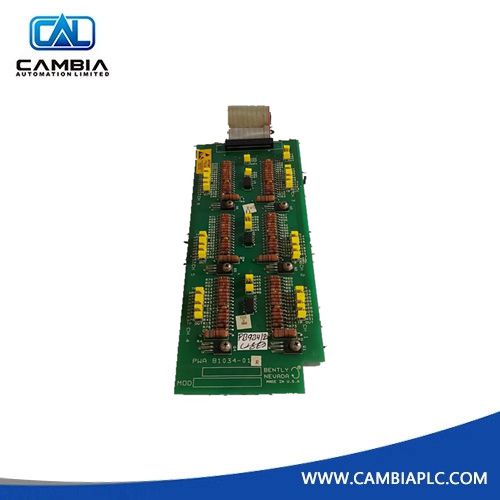

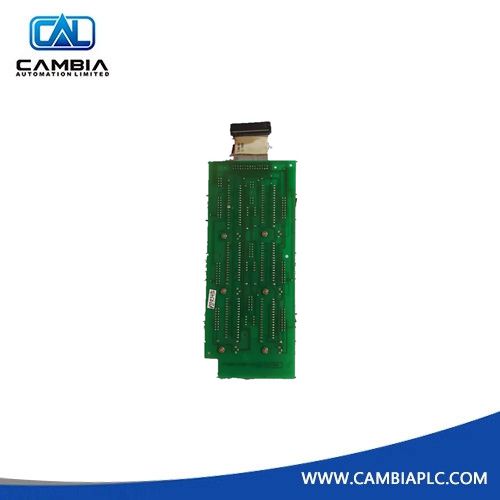

Bently Nevada 81034-01 3300 Series Temperature Monitor Board
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 81034-01
Product Type: Temperature Monitor Board
Product Origin: USA
Payment: T/T
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The 81034-01 is a 6-channel analog conditioning and logic board for the Bently Nevada 3300 Series Machinery Protection System. Serving as the primary processing engine for the 3300/30 (Thermocouple) and 3300/35 (RTD) modules, this board provides high-precision temperature monitoring for critical rotating machinery, including motor bearings, pump casings, and gearbox sumps. Integrated with the 3300 rack backplane, it triggers Alert and Danger relay outputs, enabling automated machinery trips and safety interlocks. Its built-in noise filtration ensures reliable operation in high-EMI industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 81034-01 |
| System Family | Bently Nevada 3300 Series |
| Operational Temperature | 0°C to +65°C |
Application
-
Legacy System Maintenance: Replacing failed 3300/30 or 3300/35 boards without full rack replacement.
-
Multi-Point Bearing Monitoring: Tracks up to six bearing temperatures simultaneously on large industrial motors or fans.
-
Thrust Pad Protection: Monitors hydrodynamic bearing pads to detect uneven load distribution and prevent mechanical failure.
Installation Notes
-
Rack Integration: Slide into the designated 3300 rack slot, ensuring full backplane engagement.
-
Sensor Pairing: Use with the correct front panel and I/O module (3300/30 for TCs, 3300/35 for RTDs).
-
Alarm Thresholds: Configure via front-panel potentiometers or jumpers per module revision.
-
Grounding: Follow proper shielding and grounding protocols to prevent false temperature spikes.
FAQ
Can I use the 81034-01 in a 3500 Series rack?
No, it is only compatible with 3300 Series racks.
Does this board include the front display panel?
No, the 81034-01 is the internal circuit board. The front display and rear I/O assembly are sold with the complete 3300/30 or 3300/35 module.
