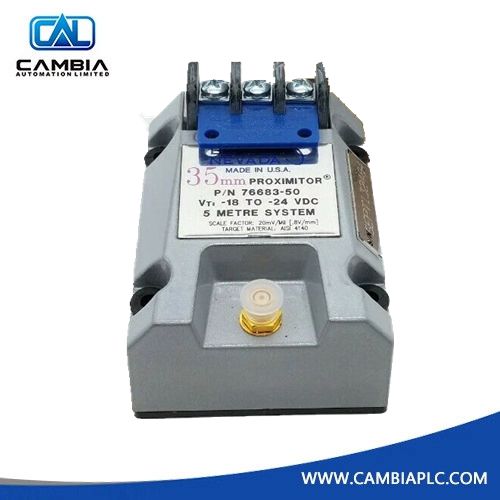

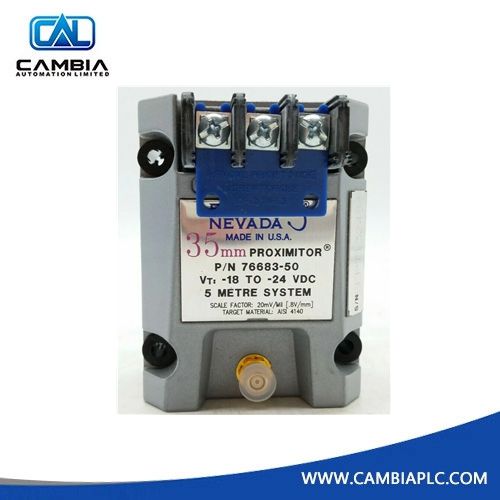

Bently Nevada 76683-50 Proximity Sensor Eddy Current

Product Description

The Bently Nevada 76683-50 Proximity Sensor is engineered for precise, non-contact measurement of displacement and position using eddy current technology. Designed for demanding industrial environments, it provides accurate monitoring of conductive targets with high repeatability and durability.

Its stainless steel housing and IP67 protection rating ensure reliable operation in harsh conditions, while the wide measurement range and fast response make it suitable for applications such as vibration analysis, shaft position monitoring, gap detection, and thickness measurement. The sensor delivers a stable 4–20 mA DC output signal, enabling seamless integration into control and monitoring systems.

Key Features

• Eddy current sensing for accurate non-contact measurement

• Measurement range: 0.25 mm to 10 mm

• Accuracy: 0.025 mm with ±0.25% linearity

• Rugged stainless steel housing with IP67 protection

• Operates in extreme temperatures from –52 °C to +100 °C

• 4–20 mA DC output for reliable signal transmission

• Power supply: 18–24 VDC

Applications

• Vibration monitoring in rotating machinery

• Shaft position and displacement measurement

• Gap control in mechanical assemblies

• Thickness measurement of conductive materials

Technical Specifications
