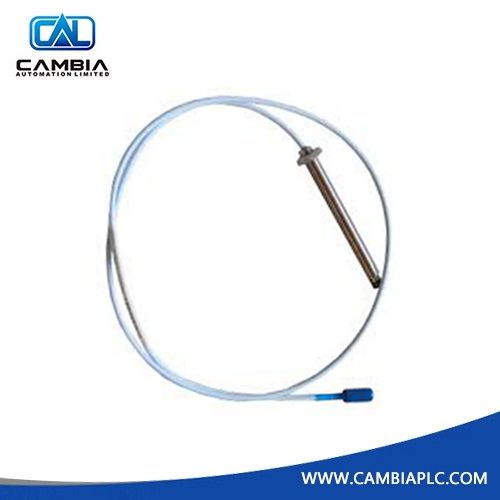

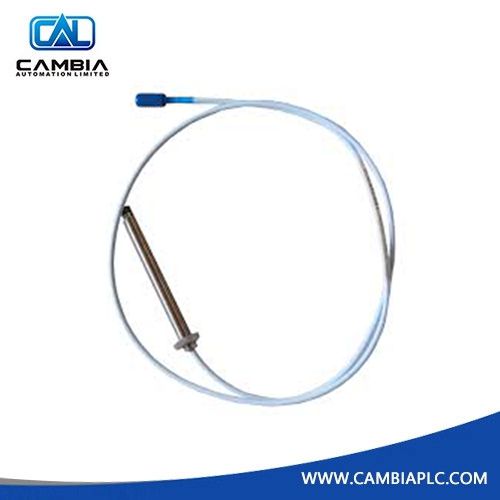

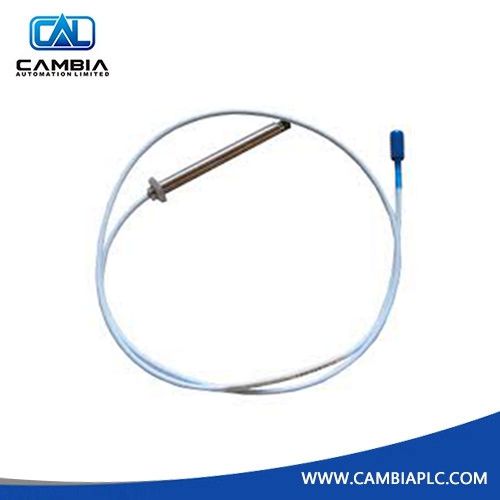

Bently Nevada 330104-00-06-10-02-00 8mm Proximity Probe
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330104-00-06-10-02-00
Product Type: 3300 XL 8mm Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The 330104-00-06-10-02-00 is a high-precision, non-contacting displacement sensor from the Bently Nevada 3300 XL 8mm series, designed to monitor the health of critical rotating machinery. This probe uses eddy current technology to measure shaft vibration, eccentricity, and thrust position, providing real-time diagnostics with sub-millisecond accuracy.
Featuring a fully threaded 60mm case and a 1.0-meter integral cable, the 330104-00-06-10-02-00 is built for industrial durability. Its miniature coaxial ClickLoc connector ensures secure signal transmission, while TipLoc molding and FluidLoc sealing provide additional protection against harsh environments. This unit is manufactured in the USA and is available with a Certificate of Origin (COO) upon request.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330104-00-06-10-02-00 |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm (Fully threaded case) |
| Overall Case Length | 60 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard coaxial cable |
| Agency Approval | 00 (Not required/Standard) |
| Linear Range | 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) with 3300 XL Proximitor |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
Application Scenarios
-
Steam Turbines: Monitoring radial vibration and axial thrust to prevent bearing failure in turbine systems.
-
Centrifugal Compressors: Measuring shaft position and vibration levels in high-speed oil and gas processing.
-
Large Industrial Motors: Assessing shaft eccentricity and thermal growth during startup and operation.
Technical Support FAQ
What is the significance of the "10" total length option?
The "10" option specifies a 1.0-meter probe lead cable. To achieve a 5.0-meter or 9.0-meter calibrated system, it must be paired with an extension cable of 4.0 meters or 8.0 meters, respectively.
Is a connector protector included with the "02" option?
The "02" option includes the miniature coaxial ClickLoc connector with standard cable but does not include a connector protector. If additional protection against moisture is needed at the junction, a separate connector protector should be used.
