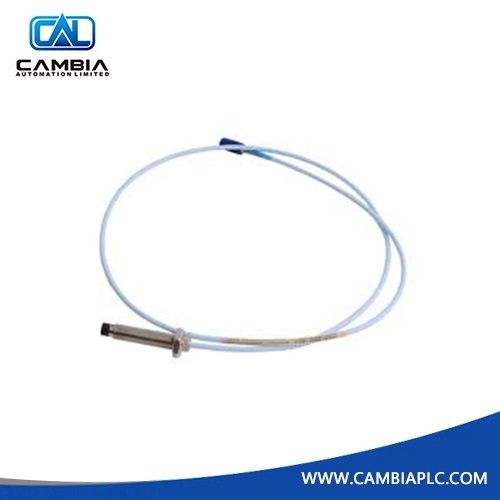

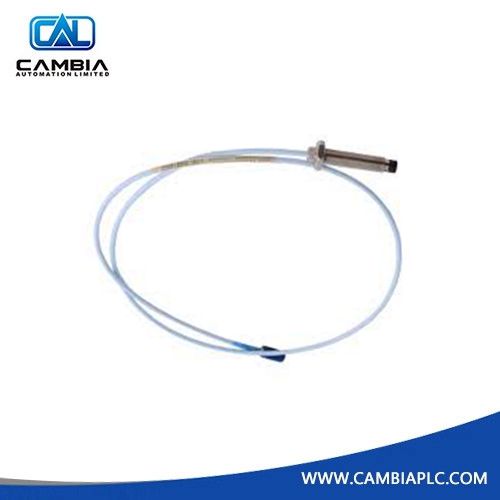

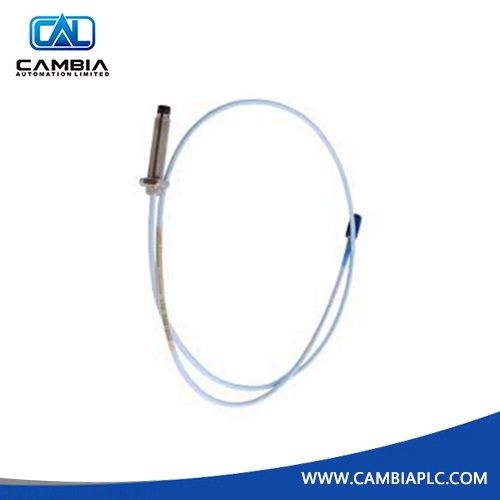

Bently Nevada 330103-00-11-50-02-00 3300 XL 8 mm Proximity Probe
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330103-00-11-50-02-00
Product Type: 3300 XL 8mm Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 920g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The 330103-00-11-50-02-00 is an 8 mm extended-reach proximity probe from the Bently Nevada 3300 XL series, engineered for precision vibration and shaft position monitoring in critical rotating machinery. With a 110 mm threaded stainless steel case and a 5.0-meter total cable length, this probe connects directly to a Proximitor® sensor in short-run installations without the need for an extension cable. Its PPS tip and robust construction ensure reliable performance under high-temperature, high-pressure industrial environments.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-11-50-02-00 |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm (fully threaded) |
| Overall Case Length | 110 mm (Option 11, ≈4.3 in) |
| Total Cable Length | 5.0 m (16.4 ft, Option 50) |
| Connector Type | Miniature coaxial ClickLoc™ connector |
| Agency Approval | Standard / Non-hazardous |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303 / 304 Stainless Steel |
| Linear Range | 2.0 mm (80 mils) |
| Dimensions | 25.2 cm × 2.4 cm × 12.6 cm |
| Weight | 0.92 kg |
Industrial Application Scenarios
-
Monitoring radial vibration and axial (thrust) position on turbines, compressors, and hydroelectric generators
-
Ideal for installations where the probe-to-junction-box distance is significant, eliminating the need for intermediate extension cables
-
Reduces signal attenuation and moisture ingress risks by minimizing connector interfaces
-
Commonly deployed in steam turbines, gas compressors, centrifugal pumps, and other large-scale rotating equipment
Technical FAQs
Can I use this 5.0 m probe with a standard 5.0 m Proximitor?
Yes. This probe can connect directly to a 5.0-meter Proximitor without requiring an extension cable. For a 9.0-meter Proximitor system, a 4.0-meter extension cable would be needed.
Why is this probe heavier than the 1.0 m versions?
The additional weight (0.92 kg) comes from the longer integrated coaxial cable and reinforced packaging required to protect the extended cable during installation and operation.
