Bently Nevada
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330101-00-67-10-12-CN
Product Type: 3300 XL 8 mm Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 380g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

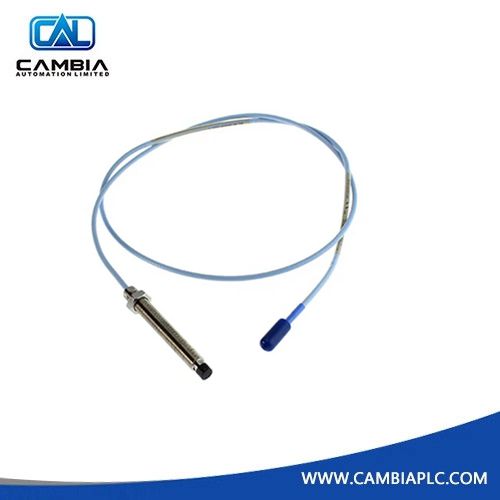

The Bently Nevada 330101-00-67-10-12-CN is a precision 8 mm eddy current proximity probe from the 3300 XL series, designed for critical machinery protection and vibration monitoring. This non-contacting sensor measures the gap between the probe tip and the rotating shaft, delivering high-resolution, real-time data to Integrated Control Systems (ICS) or vibration monitors.
With a 6.7-inch overall case length, a 3/8-24 UNF thread, and a 1.0-meter cable, this probe is ideal for deep-reach mounting through thick machine housings. The fluid-resistant ClickLoc™ connector (Option 12) ensures reliable signal integrity even in high-humidity or oil-mist environments. The -CN suffix indicates compliance with regional Chinese certifications, such as NEPSI and local RoHS standards.
| Parameter | Specification |
|---|---|
| Model Number | 330101 |
| Full Order Code | 330101-00-67-10-12-CN |
| Transducer System | 3300 XL 8 mm |
| Thread Type | 3/8-24 UNF (no armor) |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.7 in (170 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Style | ClickLoc™ miniature coaxial, fluid-resistant (Option 12) |
| Regional Compliance | CN-certified for Chinese regulatory standards |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +351 °F) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | 303/304 Stainless Steel |
| Weight | 0.38 kg |
Fluid-Resistant Connector: Prevents lubricant, coolant, or moisture ingress that can cause signal drift.
Extended Case Length: 6.7-inch body allows mounting through thick housings or specialized brackets.
Full System Interchangeability: Compatible with all 3300 XL Proximitor sensors and extension cables without calibration.
Chemical & Temperature Resistance: PPS tip and stainless steel body resist industrial lubricants, chemicals, and high temperatures.
Gas & Steam Turbines: Axial thrust and radial vibration monitoring on main bearings.
Industrial Compressors: Detects shaft centerline motion and eccentricity.
Pumps & Gearboxes: Early warning for bearing wear and rotor imbalance.
Keyphasor Signals: Provides once-per-revolution timing pulses for speed and phase analysis.
Q: What does the -CN suffix indicate?
A: It denotes compliance with localized Chinese standards, such as NEPSI or regional RoHS requirements.
Q: Can this probe be used in a 5m or 9m system?
A: Yes, but the total probe + extension cable length must match the system. For a 1.0 m probe: use a 4.0 m extension cable for a 5 m system or an 8.0 m extension cable for a 9 m system.
Q: Is the ClickLoc connector compatible with standard installation tools?
A: Yes. The ClickLoc™ connector is designed to be finger-tightened until the locking mechanism clicks. Standard Bently Nevada connector protectors and tools are recommended for final installation.
