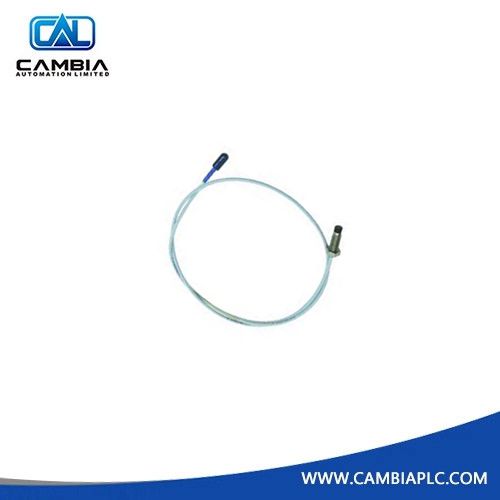

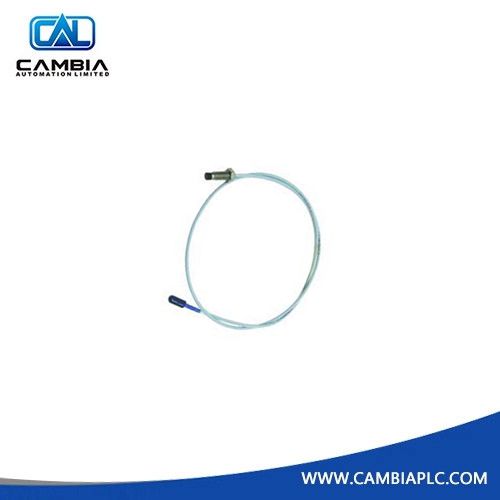

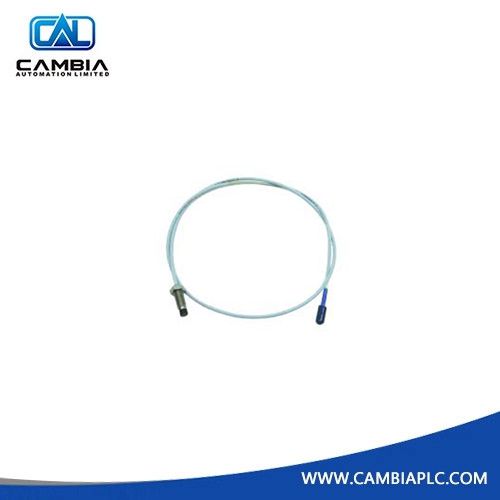

Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe

Bently Nevada

Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe

In stock, ready to ship

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-20-10-02-CN

  • Product Type: 3300 XL 8 mm Proximity Probe

  • Product Origin: USA

  • Payment: T/T

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe

Product Description

The 330101-00-20-10-02-CN is a high-precision 8 mm eddy-current proximity probe from the Bently Nevada 3300 XL Series, engineered for industrial machinery protection. It measures shaft vibration, axial position, and Keyphasor speed on fluid-film bearing machines. This probe features a 3/8-24 UNF thread, 2.0-inch case length, and a miniature coaxial ClickLoc™ connector, supplied without protective armor for standard installations. Constructed with a PPS probe tip and stainless steel body, it ensures chemical resistance and thermal stability in harsh environments. The “CN” suffix indicates compliance with regional standards such as NEPSI for China.

Technical Specifications

Parameter Specification
Model 330101 XL 8 mm Probe
Operating Temp -51°C to +177°C
Weight 0.323 kg

Application

  • Rotating Machinery Protection: Continuous vibration monitoring for turbines, compressors, and generators.

  • Axial Position Monitoring: Measuring shaft thrust to prevent internal contact.

  • Speed & Phase Reference: Generating Keyphasor signals for RPM measurement and synchronous data acquisition.

  • Condition-Based Maintenance: Integration with 3500 Series systems for predictive maintenance programs.

FAQ

Can this probe replace older 3300 series probes?
Yes, the 3300 XL 8 mm probes are backward-compatible with older 3300 5 mm and 8 mm versions.

Does this probe require a specific extension cable?
Yes, pair this 1-meter probe with the appropriate 4 m or 8 m 3300 XL extension cable and Proximitor sensor to maintain system length.

What is the benefit of the ClickLoc™ connector?
The gold-plated ClickLoc™ connector locks securely, preventing it from vibrating loose in high-vibration industrial environments.
